Mean Well KNX-20E-640 Installation Manual

Introduction

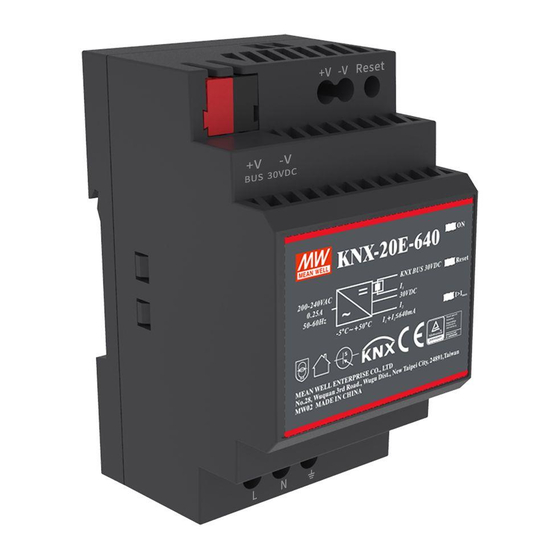

The KNX Power Supply KNX-20E-640 is a 640mA power supply with high efficiency and a small footprint of only 3SU (52.5mm). The
device has a KNX bus choke output and an additional output for ancillary power. The
can meet all kinds of applications. LED indicators are used in case of normal operation, overload conditions and RESET operation. It is
perfectly suitable to power up any products labeled with the KNX trademark.
Features
EIB/ KNX power supply with integrated choke
•
Compact size with 3US (52.5mm) width
•
Safety extra low voltage (SELV)
•
180 ~ 264Vac input
•
No load power consumption < 0.5W
•
200ms mains failure back-up time
•
Protections: Short circuit/ Overload (short-circuit-proof)/ Over voltage
•
Display
The device is equipped with a reset push button, three LEDs and terminal blocks for the AC, KNX bus line and
1 KNX bus terminal (Red : BUS +V, Black : BUS -V)
2 Ancillary power terminal
3 RESET button
4 Power ON (Green)
5 Reset (Red)
Ⅰ> Ⅰ
(Red)
6
max
7
AC terminal (L,N,
KNX-20E-640 Installation Manual
)
http://www.meanwell.com
-5℃ ~ +50℃
Cooling by free air convection
•
Isolation classⅠ
•
LED indicator for normal operation, bus reset and bus overload
•
Installed on DIN TS-35/7.5 or 15
•
3 years warranty
•
wide temperature operating range
ancillary output.
