Mean Well DDR-120 Series Installation Manual

 Type： DDR DIN rail power supply（Series：DDR-120）
DDR-120A-12
DDR-120A-24
DDR-120A-48
DDR-120B-12
DDR-120B-24
DDR-120B-48
DDR-120C-12
DDR-120C-24
DDR-120C-48

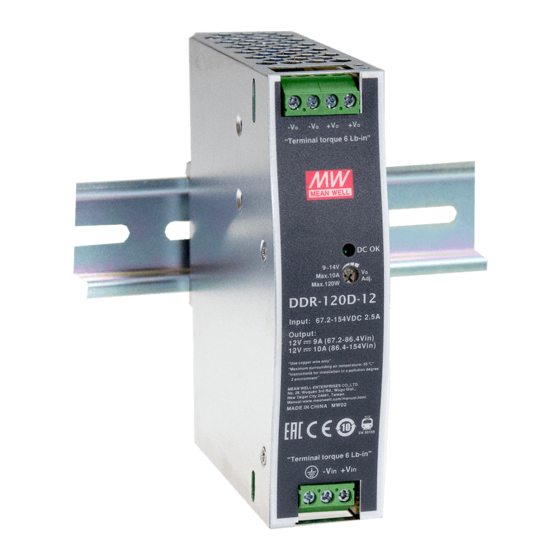

DDR-120D-12
DDR-120D-24
DDR-120D-48
 Introduction
DDR series is a DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra
slim width, 2:1 wide input voltage, fanless design, -40~+70℃ wide operating temperature, 150% peak load,
adjustable output voltage and full protective functions.
This series of models has various input options: 9~18V / 16.8~33.6V / 33.6~67.2V / 67.2~154V and various output
options: 12V / 24V / 48V and can be used for industrial & railway control, security control, communication system
and other fields. Suitable applications include DC buck/boost regulator, increasing system insulation level and
voltage drop compensation along cable...etc.
Installation Manual
INPUT: 9~18VDC 13.5A
INPUT: 9~18VDC 13.5A
INPUT: 9~18VDC 13.5A
INPUT: 16.8~33.6VDC 9A
INPUT: 16.8~33.6VDC 9A
INPUT: 16.8~33.6VDC 9A
INPUT: 33.6~67.2VDC 4.5A
INPUT: 33.6~67.2VDC 4.5A
INPUT: 33.6~67.2VDC 4.5A
INPUT: 67.2~154VDC 2.5A
INPUT: 67.2~154VDC 2.5A
INPUT: 67.2~154VDC 2.5A
OUTPUT: 12V 7.1A (9~10.8Vin)
12V 8.3A (10.8~18Vin)
OUTPUT: 24V 3.6A (9~10.8Vin)
24V 4.2A (10.8~18Vin)
OUTPUT: 48V 1.8A (9~10.8Vin)
48V 2.1A (10.8~18Vin)
OUTPUT: 12V 9A (16.8~21.6Vin)
12V 10A (21.6~33.6Vin)
OUTPUT: 24V 4.5A (16.8~21.6Vin)
24V 5A (21.6~33.6Vin)
OUTPUT: 48V 2.3A (16.8~21.6Vin)
48V 2.5A (21.6~33.6Vin)
OUTPUT: 12V 9A (33.6~43.2Vin)
12V 10A (43.2~67.2Vin)
OUTPUT: 24V 4.5A (33.6~43.2Vin)
24V 5A (43.2~67.2Vin)
OUTPUT: 48V 2.3A (33.6~43.2Vin)
48V 2.5A (43.2~67.2Vin)
OUTPUT: 12V 9A (67.2~86.4Vin)
12V 10A (86.4~154Vin)
OUTPUT: 24V 4.5A (67.2~86.4Vin)
24V 5A (86.4~154Vin)
OUTPUT: 48V 2.3A (67.2~86.4Vin)
48V 2.5A (86.4~154Vin)
