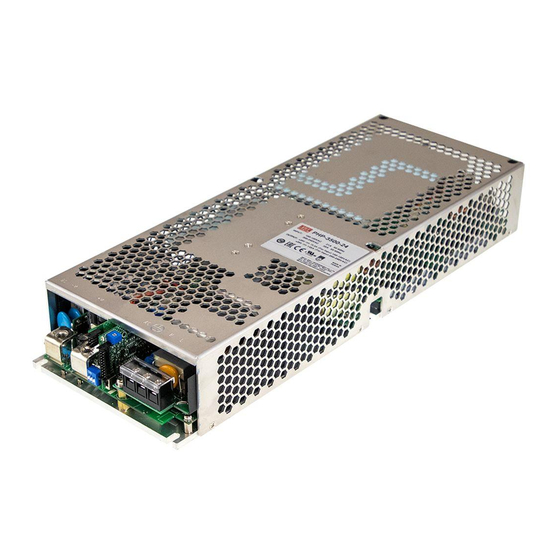

PHP-3500
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHP-3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mean Well PHP-3500

Summary of Contents for Mean Well PHP-3500

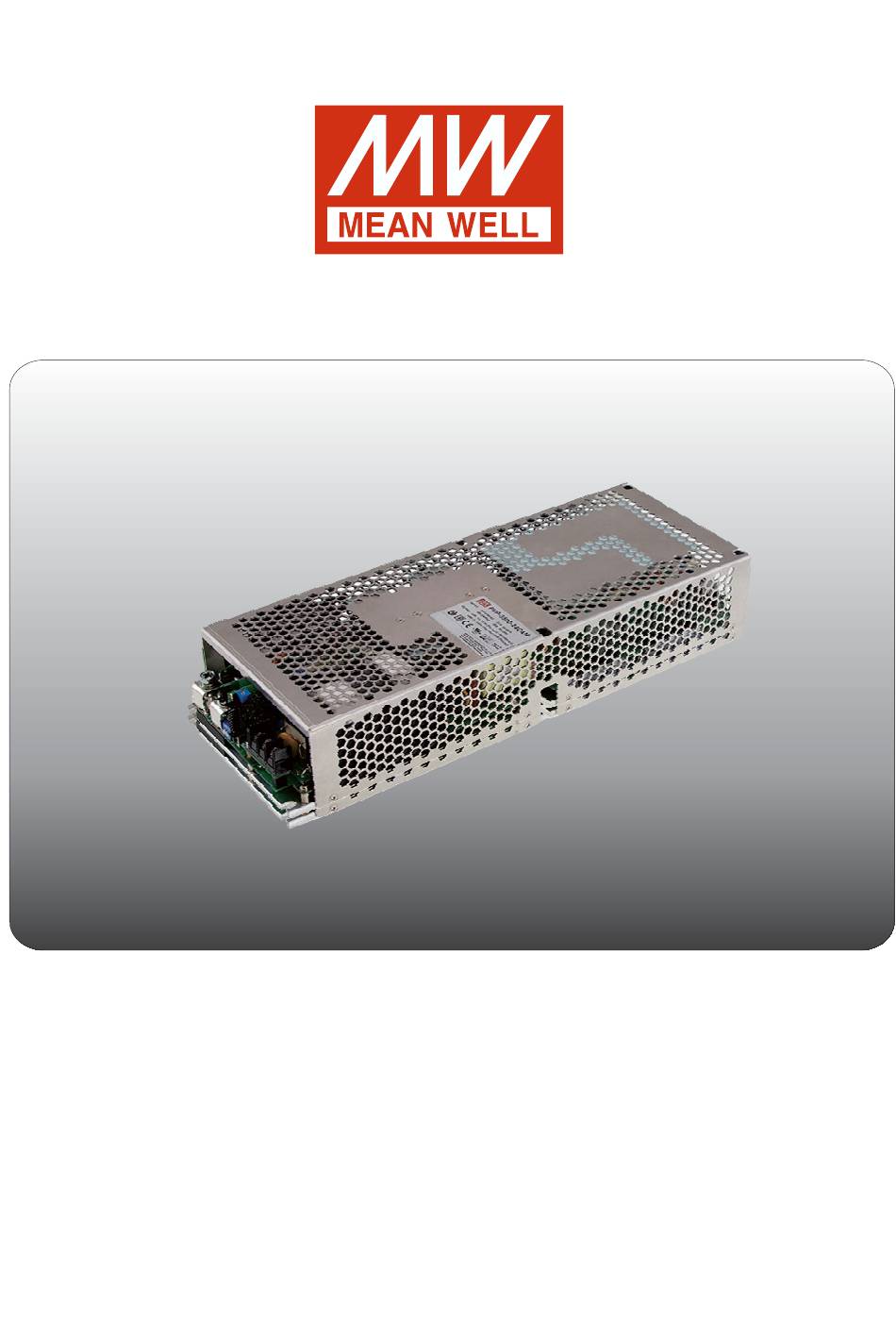

  • Page 1 PHP-3500 User's Manual...

  • Page 2: Table Of Contents

    ......................0. Safety Guidelines ........................1 Introduction ......................... 1.1 Introduction ........................1.2 Features ......................1.3 Order Information ......................1.4 Main Specification ..........2 Mechanical Specification and Input/Output Terminals ........................2.1 Mechanism ........................3.Functions ....................... 3.1 Input Voltage Range ....................3.2 Inrush Current Limiting .........................

  • Page 3: Safety Guidelines

    145A (For Input 200-240VAC) 73A (For Input 200-240VAC) +24V +48V Bauar t gepruft Bauar t gepruft MADE IN MADE IN Sicherheit Sicherheit egel egel TAIWAN TAIWAN E183223 E183223 www. tuv.com www. tuv.com ID 2000000000 ID 2000000000 Figure 1-1 PHP-3500 Safety label sticker...

  • Page 4: Main Specification

    Main Specification MODEL PHP-3500-24 PHP-3500-48 DC VOLTAGE RATED CURRENT 145A RATED POWER (convection) 3480W 3504W RIPPLE & NOISE (max.) 300mVp-p 480mVp-p Note.2 By built-in potentiometer, SVR VOLTAGE ADJ. RANGE 48~57.6V OUTPUT 24~28.8V ±1.0% ±1.0% VOLTAGE TOLERANCE Note.3 ±0.5% ±0.5% LINE REGULATION ±0.5%...

  • Page 5: Mechanical Specification And Input/Output Terminals

    ; under this condition, the unit still operates normally without entering Red Flashing OT . (In the meantime, an alarm signal will be sent out through the PMBus CANBus interface.) Abnormal status (Over temperature protection, Overload protection, Fan fail.) LED Status Indicator Figure 2-2 PHP-3500 terminal illustration...

  • Page 6: Functions

    After turning off the supply, a 10 second cool down period is recommended before turning them on again. Output Power PHP-3500-24 : 3480W (24V / 145A) PHP-3500-48 : 3504W (48V / 73A) Power Factor Correction (PFC) ◎...

  • Page 7: Output Voltage/Current Adjustment

    Relationship between output current and external DC source is shown as below. Iout Non-Linear External voltage (VDC) Note: The PHP-3500 will trigger OLP to shut down itself if the output stays at constant current level condition for more than 5 seconds.

  • Page 8: Short-Circuit And Over-Current Protection

    ◎ Maximum input voltage: 13.2V CN47 Between CN1 ON/OFF and +12V-AUX Output ON/OFF SW Open PHP-3500 SW Short +12V-AUX Figure 3-3 Connection of Remote Control 3.11 Parallel Operation ◎ Parallel operation is only suitable for the identical units (with the same model and the same output voltage/current) ◎...

  • Page 9: Auxiliary Power

    PHP-3500 unit, as shown in the description below. A0- A2 allow users to designate an address for PHP-3500 units; these three bits are defined through a 3-pole DIP switch on the terminal end of the unit.
  • Page 10 3.1 . 3 5 PMBus Command List ◎ The command list of the PHP-3500 is shown in Table3-2. It is compliant with the standard protocol of PMBus Rev 1.1. For more detailed information, please refer to PMBus official website http://pmbus.org/specs.html) Command...
  • Page 11 Command Command Transaction # of data Description Code Name Type Bytes MFR_MODEL Block Read Manufacturer's model name MFR_REVISION Block Read Firmware revision MFR_LOCATION Block R/W Manufacturer's factory location MFR_DATE Block R/W Manufacture date. (format: YYMMDD) MFR_SERIAL Block R/W Product serial number SYSTEM_CONFIG R/W Word System setting...
  • Page 12 3.1 . 3 3 PMBus Data Range and Tolerance ◎ Display parameters PMBus command Model Range Tolerance ±10V READ_VIN 80 ~ 264V ±0.24V 0 ~ 28.8V READ_VOUT ±0.48V 0 ~ 57.6V ±6A 0 ~ 180A READ_IOUT (Note. 1) ±3A 0 ~ 90A ±...

  • Page 13: Canbus Communication Interface

    The host system uses the following equation to convert the value received from the PMBus device into a reading of volts, amperes, degrees Celsius or other units as appropriate: b.Sending A Value ◎ Please refer to the specification about PV/PC or SVR function 3.14 CANBus Communication Interface ◎ For further CAN bus information, please contact MEAN WELL...

  • Page 14: Notes On Operation

    325mm Table 4-1 Suggested wire selection for input/output wirings Derating ◎ When PHP-3500 is operating at a lower AC input voltage, the unit will derate its output current automatically to protect itself, shown as Figure 4-2. 230VAC Input only 230VAC...

  • Page 15: External Filter

    4. External filter 4.3.1 Configration PHP-3500 LOAD FILTER AC Utility 4.3.2 Schematic LINE LOAD 0.6mH 1.0uF 10000pF Ω 4.3.3 Minimum insertion loss (In dB at 50 system) FREQ. MHz 0.01 0.05 0.10 0.15 0.50 COM. MODE dB DIF. MODE dB Note : Need additional EMI filter to meet regulations of EMC conducted and radiated emission.

  • Page 16: Warranty

    M5*6 Optional MEAN WELL cold plate is ready for order, Ordering No.: HS-656 Warranty ◎ A five year global warranty is provided under normal operation. Please do not change any component or modify the unit by yourself or MEANWELL may reserve the right not to provide the complete warranty service.
  • Page 17 N o . 2 8 , W u q u a n 3 r d R d . , W u g u D i s t . , N e w Ta i p e i C i t y 2 4 8 , Ta i w a n...

This manual is also suitable for:

Php-3500-24Php-3500-48
