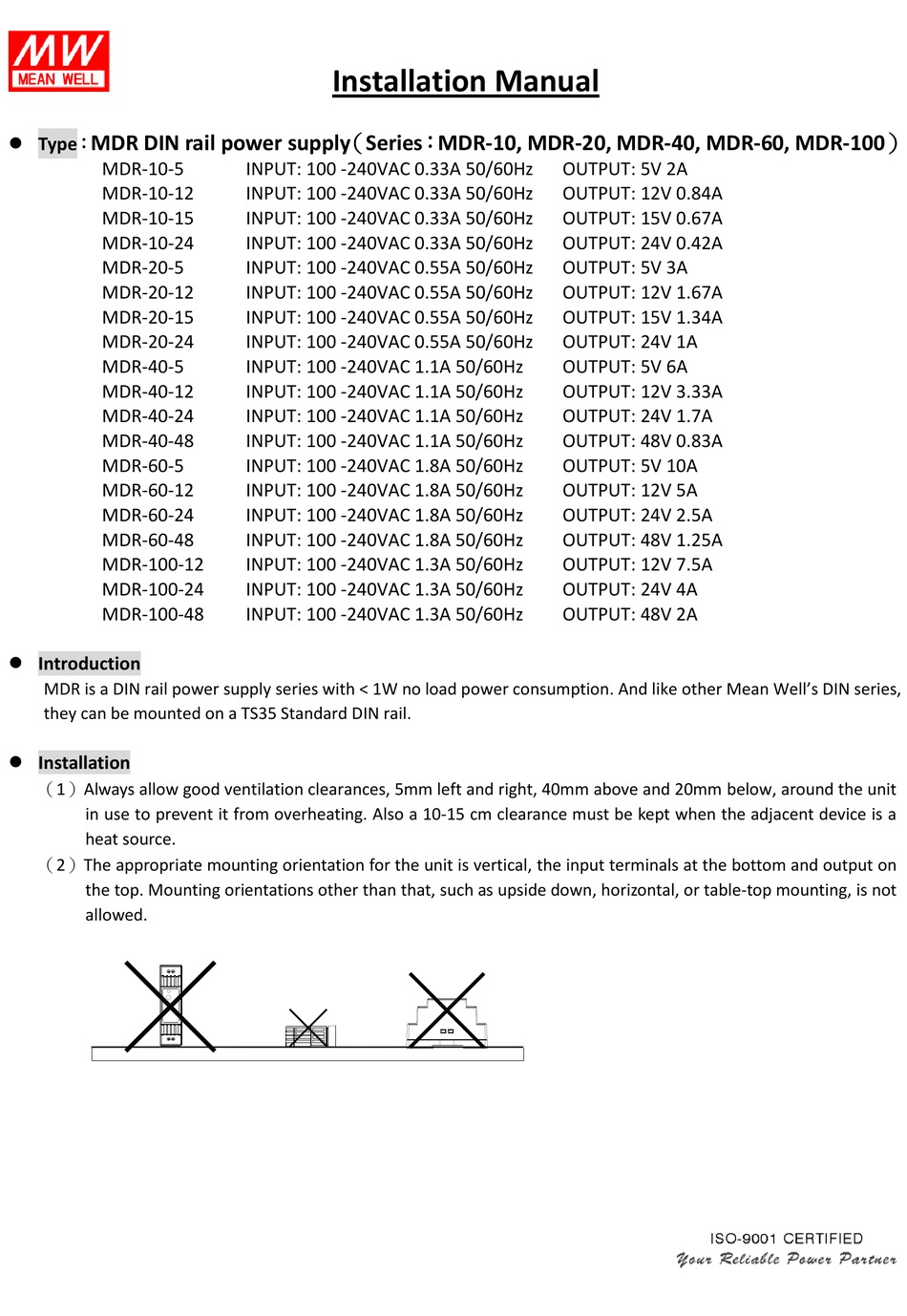

MDR DIN rail power supply (Series:MDR-10, MDR-20, MDR-40, MDR-60, MDR-100)
 Type:
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24
MDR-20-5
MDR-20-12
MDR-20-15
MDR-20-24
MDR-40-5
MDR-40-12
MDR-40-24
MDR-40-48
MDR-60-5
MDR-60-12
MDR-60-24
MDR-60-48
MDR-100-12
MDR-100-24
MDR-100-48
 Introduction

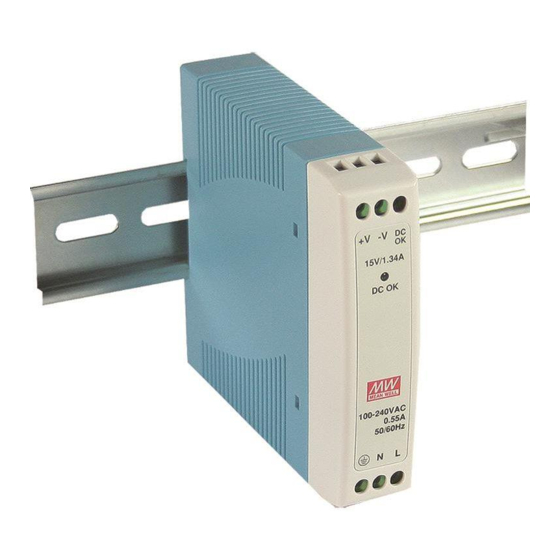

MDR is a DIN rail power supply series with < 1W no load power consumption. And like other Mean Well's DIN series,
they can be mounted on a TS35 Standard DIN rail.
 Installation
(1)Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit
in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device is a
heat source.
(2)The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on
the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not
allowed.
Installation Manual
INPUT: 100 -240VAC 0.33A 50/60Hz
INPUT: 100 -240VAC 0.33A 50/60Hz
INPUT: 100 -240VAC 0.33A 50/60Hz
INPUT: 100 -240VAC 0.33A 50/60Hz
INPUT: 100 -240VAC 0.55A 50/60Hz
INPUT: 100 -240VAC 0.55A 50/60Hz
INPUT: 100 -240VAC 0.55A 50/60Hz
INPUT: 100 -240VAC 0.55A 50/60Hz
INPUT: 100 -240VAC 1.1A 50/60Hz
INPUT: 100 -240VAC 1.1A 50/60Hz
INPUT: 100 -240VAC 1.1A 50/60Hz
INPUT: 100 -240VAC 1.1A 50/60Hz
INPUT: 100 -240VAC 1.8A 50/60Hz
INPUT: 100 -240VAC 1.8A 50/60Hz
INPUT: 100 -240VAC 1.8A 50/60Hz
INPUT: 100 -240VAC 1.8A 50/60Hz
INPUT: 100 -240VAC 1.3A 50/60Hz
INPUT: 100 -240VAC 1.3A 50/60Hz
INPUT: 100 -240VAC 1.3A 50/60Hz
OUTPUT: 5V 2A
OUTPUT: 12V 0.84A
OUTPUT: 15V 0.67A
OUTPUT: 24V 0.42A
OUTPUT: 5V 3A
OUTPUT: 12V 1.67A
OUTPUT: 15V 1.34A
OUTPUT: 24V 1A
OUTPUT: 5V 6A
OUTPUT: 12V 3.33A
OUTPUT: 24V 1.7A
OUTPUT: 48V 0.83A
OUTPUT: 5V 10A
OUTPUT: 12V 5A
OUTPUT: 24V 2.5A
OUTPUT: 48V 1.25A
OUTPUT: 12V 7.5A
OUTPUT: 24V 4A
OUTPUT: 48V 2A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Mean Well MDR Series

  • Page 1 INPUT: 100 -240VAC 1.3A 50/60Hz OUTPUT: 48V 2A  Introduction MDR is a DIN rail power supply series with < 1W no load power consumption. And like other Mean Well’s DIN series, they can be mounted on a TS35 Standard DIN rail.  Installation (1)Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit...
  • Page 2 Installation Manual (3)Use copper wire only, and recommended wires are shown as below. Rated Current of 6-10A 13-16A 16-25A Equipment (Amp) Cross-section of 0.75 1.00 Lead(mm Note:Current each wire carries should be de-rated to 80% of the current suggested above when using 5 or more wires connected to the unit. Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are securely fixed to prevent poor contact.
  • Page 3 Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as control cabinets. Manufacturer: MEAN WELL ENTERPRISES Co., LTD. No.28, Wuquan 3rd Rd., Wugu Dist., New Taipei City 24891, Taiwan Tel: +886-2-2299-6100 Web: www.meanwell.com Branch Office:...
  • Page 4 In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL is confirming and announcing the conformity to China RoHS, an Administrative Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products.
  • Page 5 Declaration of China VOC Conformity In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL is confirming and announcing the conformity to China’s Standardization Administration Releases VOC Standards Standard No.
  • Page 6 Declaration of Five PBT TSCA Conformity In order to reduce the impacts on the environment and take the more responsibility for protecting the earth, MEAN WELL hereby confirms that MEAN WELL product series comply with Use and Risk Management for Five PBT Chemicals under TSCA section 6(h) CAS No.

This manual is also suitable for:

Mdr-10 seriesMdr-20 seriesMdr-40 seriesMdr-60 seriesMdr-100 seriesMdr-10-5 ... Show all
