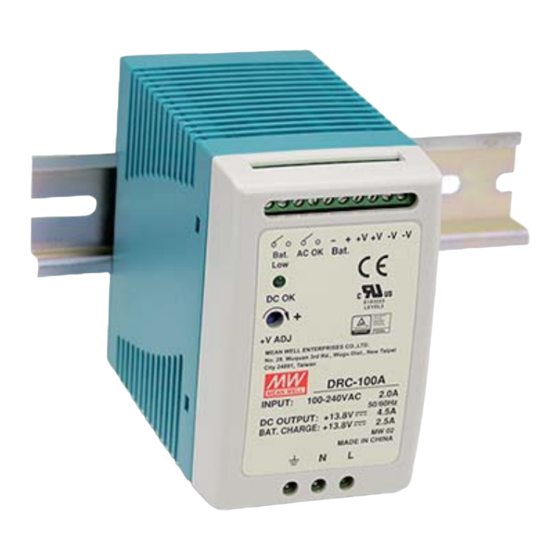

100W Single Output with Battery Charger (UPS Function)
■ Features
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low
protection
by fuse
Can be installed on DIN rail TS-35/7.5 or 15
Alarm signal for AC OK and Battery low (via relay)
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
3 years warranty
■ Description
DRC-100 is a 96W AC/DC DIN rail type security power supply series. In addition to the primary output, there
is a charger output with a smaller rated current, enabling the backup power supply application the security
access systems require. DRC-100 accepts the universal input between 90VAC and 264VAC, and supplies
13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 89%, it can operate with air convection
cooling under -30
over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm
signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.
■ Model Encoding
DRC - 100
A
/ Battery reverse polarity protection
through 70 . In addition to the key protection features such as overload protection,
Output voltage
Output wattage
Series name
D R C - 1 0 0
UL62368-1
BS EN/EN62368-1
AS/NZS60950-1
■ Applications
Security system
Emergency lighting system
Alarm system
DC UPS system
Central monitoring system
Access systems
■ GTIN CODE
MW Search:
s e r i e s
Bauar
t gepruft
Sicherheit
egel
ma
ge
od
o s
be
wac
g
www.
tuv.com
ID 2000000000
IEC62368-1
TPTC004
https://www.meanwell.com/serviceGTIN.aspx
File Name:DRC-100-SPEC 2024-01-26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRC-100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Mean Well DRC-100 Series

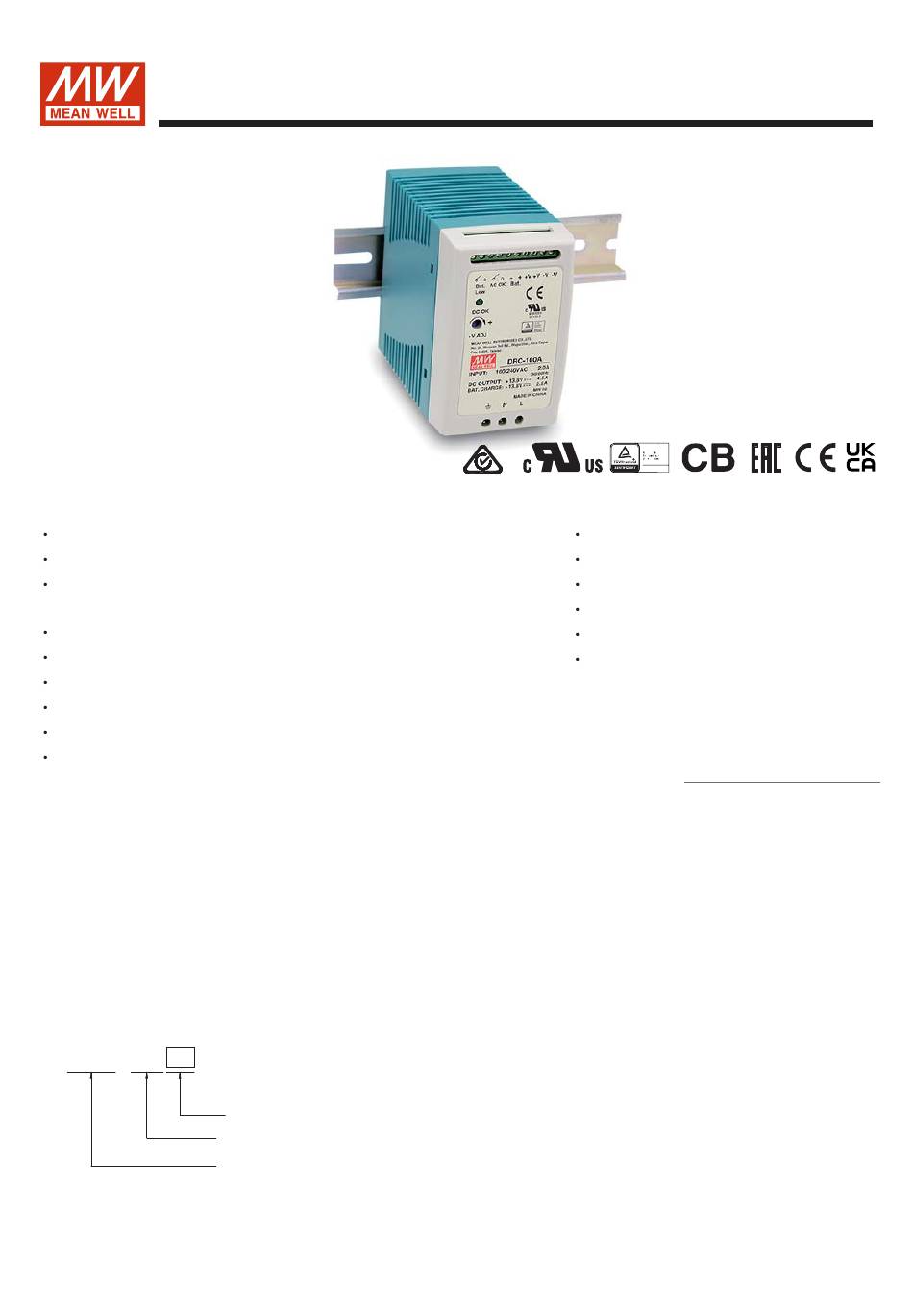

  • Page 1 D R C - 1 0 0 100W Single Output with Battery Charger (UPS Function) s e r i e s Bauar t gepruft Sicherheit egel www. tuv.com ID 2000000000 UL62368-1 BS EN/EN62368-1 IEC62368-1 TPTC004 AS/NZS60950-1 ■ Features ■ Applications Universal AC input / Full range Security system Protections: Short circuit / Overload / Over voltage...
  • Page 2: Specification

    D R C - 1 0 0 100W Single Output with Battery Charger (UPS Function) s e r i e s SPECIFICATION MODEL DRC-100A DRC-100B OUTPUT NUMBER DC VOLTAGE 13.8V 13.8V 27.6V 27.6V RATED CURRENT 4.5A 2.5A 2.25A 1.25A CURRENT RANGE 0 ~ 7A -------- 0 ~ 3.5A...
  • Page 3: Static Characteristics

    D R C - 1 0 0 100W Single Output with Battery Charger (UPS Function) s e r i e s Block Diagram AC OK ALARM CIRCUIT Bat. Low EMI FILTER RECTIFIERS POWER & & SWITCHING RECTIFIER FILTER Bat. + DETECTION Bat.
  • Page 4 D R C - 1 0 0 100W Single Output with Battery Charger (UPS Function) s e r i e s Suggested Application 1.Backup connection for AC interruption (1) Please refer to Fig1.1 for suggested connection. The power supply charges the battery and provides energy to the load at the same time when AC mains is OK. The battery starts to supply power to the load when AC mains fails.
  • Page 5: Mechanical Specification

    D R C - 1 0 0 100W Single Output with Battery Charger (UPS Function) s e r i e s Mechanical Specification Case No.973A Unit:mm 3.81x9 DC OK +V ADJ Terminal Pin No. Assignment (TB1): Pin No. Assignment AC/L or DC+ AC/N or DC- Terminal Pin No.
