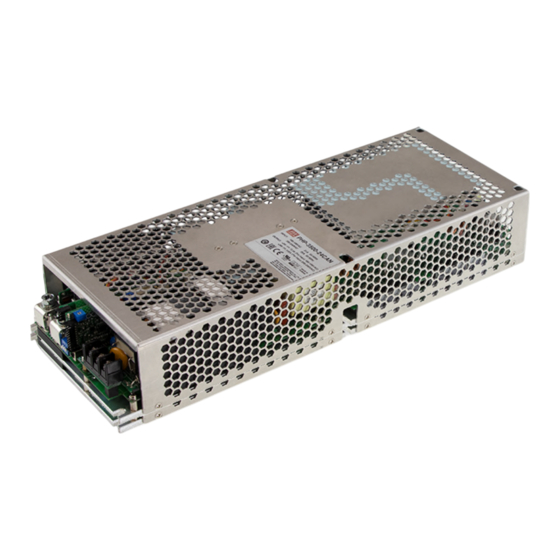

PHP-3500
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHP-3500 and is the answer not in the manual?

Questions and answers

Related Manuals for Mean Well PHP-3500

Summary of Contents for Mean Well PHP-3500

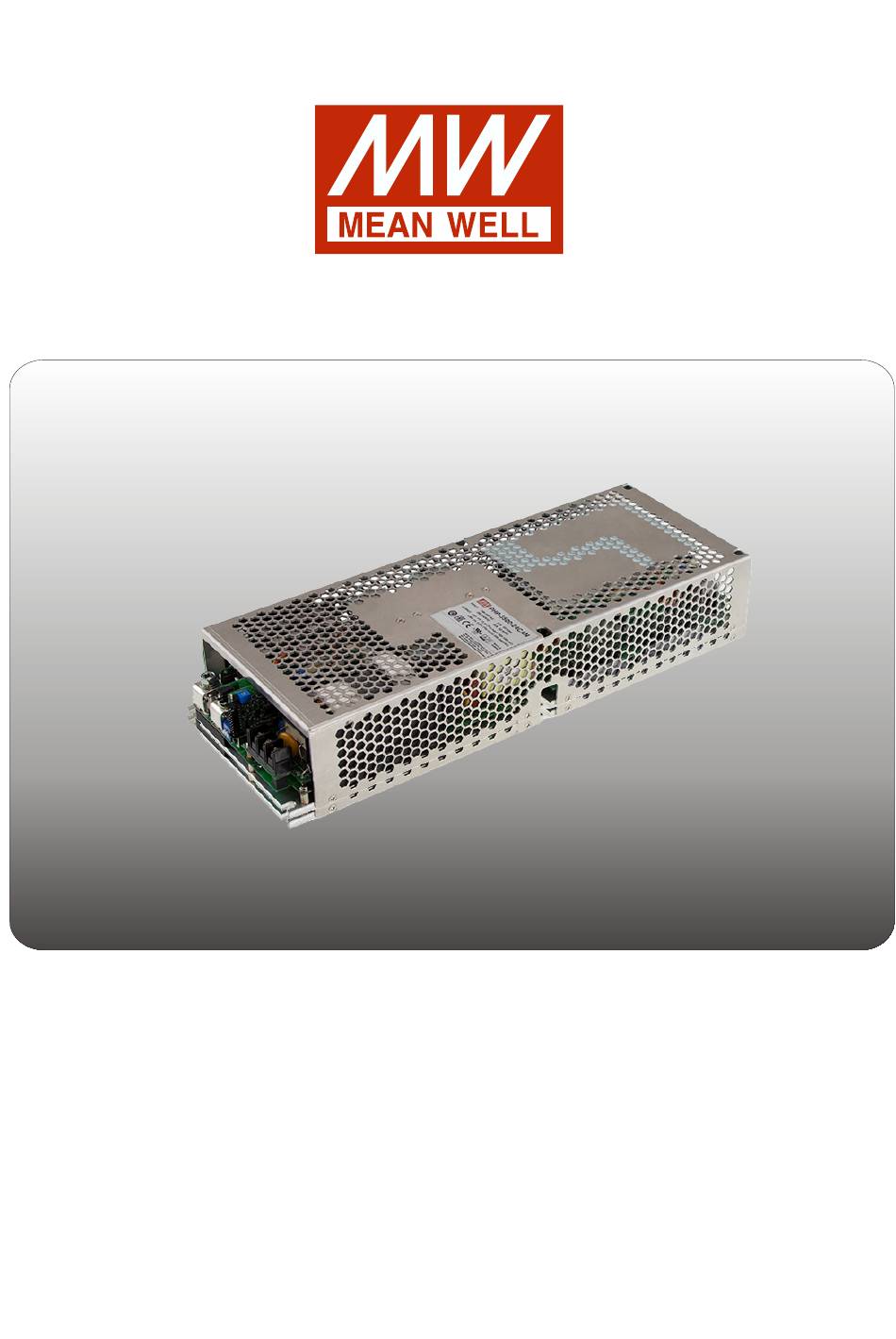

  • Page 1 PHP-3500 User's Manual...

  • Page 2: Table Of Contents

    ......................0. Safety Guidelines ........................1 Introduction ......................... 1.1 Introduction ........................1.2 Features ......................1.3 Order Information ......................1.4 Main Specication ..........2. Mechanical Specication and Input/Output Terminals ........................2.1 Mechanism ........................3.Functions ....................... 3.1 Input Voltage Range ....................3.2 Inrush Current Limiting .........................

  • Page 3: Safety Guidelines

              Bauar t gepruft Bauar t gepruft   Sicherheit Sicherheit egel egel     www. tuv.com www. tuv.com ID 2000000000 ID 2000000000 Figure 1-1 PHP-3500 Safety label sticker...

  • Page 4: Main SpeciCation

    Main Specication MODEL PHP-3500-24 PHP-3500-48 DC VOLTAGE RATED CURRENT 145A RATED POWER 3480W 3504W RIPPLE & NOISE (max.) 300mVp-p 480mVp-p Note.2 By built-in potentiometer, SVR VOLTAGE ADJ. RANGE 48~57.6V OUTPUT 24~28.8V ±1.0% ±1.0% VOLTAGE TOLERANCE Note.3 ±0.5% ±0.5% LINE REGULATION ±0.5%...

  • Page 5: Mechanical SpeciCation And Input/Output Terminals

    85℃; under this condition, the unit still operates normally without entering Red (Flashing) OTP. (In the meantime, an alarm signal will be sent out through the PMBus /CANBus interface.) Abnormal status (Over temperature protection, Overload protection, Fan fail.) LED Status Indicator Figure 2-2 PHP-3500 terminal illustration...

  • Page 6: Functions

    After turning off the supply, a 10 second cool down period is recommended before turning them on again. Output Power PHP-3500-24 : 3480W (24V / 145A) PHP-3500-48 : 3504W (48V / 73A) Power Factor Correction (PFC) ◎...

  • Page 7: Output Voltage/Current Adjustment

    Relationship between output current and external DC source is shown as below. Iout Non-Linear External voltage (VDC) Note: The PHP-3500 will trigger OLP to shut down itself if the output stays at constant current level condition for more than 5 seconds.

  • Page 8: Short-Circuit And Over-Current Protection

    ◎ Maximum input voltage: 13.2V CN47 Between CN1 ON/OFF and +12V-AUX Output ON/OFF SW Open PHP-3500 SW Short +12V-AUX Figure 3-3 Connection of Remote Control 3.11 Parallel Operation ◎ Parallel operation is only suitable for the identical units (with the same model and the same output voltage/current) ◎...

  • Page 9: Auxiliary Power

    2. All written parameters of commands: PM: 01h, 22h and 46h; CAN: 0x0000, 0x0020 and 0x0030 are saved into EEPROM and take effect after the digital is activated. PMBus Addressing and CAN ID setting ◎Each PHP-3500 unit should have their unique and own device address to communicate over the bus. *PMbus 7-bit addressing denition: *CAN message ID denition :...

  • Page 10: Pmbus Command List

    DIP switch position Table 4-1 PMBus Command List ◎The command list of the PHP-3500 is shown in Table 4-2. It is compliant with the standard protocol of PMBus Rev 1.1. For more detailed information, please refer to PMBus official website http://pmbus.org/specs.html) Command...
  • Page 11 Command Command Transaction # of data Description Code Name Type Bytes MFR_DATE Block R/W Manufacture date. (format: YYMMDD) MFR_SERIAL Block R/W Product serial number SYSTEM_CONFIG R/W Word System setting SYSTEM_STATUS Read Word System status Note: Setting commands with at the end support the EEP_OFF function. For detailed information on how to enable them, please refer to SYSTEM_CONFIG (BEh).
  • Page 12 2.When using PMBus to adjust output voltage, VOUT_COMMAND only can be used to display the rated voltage of the unit and cannot be written. It is VOUT_ TRIM that provides voltage trimming function. Take PHP-3500-24 as an examples, to get a 12V output, please set value of VOUT_TRIM to -12V.
  • Page 13 Notes on PMBus 4.2.2 1. Insert a at least 50msec delay between commands 2. Examples for Format Conversion : (1) LINEAR16 format：VOUT_COMMAND、VOUT_TRIM、READ_VOUT、CURVE_CV、CURVE_FV。 Actual voltage = communication reading V × 2 . There are two denitions in the VOUT_MODE command that refer to N requirements.
  • Page 14 2.Connect the SDA/SCL/GND to SDA(pin 21), SCL(pin 19) and GND-AUX(S)(pin 17) of CN55. ◎ et speed: 100KHz SDA(CN55) Controllor SCL(CN55) PHP-3500 GND-AUX(S)(CN55) 3.Communication function can be accessed immediately after PHP-3500 is connected to AC. First set it to communication mode. Address(7 bit) Operation Command Code Data 0x40 Write...

  • Page 15: Canbus Communication Interface

    Data filed bytes COMD. low byte COMD. high byte PHP-3500 to Controller Response: Data filed bytes ..COMD. low byte COMD. high byte Data low 1 Data high 6 NOTE: PHP-3500 will not send data back when writing parameters, such as VOUT_SET...
  • Page 16 4.3.1 CANBus Command list Command Command Transaction # of data Description Code Name Type Bytes ON/OFF control 0x0000 OPERATION ON: 01h OFF: 00h Output voltage set 0x0020 VOUT_SET (format: value, F=0.01) Output current set 0x0030 IOUT_SET (format: value, F=0.01) 0x0040 FAULT_STATUS Abnormal status Input voltage read value...
  • Page 17 4.3.2 Denition and contents of CANBus Command list ◎Definition of Command FAULT_STATUS(0x0040)： Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 High byte Low byte HI_TEMP OP_OFF AC_FAIL SHORT Low byte Bit 1 OTP：Over temperature protection 0   ＝Internal temperature normal 1＝Internal temperature abnormal Bit 2 OVP：DC over voltage protection 0＝DC voltage normal...
  • Page 18 ◎MFR_MODEL_B0B5 (0x0082) is the first 6 codes of the manufacturer's model name (ASCII); MFR_MODEL_B6B11 (0x0083) is the last 6 codes of the manufacturer's model name (ASCII) EX: Model names is PHP-3500-48 → MFR_MODEL_B0B5 is PHP-35；MFR_MODEL_ B6B11 is 00-48 MFR_MODEL_B0B5 Byte 0...
  • Page 19 ◎SCALING_FACTOR(0x00C0)： Bit7~Bit0 byte4~5 Reserved Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 byte3 Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 byte2 TEMPERATURE_1 Factor Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 byte1 VIN Factor Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0...
  • Page 20 (0x00C1) ： ◎SYSTEM_STATUS Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 High byte INITIA- Low byte EEPER ADL_ON PFC_OK DC_OK LSTATE Low byte : Bit 0: M/S : Parallel mode status 0＝Current device is Slave 1＝Current device is Master Bit 1 DC_OK：Secondary DD output voltage status 0＝Secondary DD output voltage status TOO LOW 1＝Secondary DD output voltage status NORMAL...
  • Page 21 4.3.3 CANBus Value Range and Tolerance ◎Display parameters CANBus command Model Display value range Tolerance ±10V 0x0050 READ_VIN 80 ~ 264V ±0.24V 0 ~ 28.8V 0x0060 READ_VOUT ±0.48V 0 ~ 57.6V ±6A 0 ~ 180A READ_IOUT 0x0061 (Note. 1) ±3A 0 ~ 90A ±5℃...
  • Page 22 CANH CANH(CN55) PHP-3500 Controllor 120Ω 120Ω CANL CANL(CN55) 3.Communication function can be accessed immediately after PHP-3500 is connected to AC. First set it to communication mode. CANID DLC(data length) Command Code Parameters 0x000C0100 0x04 0xC200...

  • Page 23: Notes On Operation

    325mm Table 5-1 Suggested wire selection for input/output wirings Derating ◎ When PHP-3500 is operating at a lower AC input voltage, the unit will derate its output current automatically to protect itself, shown as Figure 5-2. 230VAC Input only 230VAC...

  • Page 24: Water Cooling System

    Turn off the water cooling system during a power outage M5*6(combination screw) Optional MEAN WELL cold plate is ready for order, Ordering No.: PGG1WHS-656 4 Warranty ◎ A ve year global warranty is provided under normal operation. Please do not change any component or modify the unit by...
  • Page 25 N o . 2 8 , W u q u a n 3 r d R d . , W u g u D i s t . , N e w Ta i p e i C i t y 2 4 8 , Ta i w a n...
