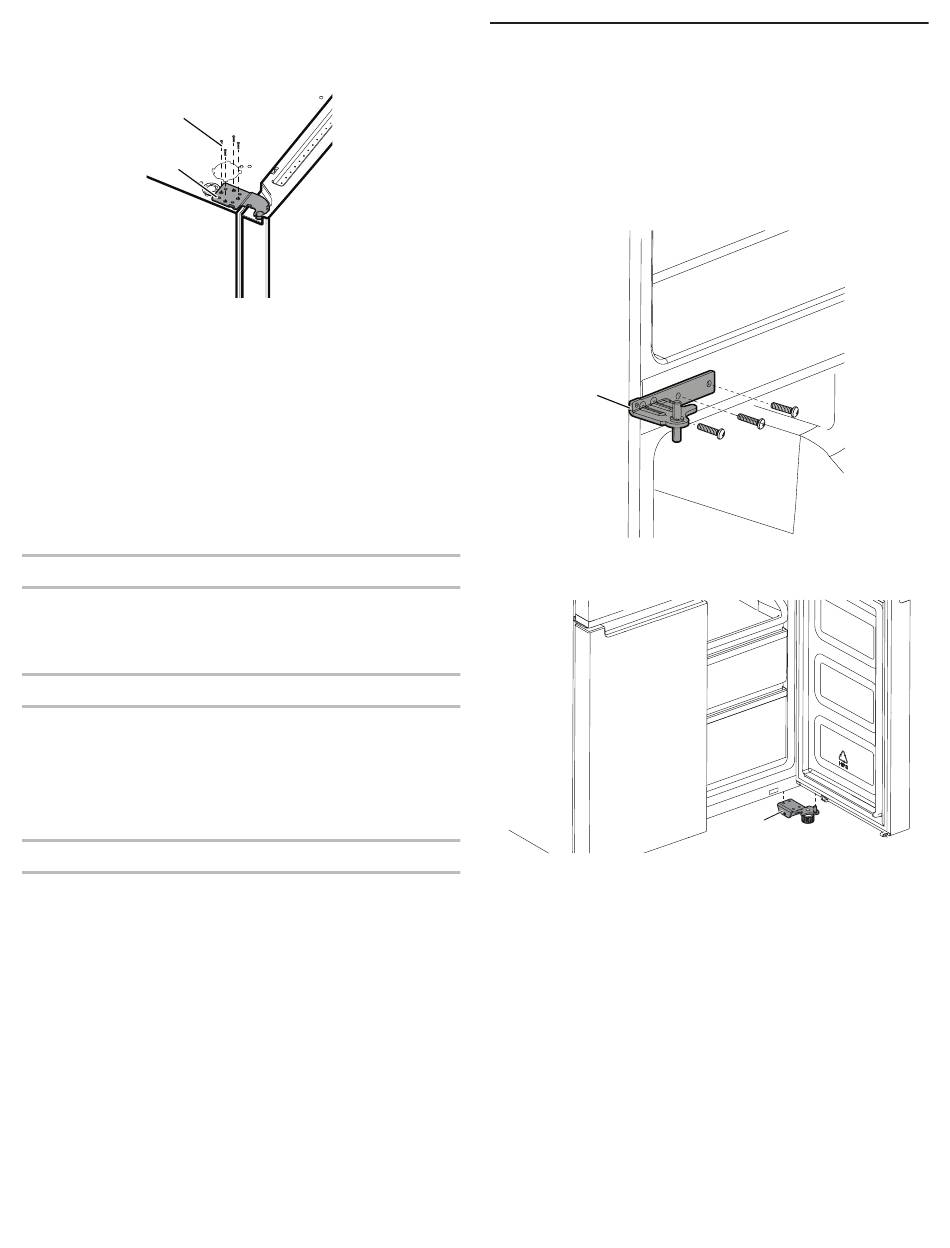

3. Using 5 mm socket wrench, remove four internal screws from
top hinge and set aside.
A
B
A. 5 mm socket screws
B. Top Hinge
NOTE: Provide additional support for refrigerator door while
hinges are being removed. Do not depend on the door gasket
magnets to hold the door in place while you are working.
4. Lift refrigerator door from bottom hinge pin. The top hinge will
come away with door.
NOTE: It may not be necessary to remove bottom hinges and
brake feet assemblies to move the refrigerator through a doorway.
Only if necessary, use 6 mm socket wrench and #2 Phillips
screwdriver to remove middle hinge.
Replace Right-Hand Refrigerator Door
1. Set right-hand door onto middle hinge pin.
2. Insert top hinge pin into open hole in top of refrigerator door.
3. Using four 5 mm socket screws, fasten hinge to cabinet. Do
not tighten screws completely.
Replace Left-Hand Refrigerator Door
1. Set left-hand door onto middle hinge pin.
2. Using four 5 mm socket screws, fasten hinge to cabinet. Do
not tighten screws completely.
3. Reconnect electrical wiring.
Push together two sections of wiring plug.
Reconnect earth wire to hinge screw.
Final Steps
1. Completely tighten eight 5 mm socket screws.
2. Replace top hinge covers.
14
Remove and Replace Freezer/Flexi
Freeze Door
1. Keep freezer doors closed until you are ready to lift them free
from cabinet.
NOTE: Provide additional support for freezer door while hinges
are being removed. Do not depend on door gasket magnets to
hold door in place while you are working.
Using a #2 Phillips screwdriver and 6 mm socket wrench to
remove middle hinge from cabinet.
A
A. Middle hinge
Lift freezer door from the bottom hinge pin.
A. Bottom hinge
A
