Installation Guide | PROFIBUS Card

2 Installation

2.1 Installing the Expansion Card

Procedure
1. Push a small flat-bladed screwdriver into the slot in the center of the expansion port cover and ease the cover away from the soft
starter.
2. Line up the card with the expansion port.
3. Gently push the card along the guide rails until it clicks into the soft starter.
Example:
1

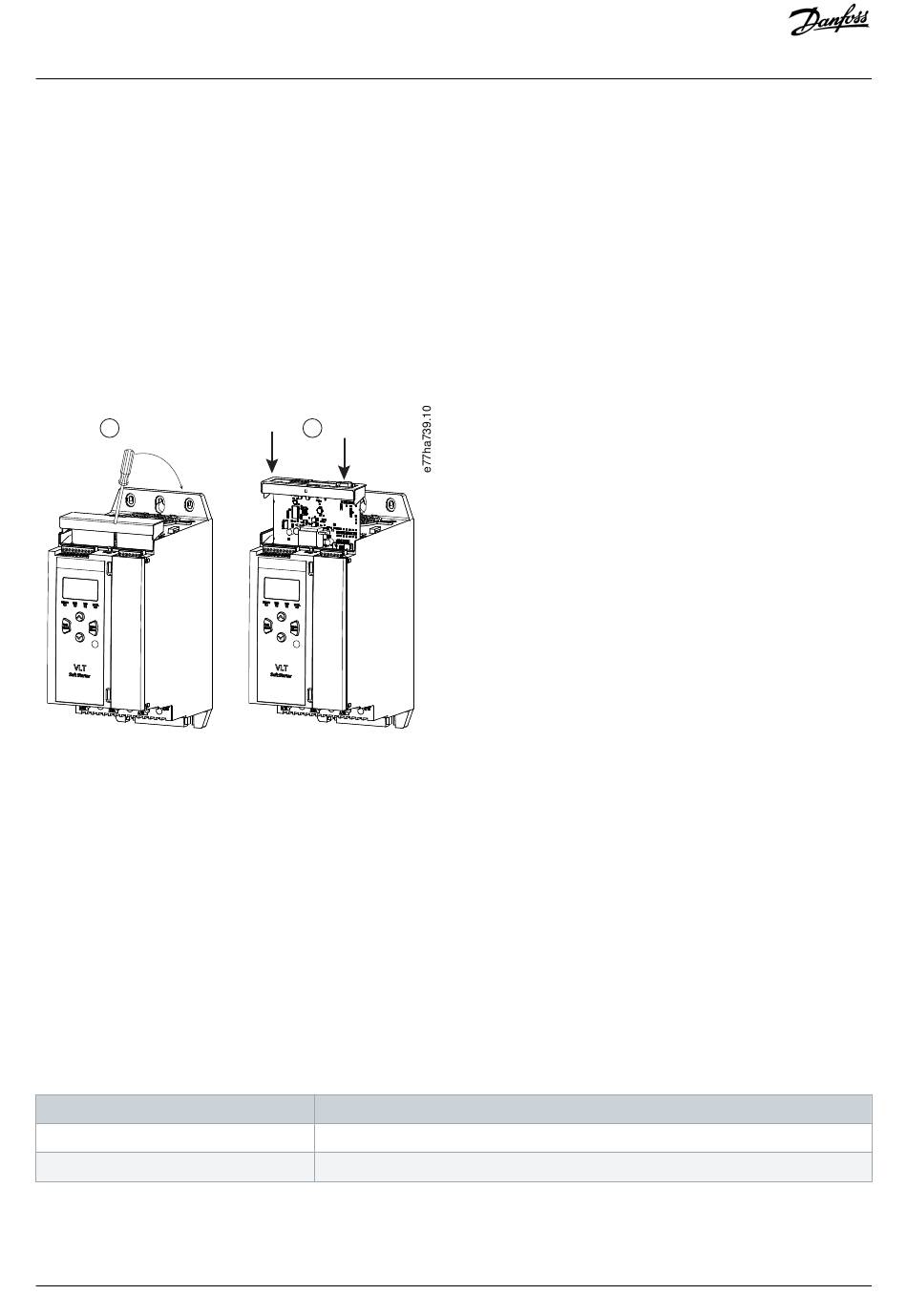

Illustration 1: Installation of the Expansion Cards

2.2 Connecting to the Network

Prerequisites:
The expansion card must be installed in the soft starter.
Procedure
1. Restore control power.
2. Connect field wiring via the DB9 plug.
Example:
Table 1: DB9 Connector
Pin number
1
2
Danfoss A/S © 2018.09
2
Assignment
Shield
24 V DC negative (optional)
Installation
AQ277154583779en-000101 / 175R1181 | 5
