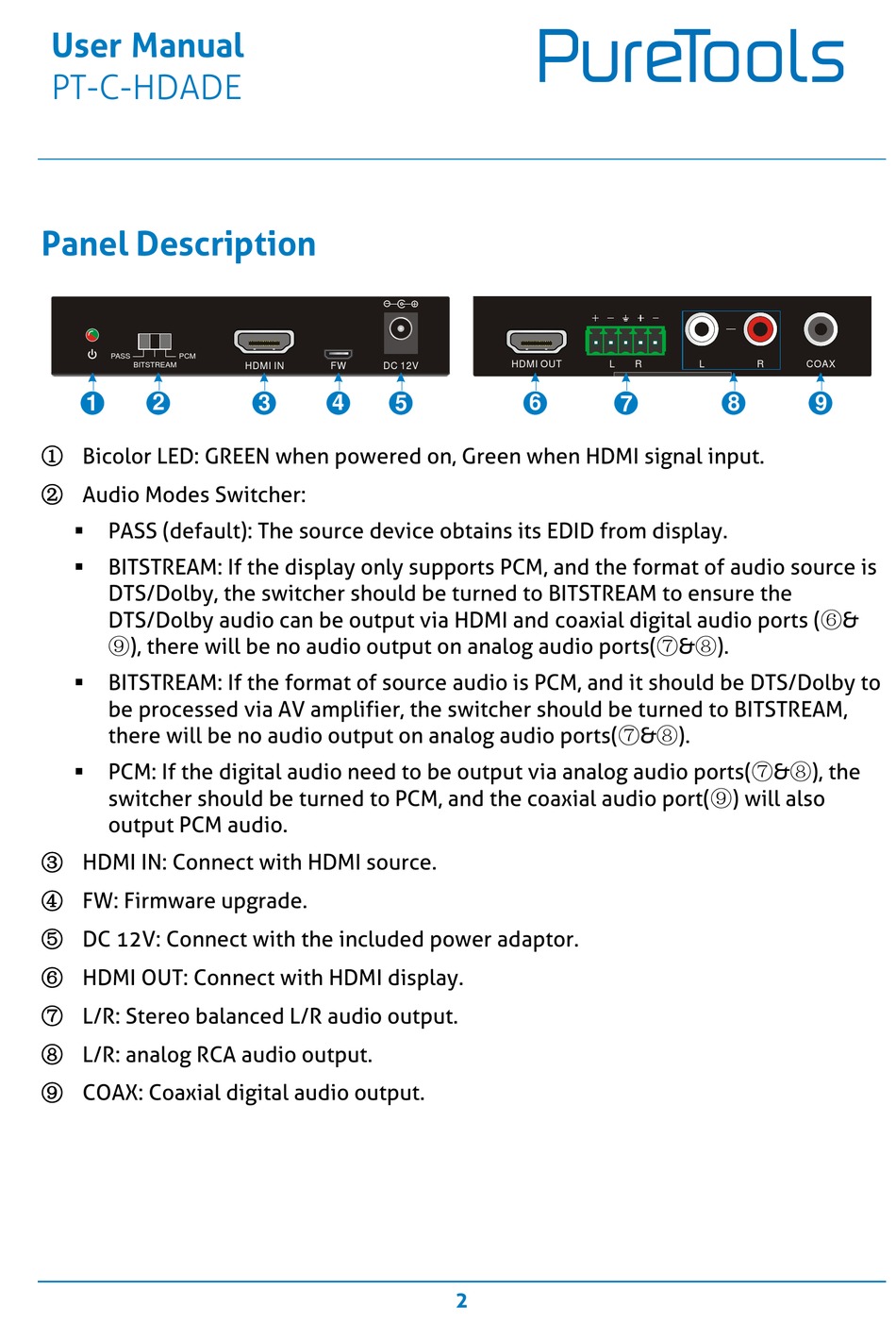

Panel Description

PASS PCM
BITSTREAM
2
1
① Bicolor LED: GREEN when powered on, Green when HDMI signal input.
② Audio Modes Switcher:
PASS (default): The source device obtains its EDID from display.

BITSTREAM: If the display only supports PCM, and the format of audio source is

DTS/Dolby, the switcher should be turned to BITSTREAM to ensure the
DTS/Dolby audio can be output via HDMI and coaxial digital audio ports (⑥&
⑨), there will be no audio output on analog audio ports(⑦&⑧).
BITSTREAM: If the format of source audio is PCM, and it should be DTS/Dolby to

be processed via AV amplifier, the switcher should be turned to BITSTREAM,
there will be no audio output on analog audio ports(⑦&⑧).
PCM: If the digital audio need to be output via analog audio ports(⑦&⑧), the

switcher should be turned to PCM, and the coaxial audio port(⑨) will also
output PCM audio.
③ HDMI IN: Connect with HDMI source.
④ FW: Firmware upgrade.
⑤ DC 12V: Connect with the included power adaptor.
⑥ HDMI OUT: Connect with HDMI display.
⑦ L/R: Stereo balanced L/R audio output.
⑧ L/R: analog RCA audio output.
⑨ COAX: Coaxial digital audio output.
HDMI IN FW DC 12V
4
3 5
HDMI OUT L
6
7
2
R L R
8
COAX
9
