SIMATIC NET
S7–CPs for PROFIBUS
Manual Part B3
CP 443-5 Basic
6GK7 443-5FX01-0XE0
for SIMATIC S7-400 / S7-400H

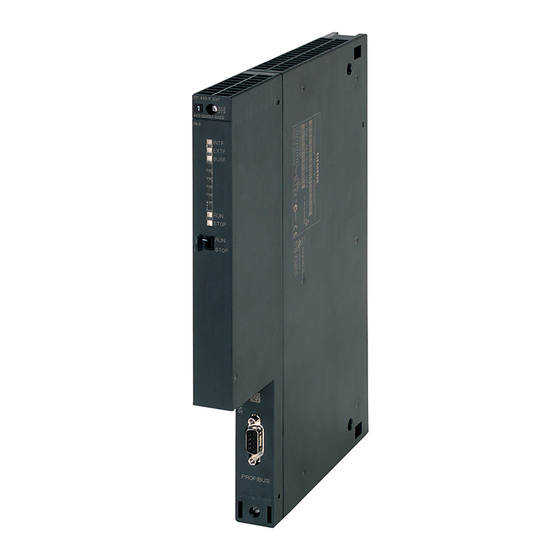

Status and fault LEDs
Mode Selector
PROFIBUS interface
(9-pin sub-D female
connector)
www.gkbpx.com
Version 3 and higher (Firmware version V3.2 and higher)
该文档是极速PDF编辑器生成,
如果想去掉该提示,请访问并下载:
http://www.jisupdfeditor.com/

Advertisement

   Summary of Contents for Siemens CP 443-5 Basic

  • Page 1

    该文档是极速PDF编辑器生成, 如果想去掉该提示,请访问并下载: http://www.jisupdfeditor.com/ SIMATIC NET S7–CPs for PROFIBUS Manual Part B3 CP 443-5 Basic 6GK7 443-5FX01-0XE0 Version 3 and higher (Firmware version V3.2 and higher) for SIMATIC S7-400 / S7-400H Status and fault LEDs Mode Selector PROFIBUS interface (9-pin sub-D female...

  • Page 2

    Compatibility with the Previous Version Note Make sure that you read the information regarding extended functionality and restrictions in Chapter 6 of this manual! CP 443-5 Basic for PROFIBUS / Manual Part B3 – Release 11/2002 C79000-G8976-C161-03...

  • Page 3: Table Of Contents

    ..........B3–22 CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–3...

  • Page 4: Properties / Services

    Properties / Services Application The CP 443-5 Basic communications processor is designed for use in a SIMATIC S7-400 (standard) and S7-400H (fault-tolerant system) programmable controller. It allows the S7-400 / S7-400H to be connected to a PROFIBUS field bus system.

  • Page 5

    – Time-of-day status value, standard/daylight saving time switchover, synchronization status The services of the CP 443-5 Basic module listed above can be used at the same time. Configuration When configuring, you must use STEP 7 version V5.1 SP2 or higher; for FDL connections and diagnostic functions you must already have installed the NCM S7 for PROFIBUS optional package, delivered with STEP 7.

  • Page 6

    PG. The stored configuration data are protected from power outage by battery backup or by plugging an EPROM card into the CPU. CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–6 Release 11/2002...

  • Page 7

    PROFIBUS and corresponding connections over Industrial Ethernet). Use with the Current CPU Types When operating the CP 443-5 Basic with the CPU types listed here in the table, the following functionality is supported without exception: S Number of operable CPs: 14...

  • Page 8: Requirements For Use

    CPU414-2 128 KB 6ES7 414-2XG01-0AB0 2 or higher 6ES7 414-2XG02-0AB0 2 or higher CPU414-2 384 KB 6ES7 414-2XJ00-0AB0 4 or higher 6ES7 414-2XJ01-0AB0 2 or higher CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–8 Release 11/2002 C79000-G8976-C161-03...

  • Page 9

    CPU416-2 0.8 MB 6ES7 416-2XK00-0AB0 4 or higher 6ES7 416-1XK01-0AB0 1 or higher CPU416-2 1.6 MB 6ES7 416-2XL00-0AB0 4 or higher 6ES7 416-2XL01-0AB0 1 or higher CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–9 Release 11/2002 C79000-G8976-C161-03...

  • Page 10

    Procedure / Steps Table 3-1 Step Explanation / Meaning 1. Insert the CP 443-5 The CP 443-5 Basic can be inserted in all racks with slots for P and K bus Basic attachment: Central rack CR2 Universal rack UR1, UR2 or UR2H as central rack as expansion rack with rack no.

  • Page 11: Displays And Mode Selector

    Module fault / system error Key: flashing Note Read the explanations of the operating modes in the NCM S7 for PROFIBUS manual /2/ under modes of operation. CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–11 Release 11/2002 C79000-G8976-C161-03...

  • Page 12

    Displays and Mode Selector http://www.jisupdfeditor.com/ Controlling the Operating Status There are different ways of controlling the mode of the CP 443-5 Basic, as follows: S Mode Selector S NCM S7 for PROFIBUS configuration software S SIMATIC Manager in STEP 7 To control the mode from STEP 7 / NCM S7 for PROFIBUS, the mode selector must be set to RUN.

  • Page 13: Performance Data

    Job Active Component / FC min. max. min. max. AG-SEND 0.12 ms 0.27 ms 0.11 ms 0.29 ms AG-RECV 0.15 ms 0.37 ms 0.10 ms 0.26 ms CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–13 Release 11/2002 C79000-G8976-C161-03...

  • Page 14: Data Of Fms Connections

    1.0 ms 1.5 ms 1.0 ms 2.8 ms REPORT 1.7 ms 3.1 ms 1.3 ms 4.8 ms IDENTIFY 1.7 ms 3.1 ms 1.3 ms 4.8 ms CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–14 Release 11/2002 C79000-G8976-C161-03...

  • Page 15

    In the Properties dialog of the CPU, set the ”Startup after power on” to “Warm restart” or “Cold start”. Note You should also refer to the entry on FMS data structures at the following Internet address: http://www4.ad.siemens.de/view/cs/de/10347267 CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–15 Release 11/2002 C79000-G8976-C161-03...

  • Page 16: Characteristics Of S7 Communication

    Table 5-5 Characteristic Explanation / Values Number of S7 connections that can Maximum 48 be operated via PROFIBUS (The value depends on the S7-400 CPU being used.) CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–16 Release 11/2002 C79000-G8976-C161-03...

  • Page 17: Maximum Number Of Connections In Total

    – a remote PC with CP 5412 / 5613 / 5614 Note With transmission rates of < 1.5 Mbps, we recommend that you configure a synchronization interval of at least 10 s. CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–17 Release 11/2002 C79000-G8976-C161-03...

  • Page 18: Use In Fault-tolerant Systems

    Performance Data http://www.jisupdfeditor.com/ Use in Fault-tolerant Systems With the CP 443-5 Basic, you can operate fault-tolerant S7 connections in an H system. You will find more detailed information about the possible operating and structural options in the “SIMATIC S7-400H Programmable Controller Manual, Fault-tolerant Systems”.

  • Page 19: Other Characteristics

    Performance Data http://www.jisupdfeditor.com/ Other Characteristics No Diagnostics During Configuration During configuration (CP online), diagnostics of the CP 443-5 Basic over MPI is not permitted. Memory Reset of the CP Warning Please note that when you reset the CP memory using NCM Diagnostics or the SIMATIC Manager, the configuration data on the CPU must also be deleted otherwise the data will become inconsistent.

  • Page 20: Compatibility With The Previous Product

    Compatibility with the Previous Product Extended functionality Compared with Previous Product: The CP 443-5 Basic (6GK7 443-5FX01-0XE0) described here can be used as a replacement for the previous product CP 443-5 Basic (6GK7 443-5FX00-0XE0). The CP 443-5 Basic described here provides new functionality.

  • Page 21: Replacing Older Modules / Replacing Defective Modules

    The information “for new modules” contained in both the STEP 7 / NCM S7 online help and the NCM S7 for PROFIBUS manual is also relevant for the CP described here. Look out for this symbol. CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–21 Release 11/2002...

  • Page 22: Technical Specifications

    Weight approx. 800 g All the information in /1/ in the Section “General Technical Specifications” regarding the following topics also applies to the CP 443-5 Basic S Electromagnetic compatibility S Transportation and storage conditions S Mechanical and climatic ambient conditions S Insulation tests, class of protection and degree of protection CP 443-5 Basic for PROFIBUS / Manual Part B3 –...

  • Page 23

    该文档是极速PDF编辑器生成, 如果想去掉该提示,请访问并下载: Technical Specifications http://www.jisupdfeditor.com/ CP 443-5 Basic for PROFIBUS / Manual Part B3 – B3–23 Release 11/2002 C79000-G8976-C161-03...
