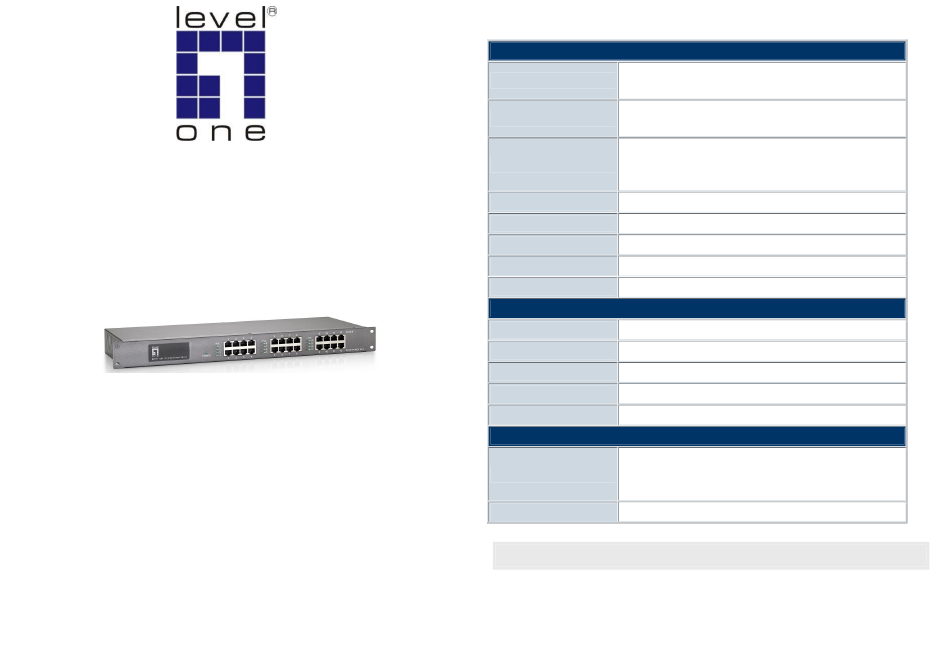

LevelOne POH-1260 User Manual

LevelOne

User Manual

POH-1260
LevelOne POH-1260 12 FE PoE Hub is equipped with 12 RJ-45 ports featuring PoE function to eliminate the
bulky power cable need while implementing your network infrastructure thus allowing greater flexibility in the
locating of network devices and significantly decreasing installation casts
POH-1260 is fully compliant with the IEEE 802.3af standard and acts as a patch panel between a switch and
other network devices to provide power and data, and it supplies PoE power of up to 30w per port over
existing Cat.5 Ethernet cable.
The compact 19'', IU rack-mountable design enables the switch to be easily located in a server room in
order to centralize power management and simplify network integration for various applications. For all the
functions featured in POH-1260 users can get the benefits of flexible network solutions that can simplify the
installation of wireless Access Point, IP Cam, IP phone and other devices or applications in the network.
Specification
Hardware Specification
Interface
LEDs
Network Cable
Dimension (W x D x H)
Weight
Operating Temperature
Storage Temperature
Humidity
Power over Ethernet
PoE Standard
PoE Function
PoE Power Output
Power Pin Assignment
Total PoE Power Budget
Standards Conformance
Standards Compliance
Regulation Compliance
V1.0
"Data" Input Ports: 12 x RJ-45 STP
"PoE (Data+Power)" Output Ports: 12 x RJ-45 STP
Power x 1 (Green), PoE Status x 12 (Green)
12 Ports ON means PoE Power forwarding
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
480 x 160 x 44 mm (1U height)
2.4kgs
0 ~ 50 Degree C
-40 ~ 70 Degree C
5 ~ 95% (Non-condensing)
IEEE 802.3af PoE / Mid-Span
Auto Recovery , OVP , OCP, OTP
Per Port DC 48V 30 watts
4/5(+), 7/8(-)
375 Watts
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet
FCC Part 15 Class A, CE
