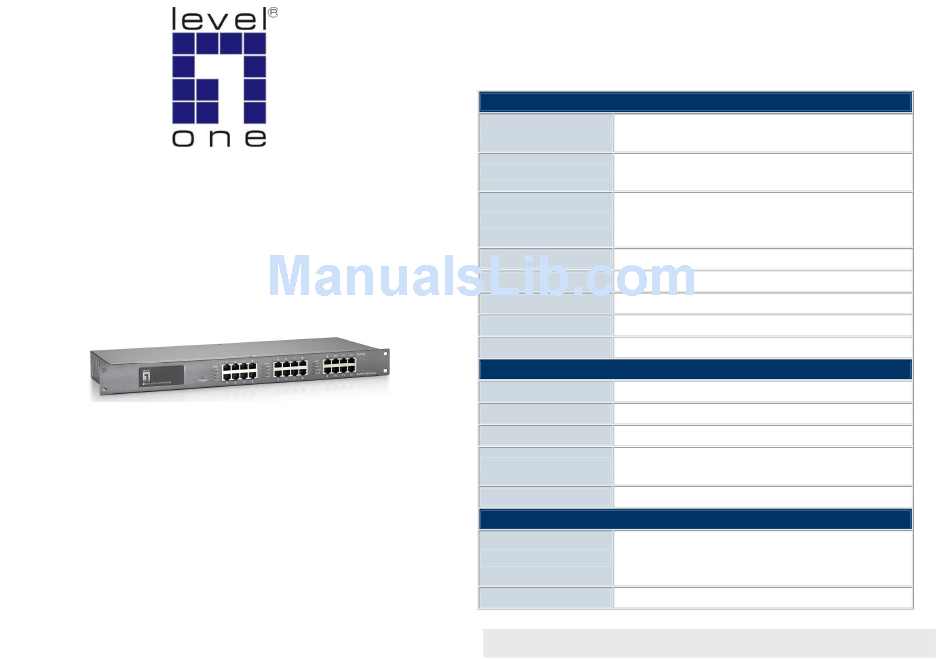

LevelOne POH-1250 User Manual

LevelOne

User Manual

POH-1250
LevelOne POH-1250 12 FE PoE Hub is equipped with 12 RJ-45 ports featuring PoE function to eliminate the
bulky power cable need while implementing your network infrastructure thus allowing greater flexibility in the
locating of network devices and significantly decreasing installation casts
POH-1250 is fully compliant with the IEEE 802.3af standard and acts as a patch panel between a switch and
other network devices to provide power and data, and it supplies PoE power of up to 15.4w per port over
existing Cat.5 Ethernet cable.
The compact 19'', IU rack-mountable design enables the switch to be easily located in a server room in
order to centralize power management and simplify network integration for various applications. For all the
functions featured in POH-1250 users can get the benefits of flexible network solutions that can simplify the
installation of wireless Access Point, IP Cam, IP phone and other devices or applications in the network.

Specification

Hardware Specification

"Data" Input Ports: 12 x RJ-45 STP

Interface

"PoE (Data+Power)" Output Ports: 12 x RJ-45 STP
Power x 1 (Green), PoE Status x 12 (Green)
LEDs
12 Port ON means PoE Power forwarding
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Network Cable 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Dimension (W x D x H) 480 x 60 x 44 mm (1U height)
Weight 1.2kgs
Operating Temperature 0 ~ 50 Degree C
Storage Temperature -40 ~ 70 Degree C
Humidity 5 ~ 95% (Non-condensing)

Power over Ethernet

PoE Standard

IEEE 802.3af PoE / Mid-Span

PoE Function

Auto Recovery , OVP , OCP, OTP

PoE Power Output

Per Port DC 48V 15.4 watts
4/5(+), 7/8(-)

Power Pin Assignment

Total PoE Power Budget

200 Watts

Standards Conformance

IEEE 802.3 10Base-T Ethernet

Standards Compliance

IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
V1.0
