  • Page 1 LevelOne GSW-2494 L2 Managed Switch User's Manual User’s Manual Ver: 1.00-0507...

  • Page 2: Table Of Contents

    ODULES INSTALLATION..........................9 2-1. S GSW-2494 U ......................9 TARTING 2-1-1. Hardware and Cable Installation ..................9 2-1-2. Cabling Requirements......................10 2-1-3. Configuring the Management Agent of GSW-2494............15 2-1-4. IP Address Assignment.......................19 2-2. T ......................24 YPICAL PPLICATIONS OPERATION OF WEB-BASED MANAGEMENT...............26 3-1. W ..................27...
  • Page 3 3-13-2. STP Configuration ......................99 3-13-3. STP Port Configuration ....................101 3-14. T ....................104 RUNKING ONFIGURATION 3-15. 802.1 ......................111 ONFIGURATION 3-16. A ......................121 LARM ONFIGURATION 3-17. C ........................124 ONFIGURATION 3-18. D .........................128 IAGNOSTICS 3-19. TFTP S .........................131 ERVER 3-20. L ............................132 3-21.

  • Page 4: Caution

    Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: • Touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit device.
  • Page 5 About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the GSW-2494 through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step. Many...

  • Page 6: Introduction

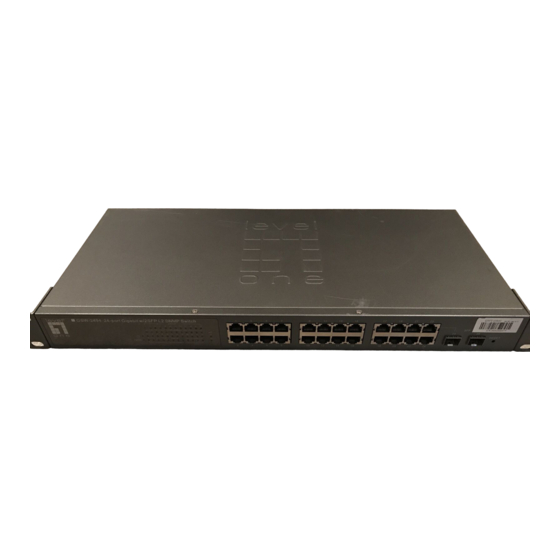

    User Manual 1. Introduction 1-1. Overview of GSW-2494 GSW-2494, 24-port Gigabit L2 Managed Switch, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch included 22-Port 10/100/1000Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch. The switch can be managed through RS-232 serial port via directly connection, or through Ethernet port using CLI or Web-based management unit, associated with SNMP agent.

  • Page 7: User Manual

    User Manual • Key Features in the Device QoS: Support Quality of Service by the IEEE 802.1P standard. There are two priority queue and packet transmission schedule using Weighted Round Robin (WRR). User-defined weight classification of packet priority can be based on either a VLAN tag on packet or a user-defined port priority.

  • Page 8: Checklist

    Please notify your sales representative immediately if any of the aforementioned items is missing or damaged. 1-3. Features GSW-2494, a standalone off-the-shelf switch, provides the comprehensive features listed below for users to perform system network administration and efficiently and securely serve your network.
  • Page 9 User Manual • Supports 802.1Q VLAN • Supports user management and limits three users to login • Maximal packet length can be up to 9216 bytes for jumbo frame application • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed •...

  • Page 10: View Of Gsw-2494

    User Manual 1-4. View of GSW-2494 Fig. 1-1 Full View of 24 Gigabit L2 Managed Switch 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 24 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional removable modules on the front panel of the switch.

  • Page 11: User Interfaces On The Rear Panel

    Off when module connection is not good Table1-1 1-4-2. User Interfaces on the Rear Panel One RS-232 DB-9 interface is offered for configuration or management. AC Line 100-240V 50/60 Hz RS-232 DB-9 Connector Fig. 1-3 Rear View of GSW-2494 Publication date: May, 2005 Revision A1...

  • Page 12: View Of The Optional Modules

    User Manual 1-5. View of the Optional Modules In the switch, Port 23~24 includes two types of media --- TP and SFP Fiber (LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high- speed connection expansion;...

  • Page 13: Installation

    ⇒ Be sure that power switch is OFF before you insert the power cord to power source • Installing Optional SFP Fiber Transceivers to GSW-2494 Note: If you have no modules, please skip this section. Fig. 2-1 Installation of Optional SFP Fiber Transceiver •...

  • Page 14: Cabling Requirements

    User Manual • TP Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.
  • Page 15 Gigabit Fiber with BiDi LC 1310nm SFP module  Gigabit Fiber with BiDi LC 1550nm SFP module  The following table lists the types of fiber that GSW-2494 supports and part of these models are available upon request. Multi-mode Fiber Cable and Modal Bandwidth Multi-mode 62.5/125µm Multi-mode 50/125µm...
  • Page 16 User Manual 2-1-2-3. Switch Cascading in Topology • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels & overall diameter) must follow the constraint of the IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which the limitations are the timing requirement from physical signals defined by 802.3 series specification of Media Access Control (MAC) and PHY, and timer from some...
  • Page 17 User Manual Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-2). Fig. 2-2 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
  • Page 18 User Manual Case 2b: Port-based VLAN (See Fig.2-4). Fig. 2-4 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members. VLAN3 members could not access VLAN1, VLAN2 and VLAN4.

  • Page 19: Configuring The Management Agent Of Gsw-2494

    RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch. You can touch them through the following procedures. Section 2-1-3-1: Configuring the Management Agent of GSW-2494 through the Serial RS-232 Port...
  • Page 20 User Manual 2-1-3-1. Configuring the Management Agent of GSW-2494 through the Serial RS-232 Port To perform the configuration through RS-232 console port, the switch’s serial port must be directly connected to a DCE device, for example, a PC, through RS-232 cable with DB-9 connector. Next, run a terminal emulator with the default setting of the switch’s serial port.
  • Page 21 255.255.255.0. You can change the switch’s default IP address 192.168.1.1 to 10.1.1.1 and set the subnet mask to be 255.255.255.0. Then, choose your default gateway, may be it is 10.1.1.254. Default Value GSW-2494 Your Network Setting IP Address 192.168.1.1 10.1.1.1 Subnet 255.255.255.0...
  • Page 22 User Manual 2-1-3-2. Configuring the Management Agent of GSW-2494 through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here. We just introduce the first two types of management interface.

  • Page 23: Ip Address Assignment

    User Manual Fig. 2-9 the Login Screen for Web 2-1-4. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
  • Page 24 User Manual With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
  • Page 25 User Manual Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
  • Page 26 User Manual In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched.
  • Page 27 User Manual For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router.

  • Page 28: Typical Applications

    User Manual 2-2. Typical Applications GSW-2494 implements 24 Gigabit Ethernet TP ports with auto MDIX and two slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. For more details on the specification of the switch, please refer to Appendix A.
  • Page 29 User Manual Fig. 2-13 Office Network Connection Publication date: May, 2005 Revision A1...

  • Page 30: Operation Of Web-Based Management

    User Manual 3. Operation of Web-based Management This chapter instructs you how to configure and manage GSW-2494 through the web user interface it supports, to access and manage the 22-Port 10/100/1000Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch. With this facility, you can easily access and monitor through any one port of...

  • Page 31: Web Management Home Overview

    User Manual Fig.3-1 3-1. Web Management Home Overview After you login, the switch shows you the system information as Fig. 3-2. This page is default and tells you the basic information of the system, including “Model Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up Time”, “Current Time”, “BIOS Version”, “Firmware Version”, “Hardware-Mechanical Version”, “Series Number”, “Host IP Address”, “Host Mac Address”, “Device Port”, “RAM Size”...
  • Page 32 User Manual • The Information of Page Layout On the top side, it shows the front panel of the switch. In the front panel, the  linked ports will display green; as to the ports, which are link off, they will be dark.
  • Page 33 User Manual Root System Port Mirror Bandwidth SNMP IGMP Snooping Max. Packet Length DHCP Boot VLAN MAC Table GVRP Trunk 802.1x Alarm Configuration Diagnostics TFTP Server Firmware Upgrade Reboot Logout Publication date: May, 2005 Revision A1...

  • Page 34: System Information

    You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is GSW-2494. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
  • Page 35 User Manual Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch. RAM size: The size of the DRAM in this switch.

  • Page 36: Ip Configuration

    User Manual 3-1-2. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device. The switch supports both manual IP address setting and automatic IP address setting via DHCP server.
  • Page 37 User Manual IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
  • Page 38 User Manual DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet.

  • Page 39: Time Configuration

    User Manual 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second” within the valid value range indicated in each item. If you input an invalid value, for example, 61 in minute, the switch will clamp the figure to NTP is a well-known protocol used to synchronize the clock of the switch system time over a network.
  • Page 40 User Manual NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply>...
  • Page 41 User Manual Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Fig.

  • Page 42: Account Configuration

    User Manual 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity. Guest-equivalent identity can modify his password only. Please note that you must confirm administrator/guest identity in the field of Authorization in advance before configuring the username and password.

  • Page 43: Management Security

    User Manual 3-1-5. Management Security Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
  • Page 44 User Manual Function name: Management Security Configuration Function description: The switch offers Management Security Configuration function. With this function, the manager can easily control the mode that the user connects to the switch. According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those who are unable to connect to the switch (Deny).
  • Page 45 User Manual IP Range: The switch supports two kinds of options for managed valid IP Range, including “Any” and “Custom”. Default is “Any”. In case that” Custom” had been chosen, you can assigned effective IP range. The valid range is 0.0.0.0~255.255.255.255. Incoming Port: The switch supports two kinds of options for managed valid Port Range, including “Any”...

  • Page 46: Virtual Stack

    User Manual 3-1-6. Virtual Stack Function name: Virtual Stack Function description: Virtual Stack Management(VSM) is the group management function. Through the proper configuration of this function, switches in the same LAN will be grouped automatically. And among these switch, one switch will be a master machine, and the others in this group will become the slave devices.
  • Page 47 User Manual Parameter description: State: It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option. Default is Master. Group ID: It is the group identifier (GID) which signs for VSM.

  • Page 48: Port Configuration

    User Manual 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
  • Page 49 User Manual Function name: Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds. Parameter Description: Port No: Display the port number.
  • Page 50 User Manual Speed / Duplex Mode: Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex. If the media is 1Gbps fiber, it is 1000Mbps supported only.
  • Page 51 User Manual Fig. 3-8 Parameter description of Port 23 and Port24: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so Fiber Type: Display the fiber mode, for instance, Multi-Mode, Single-Mode. Tx Central Wavelength: Display the fiber optical transmitting central wavelength, for instance, 850nm, 1310nm, 1550nm and so on.
  • Page 52 User Manual Vendor SN (Serial Number): Show the serial number assigned by the manufacturer. Date Code: Show the date this SFP module was made. Temperature: Show the current temperature of SFP module. Vcc: Show the working DC voltage of SFP module. Mon1(Bias) mA: Show the Bias current of SFP module.

  • Page 53: Port Configuration

    User Manual 3-2-2. Port Configuration Port Configuration is applied to change the setting of each port. In this configuration function, you can set/reset the following functions. All of them are described in detail below. Fig. 3-9 Function name: Port Configuration Function description: It is used to set each port’s operation mode.
  • Page 54 User Manual Mode: Set the speed and duplex of the port. In speed, if the media is 1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.

  • Page 55: Simple Counter

    User Manual 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-10, the window can show all ports’ counter information at the same time.
  • Page 56 User Manual Rx Packet: The counting number of the packet received. Tx Collision: Number of collisions transmitting frames experienced. Rx Error Packet: Number of bad packets received. Publication date: May, 2005 Revision A1...

  • Page 57: Detail Counter

    User Manual 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-11, the window can show only one port counter information at the same time.
  • Page 58 User Manual Rx Low Priority Packets: Number of Rx packets classified as low priority. Rx Broadcast: Show the counting number of the received broadcast packet. Rx Multicast: Show the counting number of the received multicast packet. Tx Packets: The counting number of the packet transmitted. TX Octets: Total transmitted bytes.
  • Page 59 User Manual Tx 65-127 Bytes: Number of 65 ~ 126-byte frames in good and bad packets transmitted. Tx 128-255 Bytes: Number of 127 ~ 255-byte frames in good and bad packets transmitted. Tx 256-511 Bytes: Number of 256 ~ 511-byte frames in good and bad packets transmitted. Tx 512-1023 Bytes: Number of 512 ~ 1023-byte frames in good and bad packets transmitted.

  • Page 60: Mirror

    User Manual 3-3. Mirror Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.

  • Page 61: Bandwidth Management

    User Manual 3-4. Bandwidth Management Function name: Bandwidth Management Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Fig. 3-13 Parameter description: Port Number: Choose the port that you would like this function to work on it. Valid range of the port is 1~24.
  • Page 62 User Manual All Traffic for Egress Rate Limiting(Shaping): Set up the limit of Egress bandwidth for the port you choose. Packet transmission will be delayed if the rate exceeds the value you set up in Data Rate field. Traffic may be lost if egress buffers run full. The format of the packet limits to unicast, broadcast and multicast.

  • Page 63: Qos(Quality Of Service) Configuration

    User Manual 3-5. QoS(Quality of Service) Configuration offers powerful 5 kinds of QoS functions. There are Per Port switch Priority that you can assign each port to different precedence, VLAN Tag priority that can make precedence of 8 priorities, IP TOS Classification, IP TCP/UDP Port Classification and IP DiffServe Classification.
  • Page 64 User Manual Function name: Per Port Priority Function description: We can assign QoS Priority, including High and Low for each port. For example, if we transmit IP packets from Port 2 and Port 3 at the speed of 1Gbps to Port 1, and set the Class of Port 2 as High and Port 3 as Low, then the packets of Port 3 will be dropped when the congestion happens because Port 2 owns higher precedence of transmitting packets.
  • Page 65 User Manual Function name: VLAN Tag Priority Function description: In vlan tag, there are 3 bits belonging to priority. According to these 3 bits, we could arrange 8 traffics –0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0, 1 1 1. We can set High priority or Low priority for each traffic class.
  • Page 66 User Manual Bit 0, Bit 1, Bit 2: According to the arrangement of VLAN-tagged priority, it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
  • Page 67 User Manual Function name: IP ToS Classification Function description: Another QoS function is the application of Layer 3 on network framework. We focus on TOS field of IP header. There are three bits in TOS field. We means bit 2~4 of TOS field that we will use. According to these 3 bits, we could arrange 8 traffics –0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0, 1 1 1.
  • Page 68 User Manual Bit 0, Bit 1, Bit 2: According to the arrangement of Bit 5 ~ Bit 7 in TOS Field of IP Header, it can form 8 kinds of traffics, including 0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
  • Page 69 User Manual Function name: IP TCP/UDP Port Classification Function description: In L4 QoS Configuration, you can enter one of these special network transmission events, for example we use” Down prioritize web browsing, e-mail, FTP and news “L4 QoS Configuration and click apply, and then click Custom L4.
  • Page 70 User Manual Prioritize Databases (Oracle, IBM DB2, SQL, Microsoft): Belong to the QoS in L4. Just tick the option button and press <Apply> button to have this function taken affect. Then, enter Custom L4 to set up Special TCP/UDP port for QoS. Advanced Mode: Display the TCP/UDP port number in L4 QoS.
  • Page 71 User Manual Advanced Mode Fig. 3-18 Simple Mode Fig. 3-19 Simple Mode: Press <Simple> button is to return to the screen that all L4 port number will disappear (See Fig 3-19). Publication date: May, 2005 Revision A1...
  • Page 72 User Manual Function name: IP Diffserv Classification Function description: IP Diffserve Classification function, it can form total 64 (0~63) kinds of Traffic Class based on the arrangement of 6-bit field in DSCP of the IP packet. In the switch, user is allowed to set up these 64 kinds of Class that belong to High or Low Priority.

  • Page 73: Snmp Configuration

    User Manual 3-6. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. The SNMP is a protocol that is used to govern the transfer of information between SNMP manager and agent and traverses the Object Identity (OID) of the management Information Base (MIB), described in the form of SMI syntax.
  • Page 74 User Manual Default SNMP function : Enable Default community name for GET: public Default community name for SET: private Default community name for Trap: public Default Set function : Enable Default trap host IP address: 0.0.0.0 Default port number :162 Trap: In the switch, there are four trap hosts supported.

  • Page 75: Igmp Snooping

    User Manual 3-7. IGMP Snooping The function, IGMP Snooping, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network. This is because a switch that does not support IGMP or IGMP Snooping can not tell the multicast packet from the broadcast packet, so it can only treat them all as the broadcast packet.
  • Page 76 User Manual Parameter description: IGMP snooping mode selection: The switch supports three kinds of IGMP Snooping status, including “Passive”, “Active” and “Disable”. Disable: Set “Disable” mode to disable IGMP Snooping function. Default: Disable Active: In Active mode, IGMP snooping switch will periodically issue the Membership Query message to all hosts attached to it and gather the Membership report message to update the database of the Multicast table.

  • Page 77: Max. Packet Length

    User Manual 3-8. Max. Packet Length Function name: Max. Packet Length Function description: The switch is capable of dealing with 9k Jumbo Frames, which suits the transmission for a large amount of data in the network environment. Parameter description: Jumbo Frame(bytes): Set up the maximum length of the packet that each port of the switch can accept.

  • Page 78: Dhcp Boot

    User Manual 3-9. DHCP Boot The DHCP Boot function is used to spread the request broadcast packet into a bigger time frame to prevent the traffic congestion due to broadcast packets from many network devices which may seek its NMS, boot server, DHCP server and many connections predefined when the whole building or block lose the power and then reboot and recover.

  • Page 79: Vlan

    User Manual 3-10. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
  • Page 80 User Manual Metro Mode: The Metro Mode is a quick configuration VLAN environment method on Port-based VLAN. It will create 22 or 23 Port-based VLAN groups. Double-tag: Double-tag mode belongs to the tag-based mode, however, it would treat all frames as the untagged ones, which means that tag with PVID will be added into all packets.
  • Page 81 User Manual Up-link Port: This function is enabled only when metro mode is chosen in VLAN mode. Except Port 23, each port of the switch cannot transmit packets with each other. Each port groups a VLAN with Port 23, thus, total 23 groups consisting of 2 members are formed.

  • Page 82: Tag-Based Group

    User Manual 3-10-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups, You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name and VLAN ID.
  • Page 83 User Manual Add Group: Create a new Tag-based VLAN. Input the VLAN name as well as VID, configure the SYM-VLAN function and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.

  • Page 84: Port-Based Group

    User Manual 3-10-3. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name.
  • Page 85 User Manual Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect. Fig. 3-31 Delete Group: Just press the <Delete>...

  • Page 86: Tag Rule

    User Manual 3-10-4. Tag Rule Function name: Tag Rule Function description: In VLAN Tag Rule Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rules to each port.
  • Page 87 User Manual Role: This is an egress rule of the port. Here you can choose Access, Trunk or Hybrid. Trunk means the outgoing packets must carry VLAN tag header. Access means the outgoing packets carry no VLAN tag header. If packets have double VLAN tags, one will be dropped and the other will still be left.

  • Page 88: Mac Table

    User Manual 3-11. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static Forward, Static Filter and MAC Alias, which cannot be categorized to some function type. They are described below. Function name: MAC Table Information Function Description: Display the static or dynamic learning MAC entry and the state for the selected port.
  • Page 89 User Manual Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC” or “Static MAC”. Fig. 3-34 Publication date: May, 2005 Revision A1...
  • Page 90 User Manual Function Name: MAC Table Maintenance Function Description: This function can allow the user to set up the processing mechanism of MAC Table. An idle MAC address exceeding MAC Address Age-out Time will be removed from the MAC Table. The range of Age-out Time is 10-800 seconds, and the setup of this time will have no effect on static MAC addresses.
  • Page 91 User Manual Function Name: Static Forward Function Description: Static Forward is a function that allows the user in the static forward table to access a specified port of the switch. Static Forward table associated with a specified port of a switch is set up by manually inputting MAC address and its alias name.
  • Page 92 User Manual Function name: Static Filter Function Description: Static Filter is a function that denies the packet forwarding if the packet’s MAC Address is listed in the filtering Static Filter table. User can very easily maintain the table by filling in MAC Address, VID (VLAN ID) and Alias fields individually.
  • Page 93 User Manual Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report. At the initial time, it shows all pairs of the existed alias name and MAC address.
  • Page 94 User Manual Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 11 - 6B - D6 – 00 - 01 Alias: MAC alias name you assign. Note: If there are too many MAC addresses learned in the table, we recommend you inputting the MAC address and alias name directly.

  • Page 95: Gvrp Configuration

    User Manual 3-12. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application. It makes use of GARP Information Declaration (GID) to maintain the ports associated with their attribute database and GARP Information Propagation (GIP) to communicate among switches and end stations.
  • Page 96 User Manual Function name: GVRP Config Function description: In the function of GVRP Config, it is used to configure each port’s GVRP operation mode, in which there are seven parameters needed to be configured described below. Parameter description: GVRP State Setting: This function is simply to let you enable or disable GVRP function.
  • Page 97 User Manual Normal: It is Normal Registration. The Registrar responds normally to incoming GARP messages. The default setting is Normal. Fixed: It is Registration Fixed. The Registrar ignores all GARP messages, and all members remain in the registered (IN) state. Forbidden: It is Registration Forbidden.
  • Page 98 User Manual Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Fig. 3-40 Parameter description: Received: Total GVRP Packets: Total GVRP BPDU is received by the GVRP application.
  • Page 99 User Manual LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application. Transmitted: Total GVRP Packets: Total GARP BPDU is transmitted by the GVRP application. Invalid GVRP Packets: Number of invalid GARP BPDU is transmitted by the GVRP application.
  • Page 100 User Manual Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID. Valid range is 1 ~ 4094. Member Port: Those are the members belonging to the same dynamic VLAN group.

  • Page 101: Stp Configuration

    User Manual 3-13. STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time. User can enable Spanning Tree Protocol on switch’s web management and then set up other advanced items.
  • Page 102 User Manual All bridges in the LAN will re-learn and determine which the root bridge is. Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time. The value of Forward Delay time is set by root.

  • Page 103: Stp Configuration

    If you want to have GSW-2494 as root bridge, you can set this value lower than that of bridge in the LAN. The valid value is 0 ~ 61440. The default is 32768.
  • Page 104 User Manual Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.

  • Page 105: Stp Port Configuration

    User Manual 3-13-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item. User also can set “Path Cost” and “Priority” of each port by filling in the desired value and set “Admin Edge Port”...
  • Page 106 User Manual 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps : 20,000 Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID. Port IDs are often compared in order to determine which port of a bridge would become the Root Port.
  • Page 107 User Manual M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port. Click <M Check>...

  • Page 108: Trunking Configuration

    User Manual 3-14. Trunking Configuration The Port Trunking Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
  • Page 109 User Manual Per Trunking Group supports a maximum of 12 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Some configuration examples are listed below: 12 ports have already used Static Trunk Group ID 1, the 13th port willing to use the same Static Trunk Group ID will be automatically set to use the “None”...
  • Page 110 User Manual Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports. None: A port does not want to aggregate with any other port should choose this default setting.
  • Page 111 User Manual Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group. Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port.
  • Page 112 User Manual Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 24) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
  • Page 113 User Manual Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view. System Priority: Show the System Priority part of a system ID.
  • Page 114 User Manual Function name: LACP System Priority Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system. Each system supports LACP will be assigned a globally unique System Identifier for this purpose.

  • Page 115: Configuration

    User Manual 3-15. 802.1x Configuration 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication. If a user wishes to touch the network through a port under 802.1x control, he (she) must firstly input his (her) account name for authentication and waits for gaining authorization before sending or receiving any packets from a 802.1x-enabled port.
  • Page 116 User Manual The overview of operation flow for the Fig. 3-49 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify. Finally, RADIUS server replies if the request is granted or denied.
  • Page 117 User Manual Authentication server Fig. 3-50 Authenticator Supplicant A The Fig. 3-51 shows the procedure of 802.1x authentication. There are steps for the login based on 802.1x port access control management. The protocol used in the right side is EAPOL and the left side is EAP. At the initial stage, the supplicant A is unauthenticated and a port on switch acting as an authenticator is in unauthorized state.
  • Page 118 User Manual If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant. At this time, the supplicant is authorized and the port connected to the supplicant and under 802.1x control is in the authorized state.
  • Page 119 User Manual Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
  • Page 120 User Manual Function name: 802.1x State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1x port security application. Parameter description: Radius Server: RADIUS server IP address for authentication. Default: 192.168.1.1 Port Number: The port number to communicate with RADIUS server for the authentication service.
  • Page 121 User Manual Function name: 802.1x Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1x operation mode. 802.1x Mode: 802.1x operation mode.
  • Page 122 User Manual Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X authenticator on it.
  • Page 123 User Manual Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1x port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1x parameters which are Port control, reAuthMax, txPeriod, Quiet Period, reAuthEnabled, reAuthPeriod, max.
  • Page 124 User Manual reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.

  • Page 125: Alarm Configuration

    User Manual 3-16. Alarm Configuration Alarm Configuration Events Configuration Email/SMS Configuration Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 24 different trap events to users for switch management.
  • Page 126 User Manual Fig. 3-56 Function name: Email/SMS Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email or SMS, or both. It depends on your settings. An email address or a mobile phone number has to be set in the web page of alarm configuration (See Fig.
  • Page 127 User Manual Parameter description: Email: Mail Server: the IP address of the server transferring your email. Username: your username on the mail server. Password: your password on the mail server. Email Address 1 – 6: email address that would like to receive the alarm message.

  • Page 128: Configuration

    User Manual 3-17. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively. Default Configuration: This is the ex-factory setting and cannot be altered. Working Configuration: It is the configuration you are using currently and can be changed any time.
  • Page 129 User Manual 3-17-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Fig. 3-59 Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory. Fig.
  • Page 130 User Manual Function name: Restore Default Configuration Function description: Restore Default Configuration function can retrieve the ex-factory setting to replace the start configuration. Fig. 3-61 Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration.
  • Page 131 User Manual 3-17-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description: Export File Path: Export Start: Export Save As Start’s config file stored in the flash.

  • Page 132: Diagnostics

    User Manual 3-18. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections. Diagnostics Diagnostics Loopback Test Ping Test Function name: Diagnostics Function description:...
  • Page 133 User Manual Function name: Loopback Test Function description: In the Loopback Test function, there are two different loopback tests. One is Internal Loopback Test and the other is External Loopback Test. The former test function will not send the test signal outside the switch box. The test signal only wraps around in the switch box.
  • Page 134 User Manual Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides Ping Test function to let you know that if the target device is available or not.

  • Page 135: Tftp Server

    User Manual 3-19. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply> button to have the setting taken effect. Fig.

  • Page 136: Log

    User Manual 3-20. Log This function shows the log data. The switch provides system log data for users. There are 19 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
  • Page 137 User Manual Upload Log: Upload log data through tftp. Clear Log: Clear log data. Publication date: May, 2005 Revision A1...

  • Page 138: Firmware Upgrade

    User Manual 3-21. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet. Function name: Firmware Upgrade Function description: The switch supports TFTP upgrade tool for upgrading software.

  • Page 139: Reboot

    User Manual 3-22. Reboot We offer you many ways to reboot the switch, including power up, hardware reset and software reset. You can press the RESET button in the front panel to reset the switch. After upgrading software, changing IP configuration or changing VLAN mode configuration, then you must reboot to have the new configuration taken effect.

  • Page 140: Logout

    User Manual 3-23. Logout You can manually logout by performing Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.

  • Page 141: Operation Of Cli Management

    User Manual 4. Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
  • Page 142 User Manual Fig 4-1 Fig. 4-2 Publication date: May, 2005 Revision A1...

  • Page 143: Commands Of Cli

    User Manual 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands. Global commands can be used wherever the mode you are.

  • Page 144: Global Commands Of Cli

    If you use this command in the top mode, you are still in the position of the top mode. Argument: None. Possible value: None. Example: GSW-2494# trunk GSW-2494(trunk)# exit GSW-2494# Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode.
  • Page 145 Argument: None. Possible value: None. Example: GSW-2494# ip GSW-2494(ip)# help Commands available: ------------<< Local commands >>------------ set ip Set ip,subnet mask and gateway set dns Set dns...
  • Page 146 [#]: show last number of history records. (optional) Possible value: [#]: 1, 2, 3, …., 256 Example: GSW-2494(ip)# history Command history: 0. trunk 1. exit 2. GSW-2494# trunk 3. GSW-2494(trunk)# exit 4. GSW-2494# 5. ? 6. trunk 7. exit 8. alarm 9. events 10.
  • Page 147 CLI would save your current configuration into the non-volatile FLASH. If you want the configuration still works after rebooting, save the configuration using the command ‘save stat’. Argument: None. Possible value: None. Example: GSW-2494# save start Saving start... Save Successfully GSW-2494# Publication date: May, 2005 Revision A1...
  • Page 148 To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration. Argument: None. Possible value: None. Example: GSW-2494# save user Saving user... Save Successfully GSW-2494# restore default Syntax: restore default Description: To restore the startup configuration as factory default configuration.
  • Page 149 After rebooting, the entire startup configuration would replace as user defined one. Argument: None Possible value: None Example: GSW-2494# restore user Restoring ... Restore User Configuration Successfully Press any key to reboot system. Publication date: May, 2005 Revision A1...

  • Page 150: Local Commands Of Cli

    To set the location description of the switch. Argument: String length up to 32 characters. Possible value: A, b, c, d, ... ,z and 1, 2, 3, …. etc. Example: GSW-2494(system)# set location Taipei Publication date: May, 2005 Revision A1...
  • Page 151 Argument: String length up to 32 characters. Possible value: A, b, c, d, ... ,z and 1, 2, 3, …. etc. Example: GSW-2494(system)# set contact Taipei set device-name Syntax: set device-name <string> Description: To set the device name description of the switch.
  • Page 152 Possible value: <ip> : 192.168.1.2 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: GSW-2494(ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 set system IP address : 192.168.1.2 subnet mask : 255.255.255.0 default gateway : 192.168.1.253 set dns Syntax: set dns <ip address>...
  • Page 153 Description: To disable the DHCP function of the system. Argument: None Possible value: None Example: GSW-2494(ip)# disable dhcp : Disabled system DHCP function. show Syntax: show Description: To display the system’s DHCP function state, IP address, subnet mask, default gateway, DNS mode, DNS server IP address and current IP address.
  • Page 154 : Day (01-31) : Hour (00-23) : Minute (00-59) : Second (00-59) Example: GSW-2494(time)# set manual 2004/12/23 16:18:00 GSW-2494(time)# set ntp Syntax: set ntp <ip> <timezone> Description: To set up the current time via NTP server. Argument: : ntp server ip address or domain name...
  • Page 155 : daylight saving start month/day/hour : daylight saving end month/day/hour : Month (01-12) : Day (01-31) : Hour (00-23) Example: GSW-2494(time)# set daylightsaving 3 10/12/01 11/12/01 Save Successfully GSW-2494(time)# show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,” Timezone”, ”...
  • Page 156 To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: A string must be at least 5 character. Example: GSW-2494(account)# add aaaaa Password: Confirm Password: Save Successfully GSW-2494(account)# Syntax: del <name>...
  • Page 157 To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: GSW-2494(account)# modify aaaaa username/password: the length is from 5 to 15. Current username (aaaaa):bbbbb New password: Confirm password: Username changed successfully.
  • Page 158 100full: set speed/duplex 100M Full 1Gfull: set speed/duplex 1G Full. Possible value: <range>: 1 to 24 <port-speed>: auto, 10half, 10full, 100half, 100full, 1Gfull Example: GSW-2494(port)# set speed-duplex 5 auto show status Syntax: show status Description: To display the port’s current status.
  • Page 159 To display the detailed counting number of each port’s traffic. Argument: <range>:syntax 1,5-7, available from 1 to 24 Possible value: 1 ~ 24 Example: GSW-2494 (port)# show detail-counter 5 show conf Syntax: show conf Description: To display the each port’s configuration about state, speed-duplex and flow control.
  • Page 160 To enable the communication capability of the port. Argument: range syntax: 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: GSW-2494 (port)# enable state 3-12 enable flow-control Syntax: enable flow-control <range> Description: To enable the flow control function of the port.
  • Page 161 To disable the communication capability of the port. Argument: range syntax: 1,5-7, available from 1 to 24 Possible value: <range>: 1 ~ 24 Example: GSW-2494 (port)# disable state 12 disable flow-control Syntax: disable flow-control <range> Description: To disable the flow control function of the port.
  • Page 162 <rx | disable> rx : Enable the mode of Mirror(Only mirror the packets that is received) disable: End the function of mirror Possible value: None Example: GSW-2494(mirror)# set mirror-mode rx GSW-2494(mirror)# set monitoring-port Syntax: set monitoring-port <#> Description: To set up the monitoring port of the mirror function. User can observe the packets that the monitored port received via this port.
  • Page 163 Description: To display the setting status of Mirror function. Argument: None Possible value: None Example: GSW-2494(mirror)# show Mirror Mode : rx Monitoring Port : 2 Monitored Port : 3 4 5 7 10 GSW-2494(mirror)# Publication date: May, 2005 Revision A1...
  • Page 164 <range>:syntax 1,5-7, available from 1 to 24 <data_rate>: 0-1000. Possible value: <range>: 1 to 24 <data_rate>: 0-1000. Example: GSW-2494(bandwidth)# enable ingress-rate 1-16 100 enable storm-rate Syntax: enable storm-rate <range> <data_rate> Description: To set up the storm-rate of the ports. Argument: <range>:syntax 1,5-7, available from 1 to 24...
  • Page 165 To cancel the Ingress-rate of the port. Argument: <range>:syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24 Example: GSW-2494(bandwidth)# disable ingress-rate 1-8 disable storm-rate Syntax: disable ingress-rate <range> Description: To cancel the storm-rate of the port.
  • Page 166 Syntax: show Description: To display all current settings of the bandwidth. Argument: None Possible value: None Example: GSW-2494(bandwidth)# show All State All Rate Storm State Storm Rate All state All Rate ====== =========== ========== ============= ============ =========== ========== Disabled Disabled...
  • Page 167 To set class of ports on port-based qos. Argument: <range> : port range <class> : class of service setting. Possible value: <range>: syntax: 1,5-7, available from 1 to 24 <class>: 1: high, 0: low Example: GSW-2494(qos)# set port 1-10 1 Publication date: May, 2005 Revision A1...
  • Page 168 <port-range>: syntax: 1,5-7, available from 1 to 24 <tag-range>: priority level, syntax: 1,5-7, available from 0 to 7 <class>: class of service setting. 1: high, 0: low Example: GSW-2494(qos)# set pri-tag 1-15 1-2 1 set tos Syntax: set tos <port-range> <tos-range> <class>...
  • Page 169 <#:> tcp/udp port number, range: 1-10 <tcp/udp port range>: 0-65535. match: special TCP/UDP class. 1: high, 0: low default: default class (all other TCP/UDP ports). 1: high, 0: low Example: GSW-2494(qos)# set advance-layer4 5 2 80 1 0 Publication date: May, 2005 Revision A1...
  • Page 170 <ds-range>: dscp field <class>: class of service Possible value: <ds-range>: syntax: 1,5-7, available from 0 to 63 <class>: 1: high, 0: low Example: GSW-2494(qos)# set diffserv 0-20 1 show Syntax: show Description: To display the information of the mode you choose.
  • Page 171 Description: The Enable here is used for the activation snmp or set-community. Argument: None. Possible value: None. Example: GSW-2494(snmp)# enable snmp GSW-2494(snmp)# enable set-ability disable Syntax: disable snmp disable set-ability Description: The Disable here is used for the de-activation of snmp or set-community.
  • Page 172 <community>:trap community name Possible value: trap number: 1 to 6 port:1~65535 Example: GSW-2494(snmp)# set get-community public GSW-2494(snmp)# set set-community private GSW-2494(snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP. Argument: None.
  • Page 173 <length >(bytes): Maximum Packet Length can be accepted Possible value: <range> : syntax 1,5-7, available from 1 to 24 <length>(bytes): 1518/1532/9216 Example: GSW-2494(max-pkt-len)# set len 1-8 9216 show Syntax: show Description: To show current setting of Maximum Packet Length setting.
  • Page 174 Description: To set up the mode of IGMP Snooping. Argument: <status> 0:disable , 1:active , 2:passive Possible value: <status> 0,1,2 Example: GSW-2494(igmp)# set igmp-snooping 2 show Syntax: show Description: To display IGMP snooping mode and IP Multicast Table. Argument: None...
  • Page 175 To set up the delay time for DHCP Boot. Argument: <sec>:range syntax: 0, 1-30. The value “0” is to disable dhcp-boot delay Possible value: <sec>:0-30 Example: GSW-2494(dhcp-boot)# set dhcp-boot 30 show Syntax: show Description: To display the status of DHCP Boot.
  • Page 176 #: sym/asym vlan setting. 1: symmetric vlan, 0: asymmetric vlan Possible value: vid: range from 1 to 4094 name: tag-vlan name range: from 1 to 24 # :0,1 Example: GSW-2494(vlan)# set tag-group 2 VLAN-2 2-5,6,15-13 0 Publication date: May, 2005 Revision A1...
  • Page 177 1,5-7 Possible value: name: port-vlan name range: available from 1 to 24 Example: GSW-2494(vlan)# set port-group VLAN-1 2-5,6,15-13 set mode metro [up-link] Syntax: set mode metro [up-link] Description: To create metro groups, and select a port(s) as up-link port.
  • Page 178 Possible value: range : available from 1 to 24 vid: available from 1 to 4094 Example: GSW-2494(vlan)# set port-role 5 hybrid 6 enable sym-vlan <range> Syntax: enable sym-vlan <range> Description: To drop frames from the non-member port.
  • Page 179 To drop frames from the non-member port. Argument: range : which port(s) you want to set. Possible value: range: available from 1 to 24 Example: GSW-2494(vlan)# disable sym-vlan 5-10 enable drop-untag Syntax: enable drop-untag <range> Description: To drop the untagged frames.
  • Page 180 To delete the tag-based vlan group. Argument: vid: which vlan group you want to delete. Possible value: vid: available from 1 to 4094 Example: GSW-2494(vlan)# del tag-group 2 del port-group <name> Syntax: del port-group <name> Description: To delete the port-based vlan group.
  • Page 181 User Manual show pvid Syntax: show pvid Description: To display pvid, ingress/egress rule. Argument: None Possible value: None Example: GSW-2494(vlan)# show pvid Port PVID Rule1 Rule2 Port Rule Untag Vid ------ ------ --------- --------- ----------- ----------- Disable Disable Access Disable...
  • Page 182 <mac> : mac address, format: 01-02-03-04-05-06, '?' can be used <vid> : vid: vlan id, from 1 to 4094; '?' as don't care, 0 as untagged Possible value: None Example: GSW-2494(mac-table-information)# search 1-24 ??-??-??-??-??-?? ? MAC Table List Alias MAC Address Port VID State...
  • Page 183 Argument: <#> : age-timer in seconds, 0, 10 to 65535. The value zero disables aging Possible value: None Example: GSW-2494(mac-table-maintain)# set aging 300 GSW-2494(mac-table-maintain)# set flush Syntax: set flush Description: To delete all of the MACs that is learned dynamically.
  • Page 184 <vid> : vlan id. 0, 1-4094. vid must be zero if vlan mode is not tag-based [alias] : mac alias name, max 15 characters Possible value: None Example: GSW-2494(mac-table-static-mac)# add 00-02-03-04-05-06 3 0 aaa GSW-2494(mac-table-static-mac)# Syntax: del <mac> <vid> Description: To remove the static mac entry.
  • Page 185 To set up the mac alias entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 <alias> : mac alias name, max 15 characters Possible value: None Example: GSW-2494(mac-table-alias)# set 00-44-33-44-55-44 www GSW-2494(mac-table-alias)# Syntax: del <mac> Description: To delete the mac alias entry. Argument: <mac>...
  • Page 186 Syntax: show Description: To display the mac alias entry. Argument: None Possible value: None Example: GSW-2494(mac-table-alias)# show MAC Alias List MAC Address Alias ----- ----------------- ---------------- 00-02-03-04-05-06 aaa 00-33-03-04-05-06 ccc 00-44-33-44-55-66 rrr GSW-2494(mac-table-alias)# Publication date: May, 2005 Revision A1...
  • Page 187 <join>: available from 20 to 100 <leave>: available from 60 to 300 <leaveall>: available from 1000 to 5000 Leave Time must equal double Join Time at least. Example: GSW-2494(gvrp)# set timer 2-8 25 80 2000 Publication date: May, 2005 Revision A1...
  • Page 188 Possible value: <range>: syntax 1,5-7, available from 1 to 24 <normal|non-participant>: normal or non-participant Example: GSW-2494(gvrp)# set applicant 1-10 non-participant set registrar Syntax: set registrar <range> <normal|fixed|forbidden> Description: To set default registrar mode for each port.
  • Page 189 User Manual Example: GSW-2494(gvrp)# show counter 2 GVRP Counter port: 2 Counter Name Received Transmitted -------------------- -------- ----------- Total GVRP Packets Invalid GVRP Packets ---- LeaveAll message JoinEmpty message JoinIn message LeaveEmpty message Empty message show config Syntax: show config Description: To display the gvrp configuration.
  • Page 190 User Manual Example: GSW-2494(gvrp)# show config GVRP state: Enable Port Join Time Leave Time LeaveAll Time Applicant Registrar Restricted ---- --------- ---------- ------------- --------------- --------- ---------- 1000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal...
  • Page 191 <Forward Delay>: available from 4 to 30. Possible value: <Bridge Priority> 0 to 61440. <Hello Time>: 1 to 10. <Max. Age>: 6 to 40. <Forward Delay>: 4 to 30. Example: GSW-2494(stp)# set config 61440 2 20 15 Publication date: May, 2005 Revision A1...
  • Page 192 <path cost>: 0, 1-200000000. <priority> : 0 to 240 <edge_port> : yes / no <admin p2p>: auto / true / false Example: GSW-2494(stp)# set port 1-16 0 128 yes auto show status Syntax: show status Description: To display the status of STP.
  • Page 193 User Manual Example: GSW-2494(stp)# show status STP Status : STP State : Enabled Bridge ID : 00:11:6B:D8:09:1D Bridge Priority : 61440 Designated Root : 00:11:6B:D8:09:1D Designated Priority : 61440 Root Port Root Path Cost Current Max. Age(sec) : 20 Current Forward Delay(sec)
  • Page 194 To display the port information of STP. Argument: None Possible value: None Example: GSW-2494# stp GSW-2494(stp)# show port Port Port Status Path Cost Priority Admin Edge Port Admin Point To Point ==== =========== ========= ======== =============== ==================== 1 DISCARDING 2000000 Auto 2 DISCARDING...
  • Page 195 <active LACP>: active : set the LACP to active mode passive : set the LACP to passive mode Possible value: None Example: GSW-2494(trunk)# set trunk 1-4 lacp 1 active GSW-2494(trunk)# del trunk Syntax: del trunk <port-range> Description: Delete trunk port Argument: <port-range>...
  • Page 196 Syntax: show status Description: To display the aggregator status and the settings of each port. Argument: None Possible value: None Example: GSW-2494(trunk)# show status Trunk Port Setting Trunk Port Status ------------------------------------- ---------------------- port Method Group Active LACP Aggtregator Status...
  • Page 197 Description: To display the detailed information of the LACP trunk group. Argument: <aggtr> : available from 1 to 24 Possible value: None Example: GSW-2494(trunk)# show lacp-detail 2 Aggregator 2 Information: Actor Partner --------------------------------- --------------------------------- System Priority MAC Address System Priority...
  • Page 198 User Manual show lacp-priority Syntax: show lacp-priority Description: To display the value of LACP Priority. Argument: None Possible value: None Example: GSW-2494(trunk)# show lacp-priority LACP System Priority : 32768 GSW-2494(trunk)# Publication date: May, 2005 Revision A1...
  • Page 199 <secret-key> : set up the value of secret-key, and the length of secret-key is from 1 to 31 Possible value: <port-number> : 1~65535, default is 1812 Example: GSW-2494(802.1x)# set state 192.168.1.115 1812 WinRadius GSW-2494(802.1x)# set mode Syntax: set mode <port-range> <mode>...
  • Page 200 2:Auto Possible value: <port range> : 1 to 24 <authorized> : 0, 1 or 2 Example: GSW-2494(802.1x)# set port-control 2 2 set reAuthMax Syntax: set reAuthMax <port-range> <max> Description: The number of reauthentication attempts that are permitted before the port becomes Unauthorized.
  • Page 201 <sec> : timer , range 0-65535 Possible value: <port range> : 1 to 24 <sec> : 0-65535, default is 60 Example: GSW-2494(802.1x)# set quiet-period 2 30 set reAuthEnabled Syntax: set reAuthEnabled <port-range> <ebl> Description: A constant that define whether regular reauthentication will take place on this port.
  • Page 202 <times>: max-times , range 1-10 Possible value: <port range> : 1 to 24 <times>: 1-10, default is 2 Example: GSW-2494(802.1x)# set max-request 2 2 set suppTimeout Syntax: set suppTimeout <port-range> <sec> Description: A timer used by the Backend Authentication state machine in order to determine timeout conditions in the exchanges between the Authenticator and the Supplicant or Authentication Server.
  • Page 203 <port range> : syntax 1,5-7, available from 1 to 24 <sec> : timer , range 1-65535 Possible value: <port range> : 1 to 24 <sec> : 1-65535, default is 30 Example: GSW-2494(802.1x)# set serverTimeout 2 30 GSW-2494(802.1x)# show state Syntax: show state Description:...
  • Page 204 User Manual show mode Syntax: show mode Description: To display the mode of each port. Argument: None Possible value: None Example: GSW-2494(802.1x)# show mode Port Mode ====== ============ Disable Multi-host Disable Disable Disable Disable show security Syntax: show security Description: To display the status of each port.
  • Page 205 Description: To display the parameter settings of each port. Argument: None Possible value: None Example: GSW-2494(802.1x)# show parameter port 1) port control : Auto reAuthMax txPeriod : 30 Quiet Period : 60 reAuthEnabled : ON reAuthPeriod : 3600 max.
  • Page 206 The Set here is used for the activation of sms, email and trap event. Argument: <range>: syntax 1,5-7, trap number. Possible value: available from 1 to 24. Example: GSW-2494(alarm-events)# set sms 1-3 GSW-2494(alarm-events)# set email 1-3 GSW-2494(alarm-events)# set trap 1-3 GSW-2494(alarm-events)# set all 1-3 Syntax: del sms <range>...
  • Page 207 Description: The Show here is used to display the configuration of alarm event. Argument: None. Possible value: None. Example: GSW-2494(alarm-events)# show Events Email SMS Trap ----------------------------------------- 1 Cold Start 2 Warm Start 3 Link Down 4 Link Up 5 Authentication Failure...
  • Page 208 <#>: 1 to 6 Example: GSW-2494(alarm-email)# set server 192.168.1.6 GSW-2494(alarm-email)# set user admin Password: Confirm Password: GSW-2494(alarm-email)# set mail-address 1 abc@mail.abc.com Syntax: del <#> Description: The Del here is used to remove the configuration of E-mail address. Argument: <#>: email address number, range: 1 to 6 Possible value: <#>: 1 to 6...
  • Page 209 <#>: mobile phone number, range: 1 to 6 <phone-number>: phone number Possible value: <#>: 1 to 6 Example: GSW-2494(alarm-sms)# set server 192.168.1.7 GSW-2494(alarm-sms)# set user ruby Password: Confirm Password: GSW-2494(alarm-sms)# set phone-number 1 0968777777 Publication date: May, 2005 Revision A1...
  • Page 210 The Del here is used to remove the configuration of mobile phone number. Argument: <#>: mobile phone number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: GSW-2494(alarm-sms)# del 3 show Syntax: show Description: The Show here is to display the configuration of SMS trap event.
  • Page 211 Syntax: show Description: The Show for alarm here is used to display the configuration of Trap, SMS or E-mail. Argument: None. Possible value: None. Example: GSW-2494(alarm)# show events GSW-2494(alarm)# show email GSW-2494(alarm)# show sms Publication date: May, 2005 Revision A1...
  • Page 212 To confirm that whether the remote end-station or switch itself is alive or not. Argument: [ip] : ip address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. tw.yahoo.com Example: GSW-2494(diag)# ping 192.168.1.115 Gateway : 192.168.1.253 192.168.1.115 is alive. Publication date: May, 2005 Revision A1...
  • Page 213 Argument: None. Possible value: None. Example: GSW-2494(log)# show Tftp Server : 0.0.0.0 Auto Upload : Disable 1) Wed Apr 13 12:13:27 2005 Link Up [Port 1] 2) Wed Apr 13 12:13:26 2005 Link Down [Port 1] 3) Wed Apr 13 11:58:31 2005 Login [admin]...
  • Page 214 GSW-2494(log)# upload enable auto-upload Syntax: enable auto-upload Description: To enable the auto-upload function. Argument: None. Possible value: None. Example: GSW-2494(log)# enable auto-upload disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: None. Possible value: None. Example: GSW-2494(log)# disable auto-upload...
  • Page 215 <filepath> Description: To set up the image file that will be upgraded. Argument: <filepath>: upgrade file path Possible value: <filepath>: upgrade file path Example: GSW-2494(firmware)# set upgrade-path GSW2494_v0.96.bin.gz upgrade Syntax: upgrade Description: To run the upgrade function. Argument: None...
  • Page 216 To set up the filepath and filename that will be exported. Argument: <filepath>:filepath and filename Possible value: <filepath>:filepath and filename Example: GSW-2494(config-file)# set export-path log/21511.txt set import-path Syntax: set import-path <filepath> Description: To set up the filepath and filename that will be imported.
  • Page 217 Syntax: export user-conf Description: To run the export user-conf function. Argument: None Possible value: None Example: GSW-2494(config-file)# export user-conf Export sucessful. import start Syntax: import start Description: To run the import start function. Argument: None Possible value: None...
  • Page 218 User Manual show Syntax: show Description: To display the config-file information. Argument: None Possible value: None Example: GSW-2494(config-file)# show TFTP Server IP Address: 192.168.3.111 Export Path and Filename: nmap/123.ts Import Path and Filename: user123.txt Publication date: May, 2005 Revision A1...
  • Page 219 <ip> Description: To set up the IP address of tftp server. Argument: <ip>: tftp server ip Possible value: <ip>: tftp server ip Example: GSW-2494(tftp)# set server 192.168.3.111 show Syntax: show Description: To display the information of tftp server. Argument: None...
  • Page 220 To set up the timer of autologout. Argument: <time>: range 1 to 3600 seconds, 0 for autologout off, current setting is 180 seconds. Possible value: <time>: 0,1-3600 Example: GSW-2494# autologout 3600 Set autologout time to 3600 seconds reboot reboot Syntax: reboot Description: To reboot the system.

  • Page 221: Maintenance

    User Manual 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty The installed building premise cable is faulty The port may be faulty 5-2.

  • Page 222: Appendix A Technical Specifications

    User Manual Appendix A Technical Specifications Features • 22 (10/100/1000Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE802.3, 802.3u, 802.3z and 802.3ab. • 2 Gigabit TP/SFP fiber are dual media ports with auto detected function. • Non-blocking store-and-forward shared-memory Web-Smart switched. •...
  • Page 223 User Manual Hardware Specifications Standard Compliance: IEEE802.3/802.3ab / 802.3z / 802.3u / 802.3x Network Interface: Configuration Mode Connector Port 10/100/1000Mbps Gigabit TP NWay TP (RJ-45) 1 - 24 1000Base-SX Gigabit Fiber 23,24(Option) 1000 FDX *SFP 1000Base-LX Gigabit Fiber 23,24(Option) 1000 FDX *SFP 1000Base-LX Single Fiber WDM (BiDi) 1000 FDX 23,24(Option)
  • Page 224 User Manual Diagnostic LED: System LED : Power, CPU Per Port LED: 10/100/1000M TP Port 1 to 24 : LINK/ACT, 10/100/1000Mbps 1000M SFP Fiber Port 23,24 : SFP(LINK/ACT) Power Requirement AC Line Voltage 100∼240 V Frequency 50∼60 Hz Consumption Ambient Temperature 0°...

  • Page 225: Management Software Specifications

    User Manual Management Software Specifications Auto-negotiation support on 10/100/1000 Base- TX ports, Web browser or console interface can set transmission speed (10/100/1000Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection. Management Agent SNMP support;...

  • Page 226: Appendix B Null Modem Cable Specifications

    User Manual Appendix B Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable. Function Mnemonic Carrier...

Table of Contents
