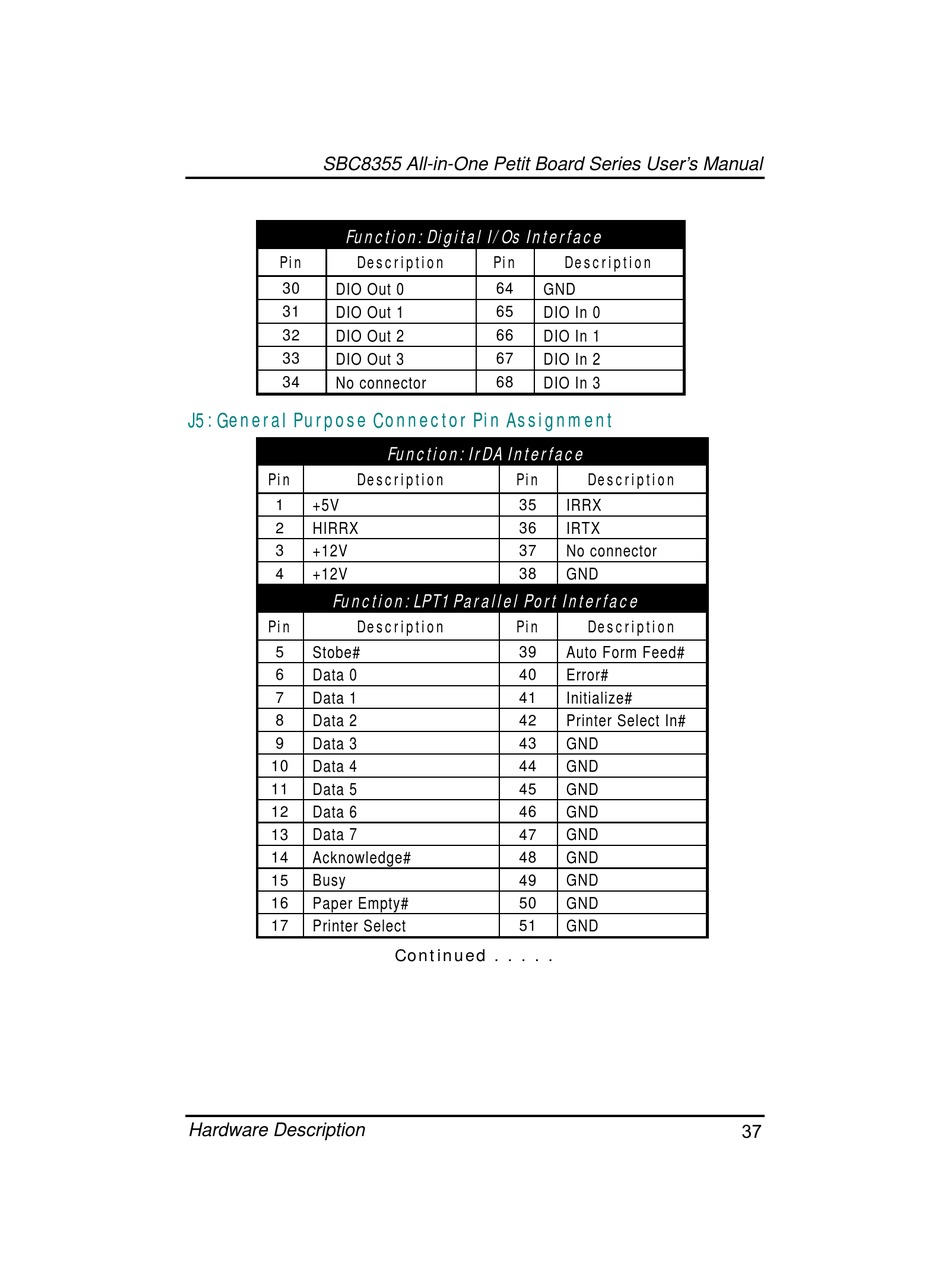

SBC8355 All-in-One Petit Board Series User's Manual
Function: Digital I/Os Interface
Pin Description
30 DIO Out 0
31
DIO Out 1
32 DIO Out 2
33
DIO Out 3
34 No connector
J5: General Purpose Connector Pin Assignment
Pin Description
1 +5V
2 HIRRX
+12V
3
4 +12V
Function: LPT1 Parallel Port Interface
Pin Description
5 Stobe#
6 Data 0
Data 1
7
8 Data 2
9 Data 3
10 Data 4
11 Data 5
12 Data 6
13 Data 7
Acknowledge#
14
15 Busy
16 Paper Empty#
17 Printer Select
Hardware Description

Pin Description
64 GND
65
DIO In 0
66 DIO In 1
67
DIO In 2
68 DIO In 3
Function: IrDA Interface
Pin
35 IRRX
36 IRTX
No connector
37
38 GND
Pin
39 Auto Form Feed#
40 Error#
Initialize#
41
42 Printer Select In#
43 GND
44 GND
45 GND
46 GND
47 GND
GND
48
49 GND
50 GND
51 GND
Continued . . . . .
Description
Description
