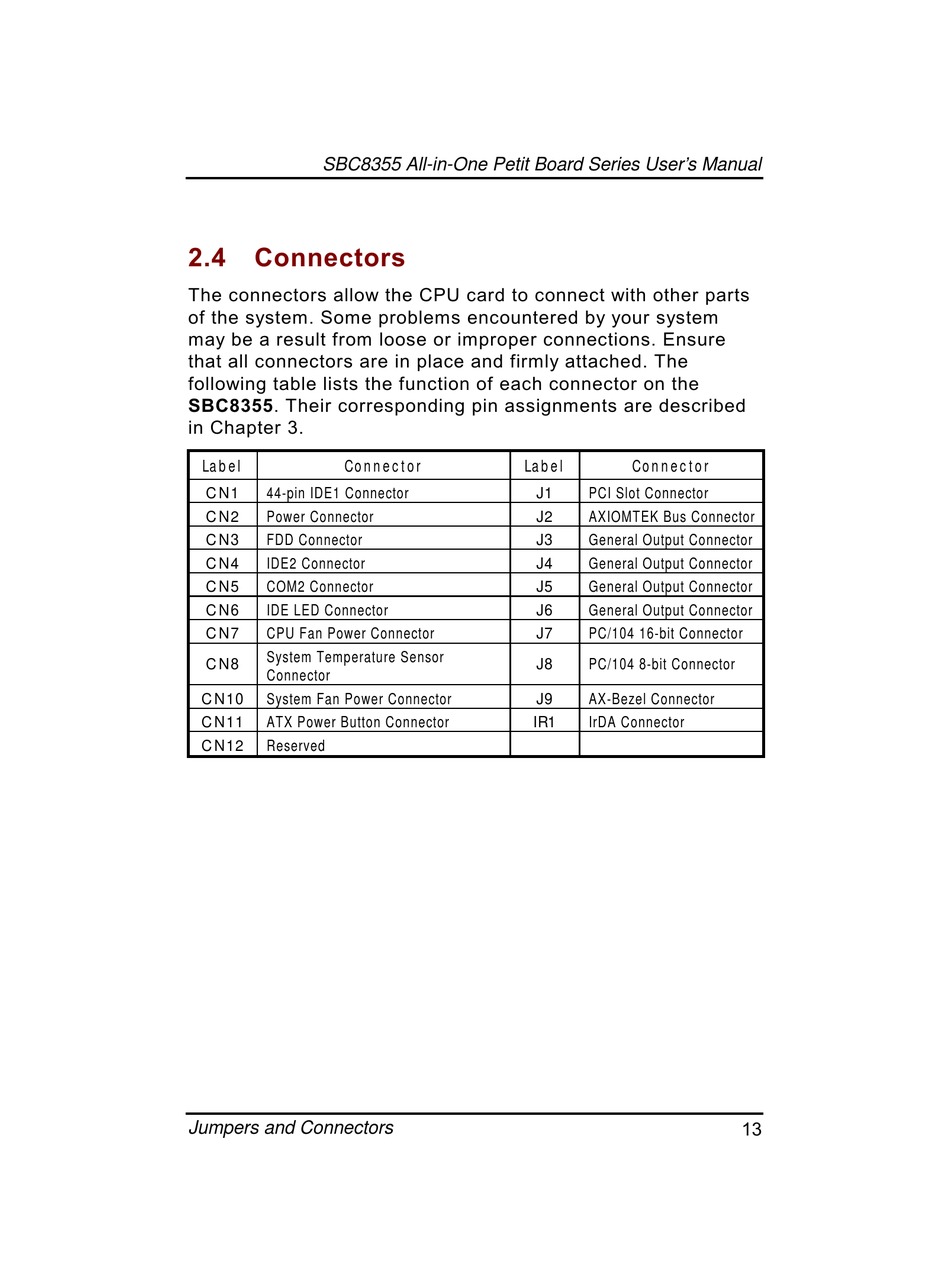

SBC8355 All-in-One Petit Board Series User's Manual
" + ,




4#(










;















5

































4
9

Label Connector
CN1
44-pin IDE1 Connector
CN2
Power Connector
CN3
FDD Connector
CN4
IDE2 Connector
CN5
COM2 Connector
CN6
IDE LED Connector
CN7
CPU Fan Power Connector
System Temperature Sensor
CN8
Connector
CN10
System Fan Power Connector
CN11
ATX Power Button Connector
CN12
Reserved
Jumpers and Connectors

Label Connector
J1
PCI Slot Connector
J2
AXIOMTEK Bus Connector
J3
General Output Connector
J4
General Output Connector
J5
General Output Connector
J6
General Output Connector
J7
PC/104 16-bit Connector
J8
PC/104 8-bit Connector
J9
AX-Bezel Connector
IR1
IrDA Connector
