DigiMod 3004PFC4

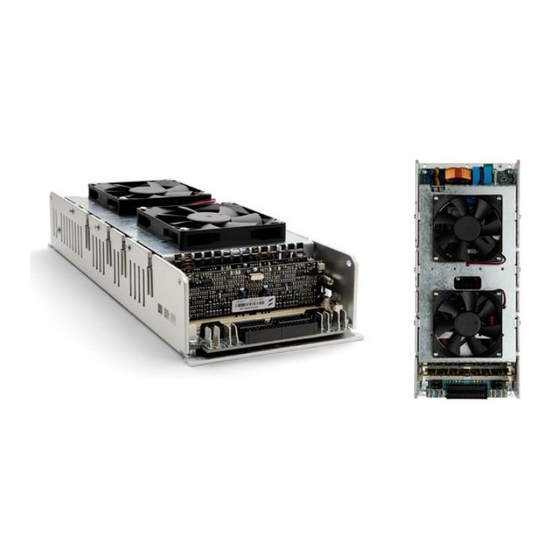

The DigiMod 3004PFC4 is an amplifier module featuring 4
output channels, each one able to deliver up to 2000 W on 4 �.
The highly compact design, integrating all 4 channels and the
power supply in a single chassis, makes the DigiMod 3004PFC4
a unique product. Capable of amazing sonic performance, the
6-layers PCB and a new power supply design equipped with PFC
and featuring Smart Rails Management grant incredible efficiency.
The DigiMod 3004PFC4 is fully compatibile with all existing
Powersoft DSP solutions, and together with the DSP-4, it is the
most advanced platform for 3-way active systems.

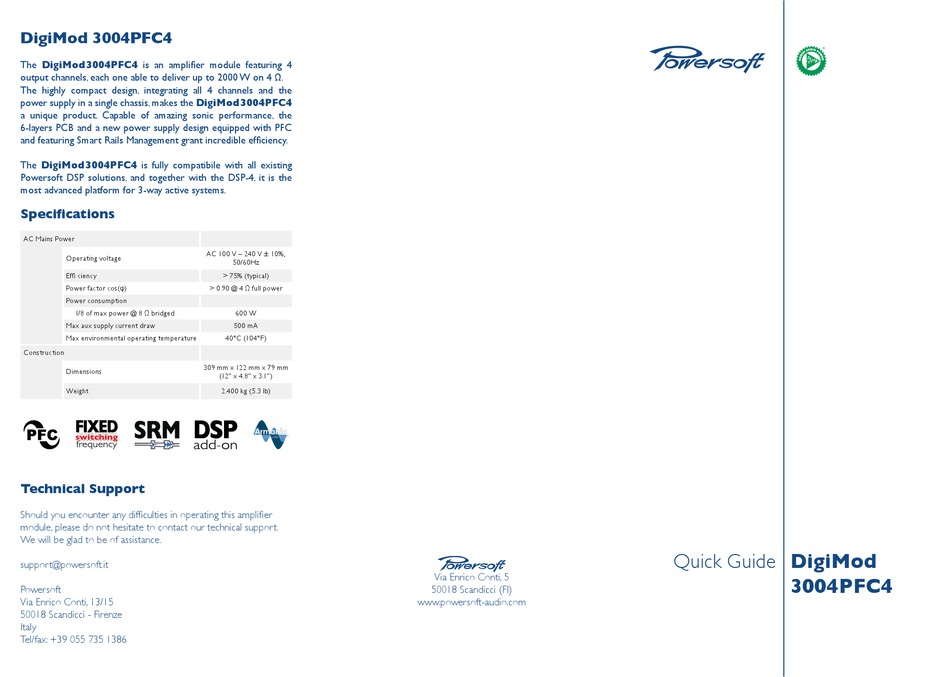

Specifications

AC Mains Power
Operating voltage
Effi ciency
Power factor cos(φ)
Power consumption
I/8 of max power @ 8 � bridged
Max aux supply current draw
Max environmental operating temperature
Construction
Dimensions
Weight

Technical Support

Should you encounter any difficulties in operating this amplifier
module, please do not hesitate to contact our technical support.
We will be glad to be of assistance.
support@powersoft.it
Powersoft
Via Enrico Conti, 13/15
50018 Scandicci - Firenze
Italy
Tel/fax: +39 055 735 1386
AC 100 V – 240 V ± 10%,
50/60Hz
> 75% (typical)
> 0.90 @ 4 � full power
600 W
500 mA
40°C (104°F)
309 mm x 122 mm x 79 mm
(12" x 4.8" x 3.1")
2.400 kg (5.3 lb)
Via Enrico Conti, 5
50018 Scandicci (FI)
www.powersoft-audio.com
®
Quick Guide DigiMod
3004PFC4
