Section 2 - Installation
3. Attach the PoE splitter's LAN OUT to the DWM-311's DATA1 port on the DWM-311.
4. Finally, connect the PoE injector's LAN-IN port to an available Ethernet port on
your end device and plug in the injector's power cord into a power outlet as
shown in the diagram.
Note: the above case assumes you are using a D-Link DPE-301GI 1-Port Gigabit PoE
Injector and D-Link DPS-301GS 1-Port Gigabit 30W PoE Splitter (sold separately).
Other PoE configurations may vary.
Connecting Devices
After the DWM-311 has been successfully installed, the modem can be connected
to the end device via either of the following connection methods:
Over Ethernet
The Ethernet port can be connected to an end device. Use a standard Category 5/5e/6
RJ-45 Ethernet cable to connect the end device to the modem. The port will auto-
negotiate to the highest possible port speed based on the connected device. Note
that the DWM-311 supports a maximum transfer speed over Ethernet of 100 Mbps.
Over USB 2.0
To connect the modem over USB, connect a micro-USB cable (not included) to the
port marked DATA2 on the back panel. Insert the other end of the cable into a free
USB port of the device you wish to connect.
Note: The modem cannot accept power over micro-USB, only over mini-USB through
the port labelled with the symbol.
D-Link DWM-311 User Manual
DWM-311
DIV PRI
Connect DATA1 on the
DWM-311 to the Ethernet
port labelled PoE OUT on the
PoE injector. Connect the
Mini-USB port to the
s p l i t te r 's D C OUT using an
adaptor (sold separately)
PoE Splitter
DC OUTL AN OUT
PoE Injector
Connect a device to the
Ethernet port labelled LAN
PoE OUT
IN on the PoE injector
LAN IN 54V IN
End Device Power In

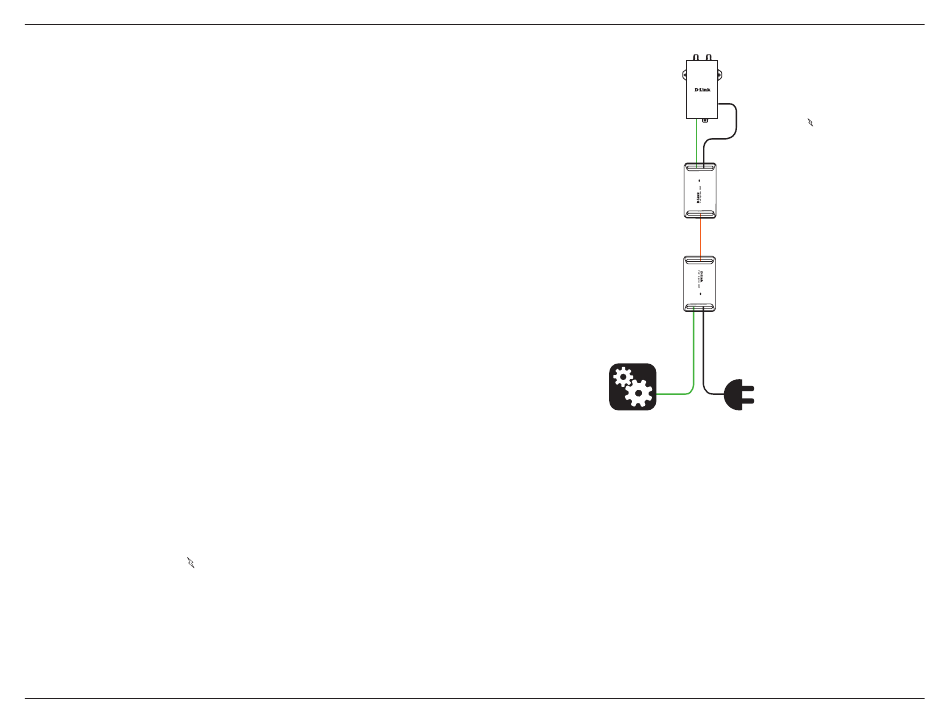

Powering the modem using a PoE Kit (sold separately)
Connect the power
adapter to the PoE injector
and a power outlet
