Special Tools – Chassis - KTM 990 Adventure Repair Manual

2-9
1
8
bl
FIG PART NO
1 151.12.017.000
2 584.29.086.000
3 584.29.089.000
4 584.29.091.000
5 584.29.092.000
6 600.03.022.000
7 600.10.013.000
8 600.29.018.000
9 600.29.020.000
10 600.29.055.000
11 600.29.055.100
12 600.29.056.000
13 600.29.057.000
14 600.29.057.100
15 625.29.055.000

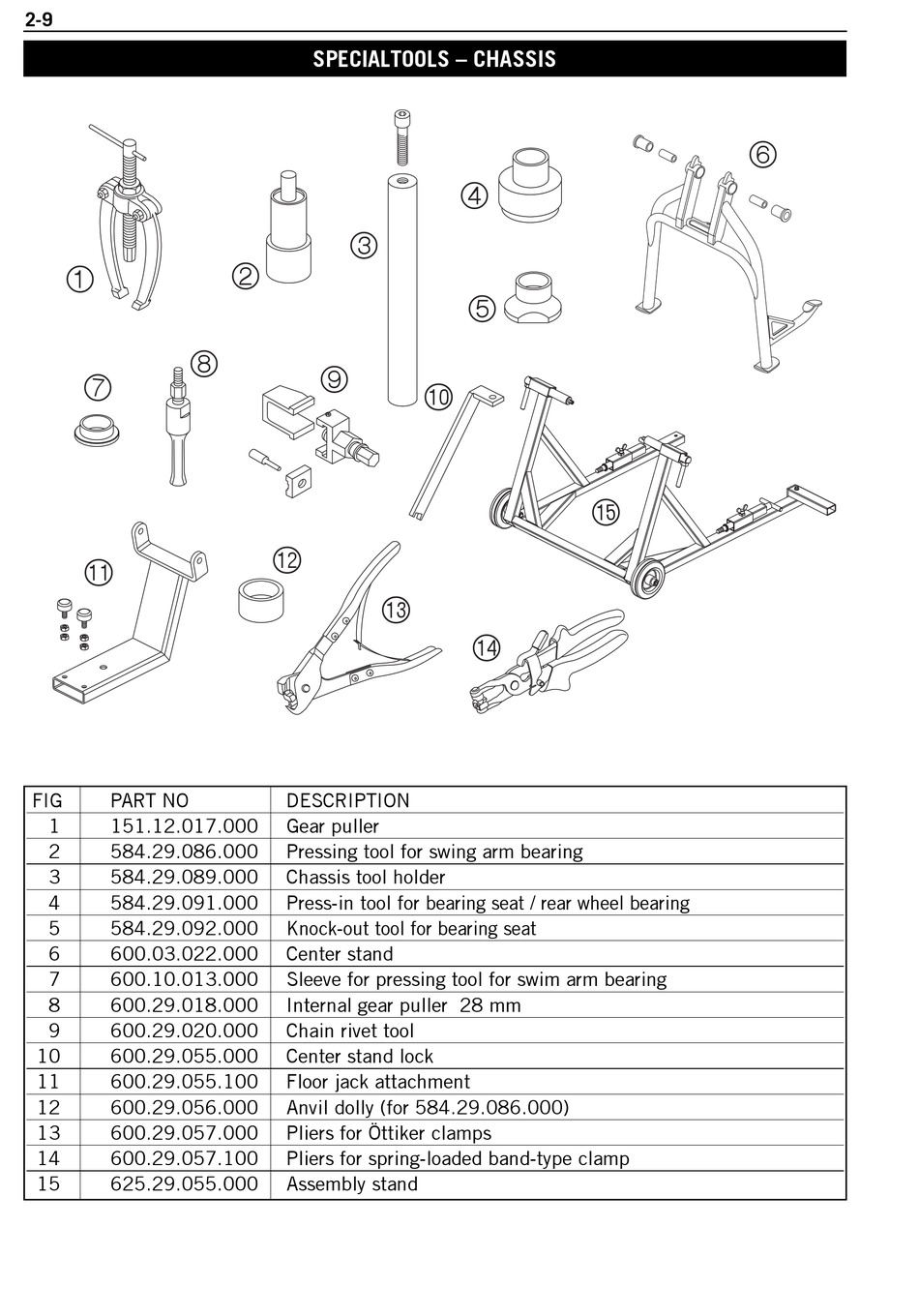

SPECIALTOOLS – CHASSIS
3
2
9
bm
bn
DESCRIPTION
Gear puller
Pressing tool for swing arm bearing
Chassis tool holder
Press-in tool for bearing seat / rear wheel bearing
Knock-out tool for bearing seat
Center stand
Sleeve for pressing tool for swim arm bearing
Internal gear puller 28 mm
Chain rivet tool
Center stand lock
Floor jack attachment
Anvil dolly (for 584.29.086.000)
Pliers for Öttiker clamps
Pliers for spring-loaded band-type clamp
Assembly stand
4
5
bk
bp
bo
6
