Intake system

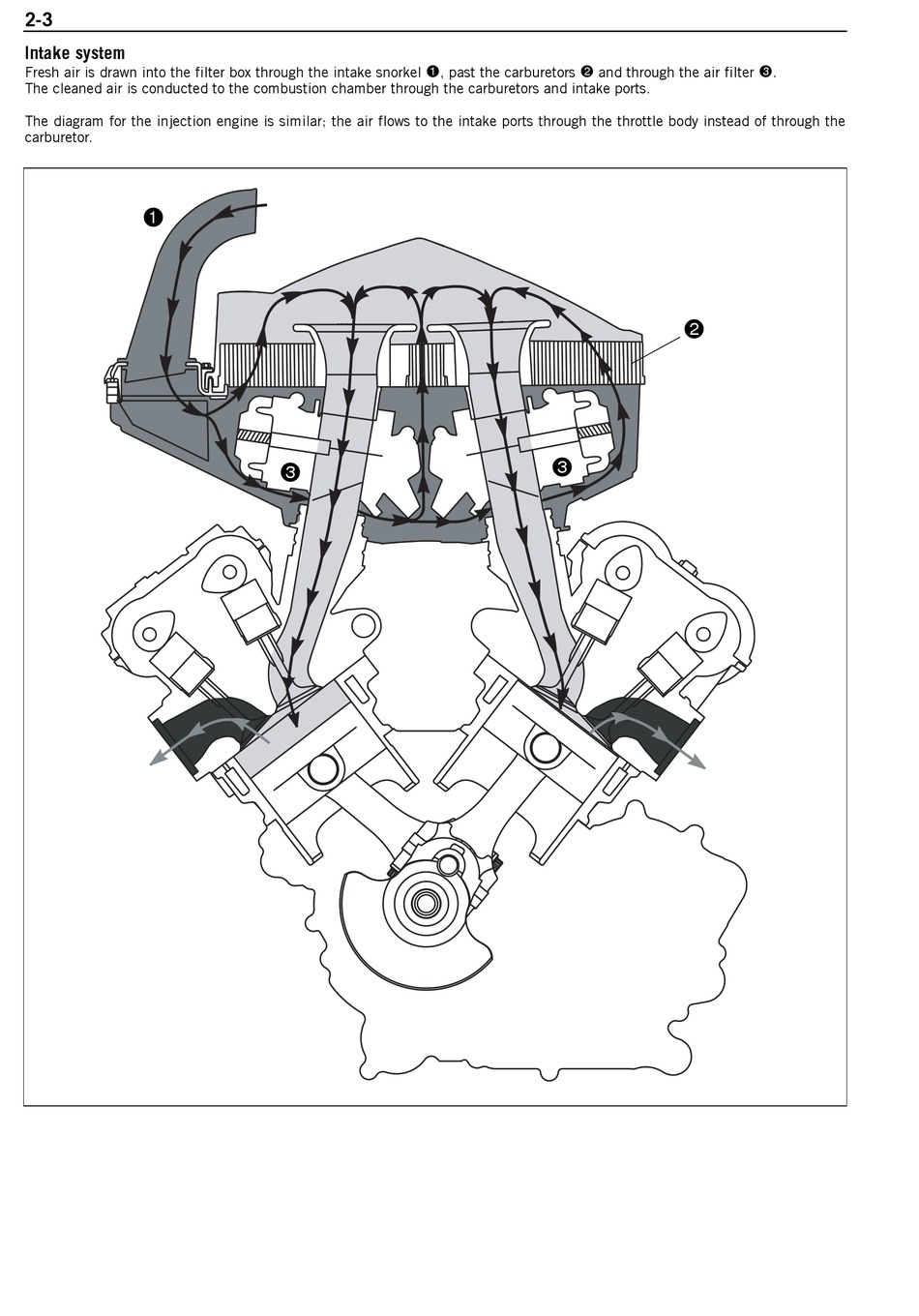

Fresh air is drawn into the filter box through the intake snorkel , past the carburetors and through the air filter .
1 2 3
The cleaned air is conducted to the combustion chamber through the carburetors and intake ports.
The diagram for the injection engine is similar; the air flows to the intake ports through the throttle body instead of through the
carburetor.
