Kuryakyn 1198 Installation Instructions Manual

z O M B I E W I N D S h I E L D T R I M
fIT S: '96 -UP fLh T, fLhTC, f LhT CU, fLhx

PARTS INCLUDED

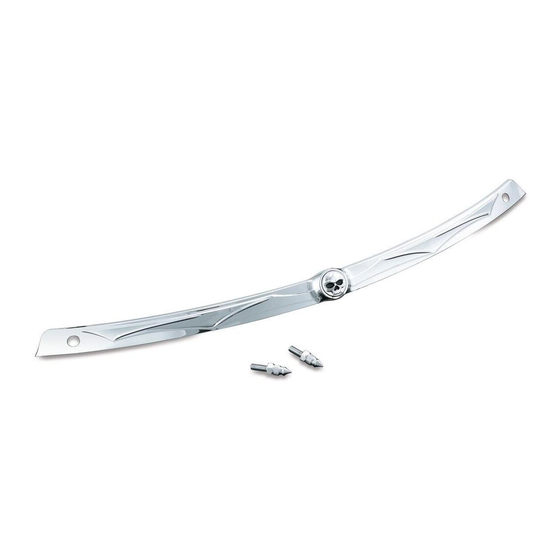

1 Zombie Windshield Trim
1 Hardware Kit Including:
2 1/4" Flat Washer
1 1/4"-20 x 5/8 Socket Button Head Cap Screw (SBHCS)
2 1/4"-20 x .625" Knurled Spike Fasteners
2 1/4"-20 x 1" Knurled Spike Fasteners
1 Zombie Emblem
1 Installation Instructions
Please read and understand entire instructions before starting installation.
ThANk YOU fOR ChOOSING küRYAkYN!
IN ORDER TO PROTECT YOU AND OThERS fROM POSSIBLE INjURY
AND/OR PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION
TO ALL INSTRUCTIONS, WARNINGS, CAUTIONS AND ATTENTION NOTES
REGARDING ThE USE AND CARE Of ThIS PRODUCT.
WARNING! THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE
CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR
SERIOUS INJURY.
CAUTION! This indication alerts you to the fact that ignoring the contents described
herein can result in potential injury or material damage.
ATTENTION!This indication alerts you to the fact that ignoring the contents
described herein may negatively affect product performance and
functionality.

TOOLS SUGGESTED

Set of hex wrenches, Torx wrenches, combination wrenches
STRICTLY OBSERVE ThE fOLLOWING GUIDELINES IN ORDER TO USE
ThE PRODUCT PROPERLY AND AVOID POTENTIALLY DANGEROUS
ACCIDENTS.
NOTE; If INSTALLING WINDShIELD TRIM
ON küRYAkYN® AIRMASTER™ fAIRING,
USE ThE 1/4"-20 x 1" kNURLED SPIkE
fASTENERS.

PROCEDURE

STEP 1 Park the motorcycle on a hard, level surface;
turn off the ignition.
1198-12hD-0209
I N S TA L L AT I O N
1 1 9 8
