f o l d I n g s I s s y b a r l u g g a g e r a c k 1 5 5 8
f I ts : ' 84 - u P so f ta I l ( e x. fxs t d , ' 06- uP fxs t / b/ c /s , ' 07- u P fl s tf ), '06 - uP dy n a
a nd '0 4 -u P x l w Ith d etachable s Id e Pl at es
Parts Included
1 Folding Luggage Rack Assembly
1 Hardware Kit, including:
2
1/4-20 x 7/8 Button Socket Cap Screw (BSCS)
2
1/4 Flat Washer
1 Installation Instructions
Please read and understand entire instructions before starting installation.
thank you for choosIng küryakyn!
In order to Protect you and others from PossIble Injury and/
or ProPerty damage or loss, Please Pay close attentIon to all
InstructIons, warnIngs, cautIons and attentIon notes regardIng
the use and care of thIs Product.
WARNING! THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE
CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR
SERIOUS INJURY.
CAUTION! This indication alerts you to the fact that ignoring the contents described herein
can result in potential injury or material damage.
ATTENTION! This indication alerts you to the fact that ignoring the contents described herein
may negatively affect product performance and functionality.
tools suggested
Set of hex wrenches
strIctly observe the followIng guIdelInes In order to use the
Product ProPerly and avoId PotentIally dangerous accIdents.
Procedure
steP 1 Park the motorcycle on a hard, level surface; turn off the ignition.
CAUTION! Avoid damage to the motorcycle. Protect
painted surfaces with a soft cloth or
blanket.

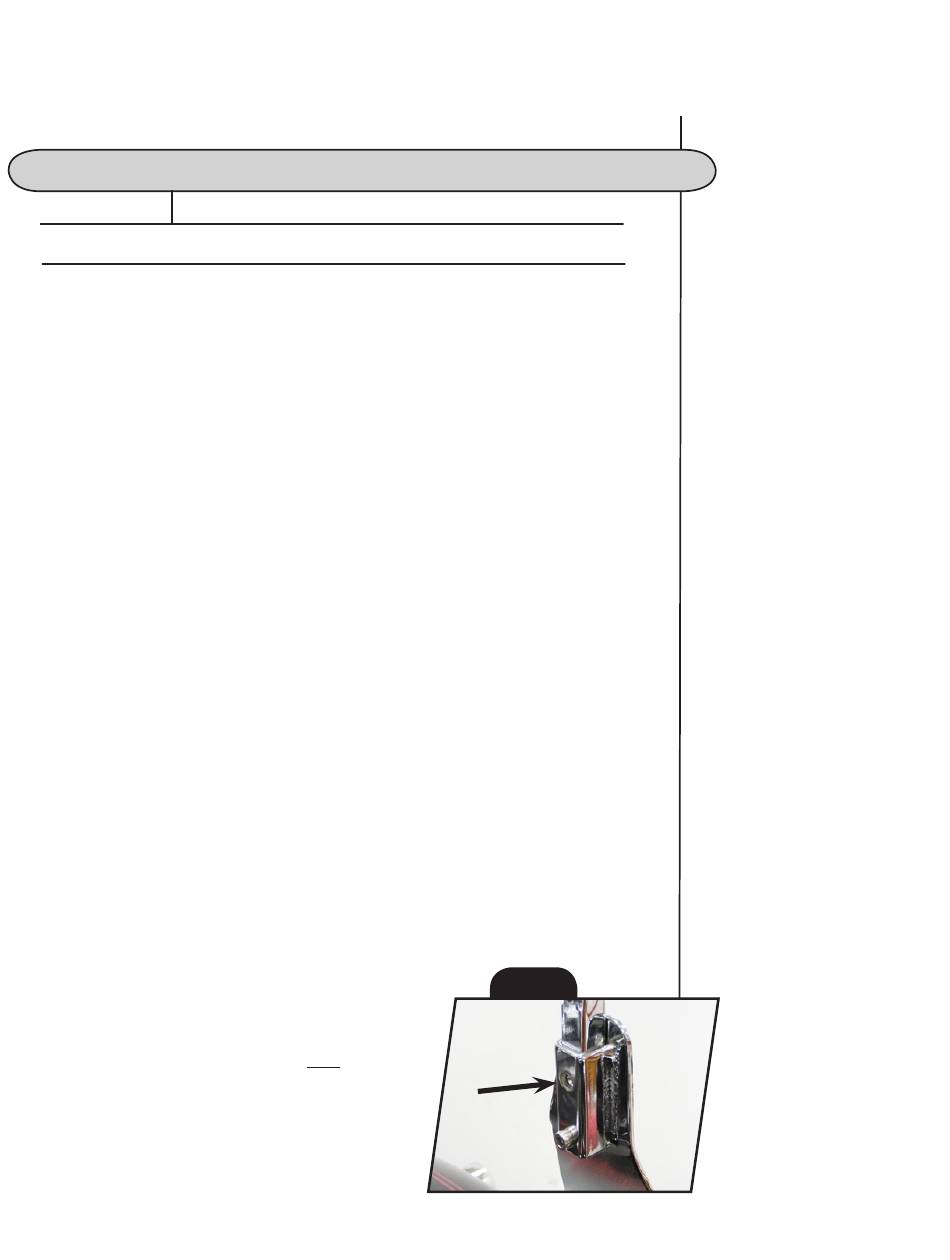

steP 2 Remove the screw shown in PIC.1 from both
of the sideplates; set the screws aside, they will not be
re-used.
-cont.-
1558-11HD-0607
PIc.1
Advertisement
Table of Contents
Related Manuals for Kuryakyn 1558
Summary of Contents for Kuryakyn 1558
- Page 1 CAUTION! This indication alerts you to the fact that ignoring the contents described herein can result in potential injury or material damage. ATTENTION! This indication alerts you to the fact that ignoring the contents described herein may negatively affect product performance and functionality. tools suggested Set of hex wrenches strIctly observe the followIng guIdelInes In order to use the Product ProPerly and avoId PotentIally dangerous accIdents. Procedure steP 1 Park the motorcycle on a hard, level surface; turn off the ignition. CAUTION! Avoid damage to the motorcycle. Protect PIc.1 painted surfaces with a soft cloth or blanket. steP 2 Remove the screw shown in PIC.1 from both of the sideplates; set the screws aside, they will not be re-used. -cont.- 1558-11HD-0607...
- Page 2 steP 3 Position the Folding Sissy Bar Luggage Rack over the bottom screws in the sideplates. See PIC.2. steP 4 Align the holes in the Folding Luggage Rack with the threaded holes in the sideplates; loosely secure the rack to the sideplates with the two included 1/4 flat washers and 1/4-20 BSCS. See PIc.2 PIC.3. steP 5 Flip the luggage rack up so that the magnets secure it to the back of the sissy bar; align the luggage rack and the sissy bar and then tighten the two 1/4-20 screws from STEP 4. steP 6 Ensure proper clearance and operation before riding the motorcycle. ATTENTION! It is the installer’s responsibility to ensure that all of the fasteners (including pre- assembled) are tightened before operation of the motorcycle. Küryakyn will not warranty components lost due to improper installation. Periodic maintenance may be required. PIc.3 CAUTION! Never exceed the manufacturer’s recommended load capacity. Excess loading on the luggage rack could cause damage to your motorcycle, loss or injury. Küryakyn is not responsible for damage, loss or injury caused by exceeding the manufacturer’s load capacity. Ride On! Page f o l d I n g s I s s y b a r InstallatIon InstallatIon...
