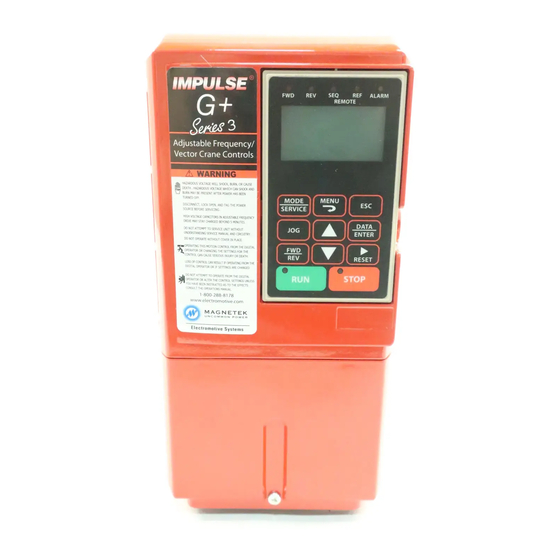

- Page 1 Impulse•G+/VG+ Series 3 Safe-Off Instruction Manual Software #8001.x January 2011 Part Number: 140-10305 © Copyright 2011 Magnetek Addendum to G+ Series 3 (140-10258) and VG+ Series 3 (140-10257) manuals.
- Page 2 Magnetek Products to know, understand and follow all of these requirements. It is the responsibility of the owner of the Magnetek Products to make its employees aware of all of the above listed requirements and to make certain that all operators are properly trained.
-
Page 3: Impulse•G+/Vg+ Series
Disclaimer of Warranty Magnetek, hereafter referred to as Company, assumes no responsibility for improper programming of a drive by untrained personnel. A drive should only be programmed by a trained technician who has read and understands the contents of this manual. Improper programming of a drive can lead to unexpected, undesirable, or unsafe operation or performance of the drive. - Page 4 Table of Contents INTRODUCTION TO SAFE-OFF ......................... 5 CONFIGURING SAFE-OFF .......................... 6 SAFE-OFF TERMINALS ..........................8 January 2011 4 of 9 Impulse•G+/VG+ Series 3 Safe-Off 8001.x PN: 140-10305...
-
Page 5: Introduction To Safe-Off
Introduction to Safe-Off The Safe-Off option, when used with other safety components, provides protection according to EN954-1 Category 3 for safe stop and protection against restart. An Impulse•G+/VG+ Series 3 drive equipped with the Safe-Off option is just one component in a safety control system. To ensure that the Safe-Off function appropriately fulfills the safety requirements of the application, a thorough risk assessment shall be done according to ISO12100 for the whole safety system at the final installation. -
Page 6: Configuring Safe-Off
Configuring Safe-Off Safe-Off requires a special control board and interface board which replace the standard control and interface boards. The only significant difference between the boards is the additional BB, BB1 and SN terminals. The standard drive performance and function is not affected by Safe-Off. The BB and BB1 terminals run off the same 24VDC supply as the S1 ~ S8 terminals. - Page 7 If two separate signal lines from the safety device to inputs BB and BB1 are used as shown on the previous page (Figure 1: Safe-Off Circuitry), the drive does not need to be installed in an IP54 enclosure. If only one signal line from the safety device to the drive is used, and BB and BB1 are linked at the drive, then the drive must be installed in an enclosure with a protection degree of at least IP54 in order to maintain EN954-1, Safety Category 3 compliance.
-
Page 8: Safe-Off Terminals
Safe-Off terminals Safe-Off is configured at the factory prior to shipment. There are no parameters to set and it cannot be turned off in software. Safe-Off involves two digital inputs, BB and BB1, as well as the common on terminal SN. Breaking the connection between SN and either BB or BB1 will immediately disable the drive motor output. - Page 9 January 2011 9 of 9 Impulse•G+/VG+ Series 3 Safe-Off 8001.x PN: 140-10305...
