Lucasey PCEC2410A Installation Instructions

PCEC2410A INSTALLATION INSTRUCTIONS

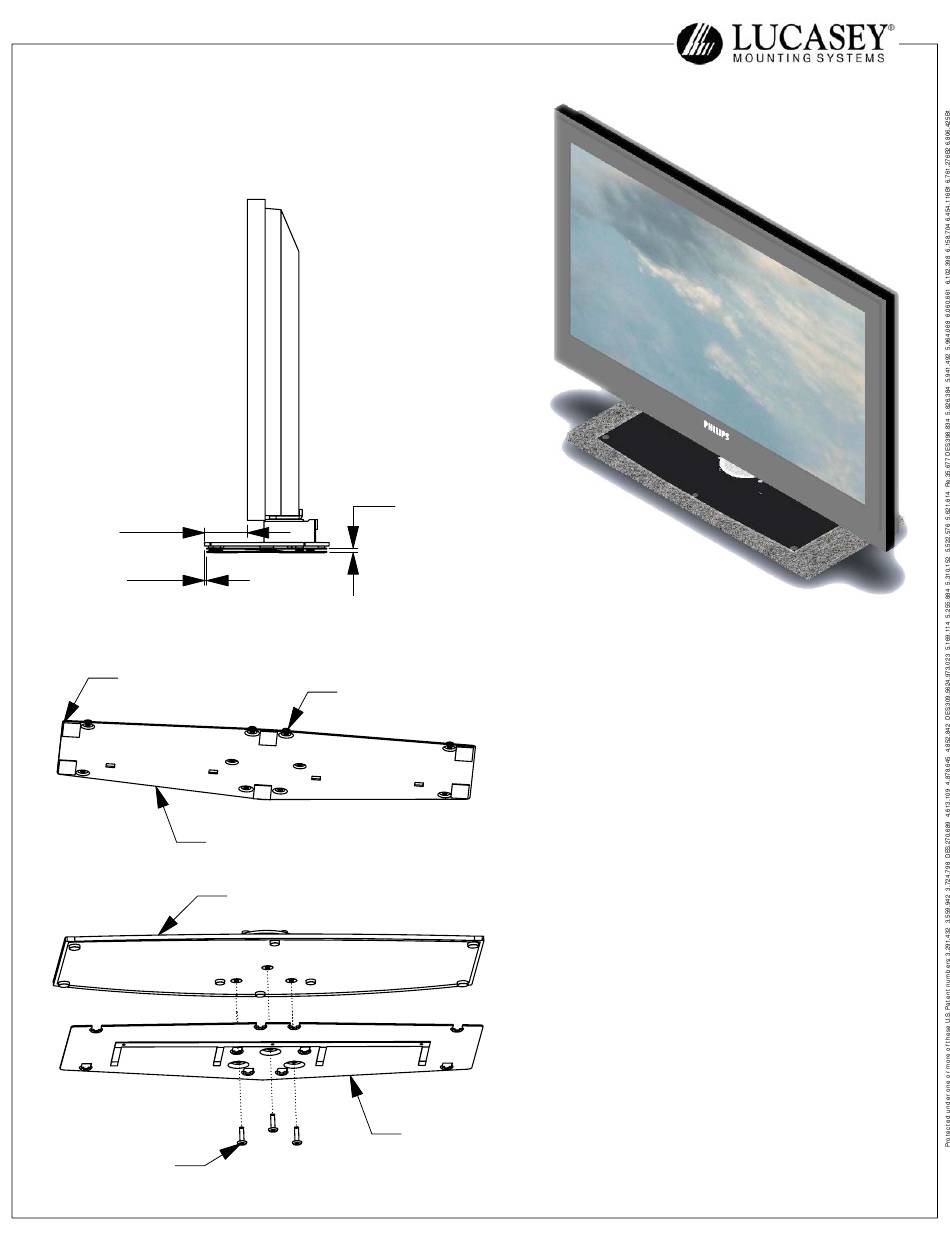

PCEC2410A - Adhesive Furniture Mount
for Philips Models: 37HFL5560, 42HFL5886 & 42HF7945
3-1/2"
1/8"
(6Pl.) Adhesive Pads
Socket Head Screws
(Provided with Monitor)
PCEC2410A_Install (8/08)
Page 1 of 2
3/8"
(10Pl.) Rivets
Bottom Plate
Glass Base (Provided with Monitor)
©2008 Lucasey Manufacturing Corporation, Oakland, California
1. Determine the appropriate location on the furniture
for the monitor. Mark the front edge of the monitor's
glass base. Mark a parallel line 1/8" back from the
previous line with a non-permanent marker.
2. Clean the furniture surface 2x with an alcohol wipe to
remove any residue on the furniture surface.
3. Peel the plastic liner from the Adhesive Pads on
the Bottom Plate. Avoid any accidental contact between
the exposed adhesive and any objects.
4. Carefully line up the front edge of the Bottom Plate
with the second line marked in step 1.
5. Press the Bottom Plate down putting pressure on
each of the six Adhesive Pad Locations.
6. Attach the Top Plate to the Glass Base using three
Socket Head Screws from the bottom of the base.
Top Plate
Component List
1 ... Top Plate
1 ... Bottom Plate
2 ... Long Security Screws
4 ... Short Security Screws
6 ... Flat Washers
www.lucasey.com
