PCEC2410B INSTALLATION INSTRUCTIONS

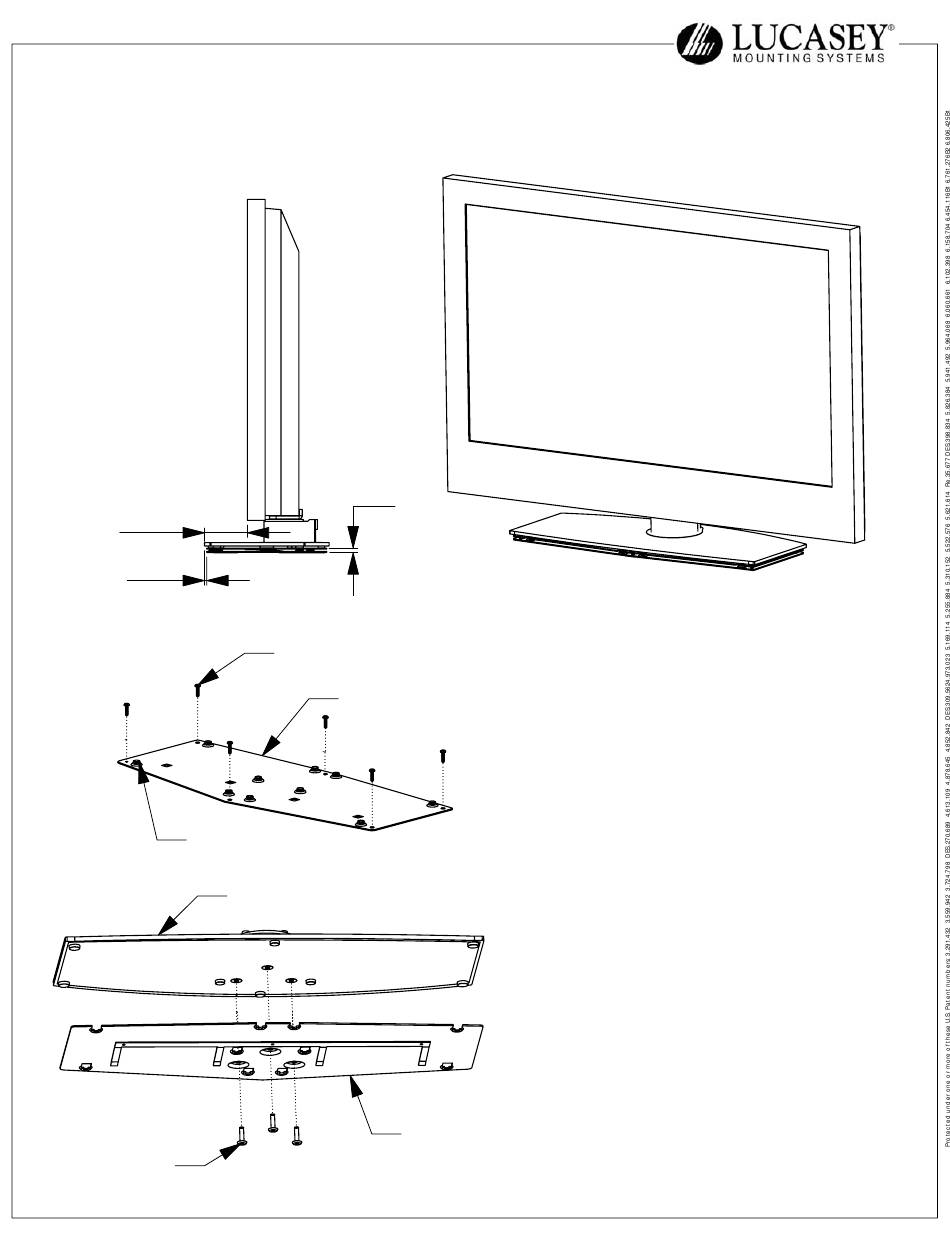

PCEC2410B - Bolt Down Furniture Mount
for Philips Models: 37HFL5560, 42HFL5886 & 42HF7945
3-1/2"
1/8"
(10Pl.) Rivets
Socket Head Screws
(Provided with Monitor)
PCEC2410B_Install (8/08)
Page 1 of 2
3/8"
(6Pl.) Phillips Tapping Screws
Bottom Plate
Glass Base
Top Plate
©2008 Lucasey Manufacturing Corporation, Oakland, California
1. Determine the appropriate location on the furniture
for the monitor. Mark the front edge of the monitor's
glass base on the countertop Mark a parallel line
1/8" back from the previous line.
2. Align the Bottom Plate with the second line and mark
each of the 6 screw hole locations.
3. Drill each of the marked screw locations with a 1/16"
drill bit 3/4" deep.
4. Attach the Bottom Plate with the provided Phillips Tapping
Screws
5. Attach the Top Plate to the Glass Base using three
Socket Head Screws from the bottom of the base.

Component List

1 ... Top Plate
1 ... Bottom Plate
2 ... Long Security Screws
4 ... Short Security Screws
6 ... Flat Washers
6 ... #10 x 1/2" Philips Screws
