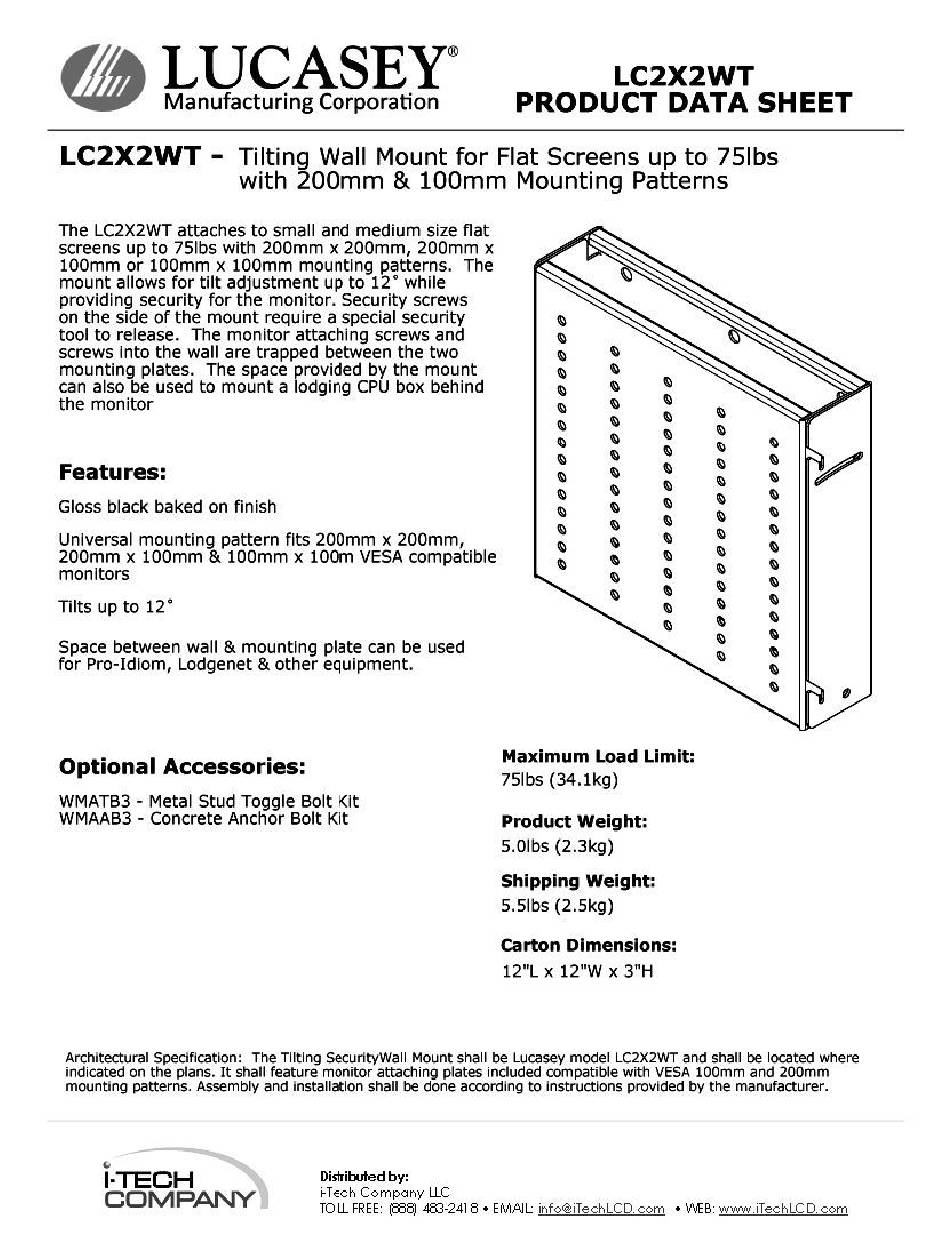

Lucasey LC2X2WT Product Data Sheet

m LUCASEY
^4ttU Manufacturing Corporation
L C 2 X 2 W T
P R O D U C T D A T A S H E E T
L C 2 X 2 W T - Tilting Wall Mount for Flat Screens up to 75lbs
with 200mm & 100mm Mounting Patterns
The LC2X2WT attaches to small and medium size flat
screens up to 75lbs with 200mm x 2 0 0 m m , 2 0 0 m m x
100mm or 100mm x 100mm mounting patterns. The
mount allows for tilt adjustment up to 12° while
providing security for the monitor. Security screws
on the side of the mount require a special security
tool to release. The monitor attaching screws and
screws into the wall are trapped between the two
mounting plates. The space provided by the mount
can also be used to mount a lodging CPU box behind
the monitor
Features:
Gloss black baked on finish
Universal mounting pattern fits 200mm x 2 0 0 m m ,
200mm x 100mm & 100mm x 100m VESA compatible
monitors
Tilts up to 12°
Space between wall & mounting plate can be used
for Pro-Idiom, Lodgenet & other equipment.
Optional Accessories: ™'"ITtT """*
r
75lbs (34.1kg)
WMATB3 - Metal Stud Toggle Bolt <lt
WMAAB3 - Concrete Anchor Bolt Kit Product W e i g h t :
5.0lbs (2.3kg)
Shipping W e i g h t :
5.5lbs (2.5kg)
Carton Dimensions:
1 2 " L x 1 2 " W x 3 " H
Architectural Specification: The Tilting SecurityWall Mount shall be Lucasey model LC2X2WT and shall be located where
indicated on the plans. It shall feature monitor attaching plates included compatible with VESA lOOmm and 200mm
mounting patterns. Assembly and installation shall be done according to instructions provided by the manufacturer.
I-TECH
C O M P A N Y
Distributed by:
i-Tech Company LLC
TOIL FREE: 18881 483-2418 EMAIL info®iTechLCD.com * WEB: www.nechl£D.com
