LC200WT INSTALLATION INSTRUCTIONS

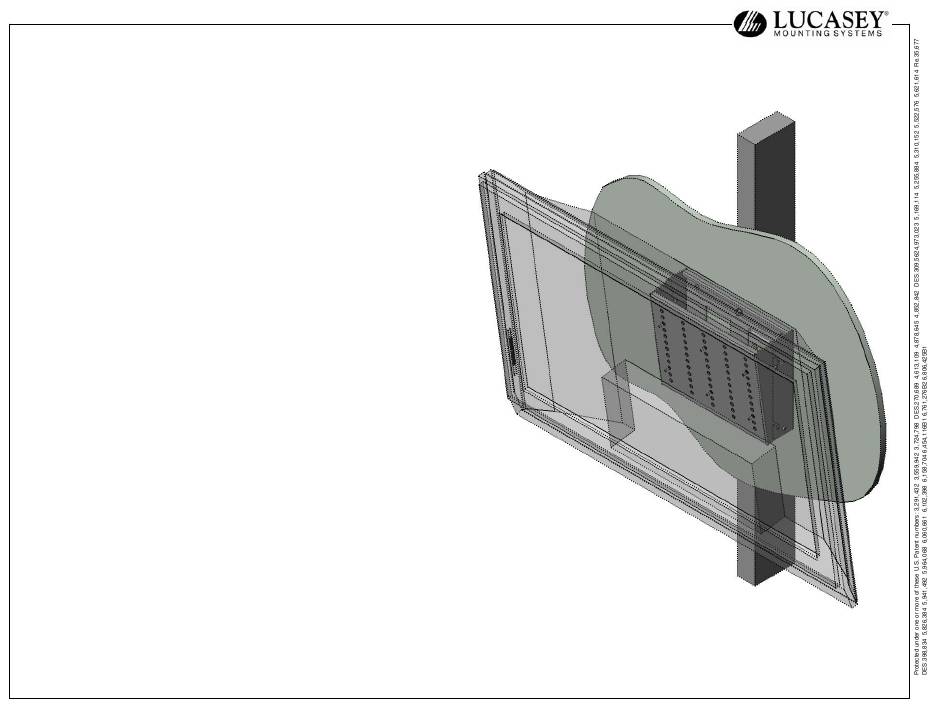

The LC200WT Security Wall Mount with Tilt is designed to
secure up to a 32" flat panel monitor to the wall while
still allowing the monitor to tilt.
The VESA® mounting patterns on the front of the
LC200WT allow it to be mounted to monitors that have
mounting patterns of 200mm x 100mm and 100mm x 100mm.
Convenient cutouts for electrical and A/V wiring in the wall.
The security screws provided with the mount can be used
to prevent easy removal of the monitor without having
the appropriate security tool (purchased separately).
Standard socket head screws are also provided to
mount the monitor without using the security hardware.
Our mounts are tested at four times the rated load
limit to ensure that they can hold the monitor during
seismic or other extreme loading events.
Important! Please read all warnings and cautions before installing the mount.
Caution: Improper installation of this mount may void the warranty on your monitor.
Caution: Wall attachment should be performed by qualified installers only, using construction methods prescribed
by authorized architects or engineers that comply to all applicable codes and standards.
The maximum weight of monitor to be installed on the LC200WT is 75 Lbs. (34.1Kg.)
Inspect all parts to make sure there is no shipping damage. Do not install if any parts are damaged.
Please call 1-800-LUCASEY or 1-510-534-1435 if you have any questions about this installation.
LC200WT (8/07)
Page 1 of 6
LC200WT
Security Wall Mount with Tilt
for up to 32" Flat Screens
©2007 Lucasey Manufacturing Corporation, Oakland, California www.lucasey.com
