Lucasey LC200C9F Installation Instructions Manual

LC200C9F INSTALLATION INSTRUCTIONS
with 200mm x 200mm VESA® Mounting Patterns

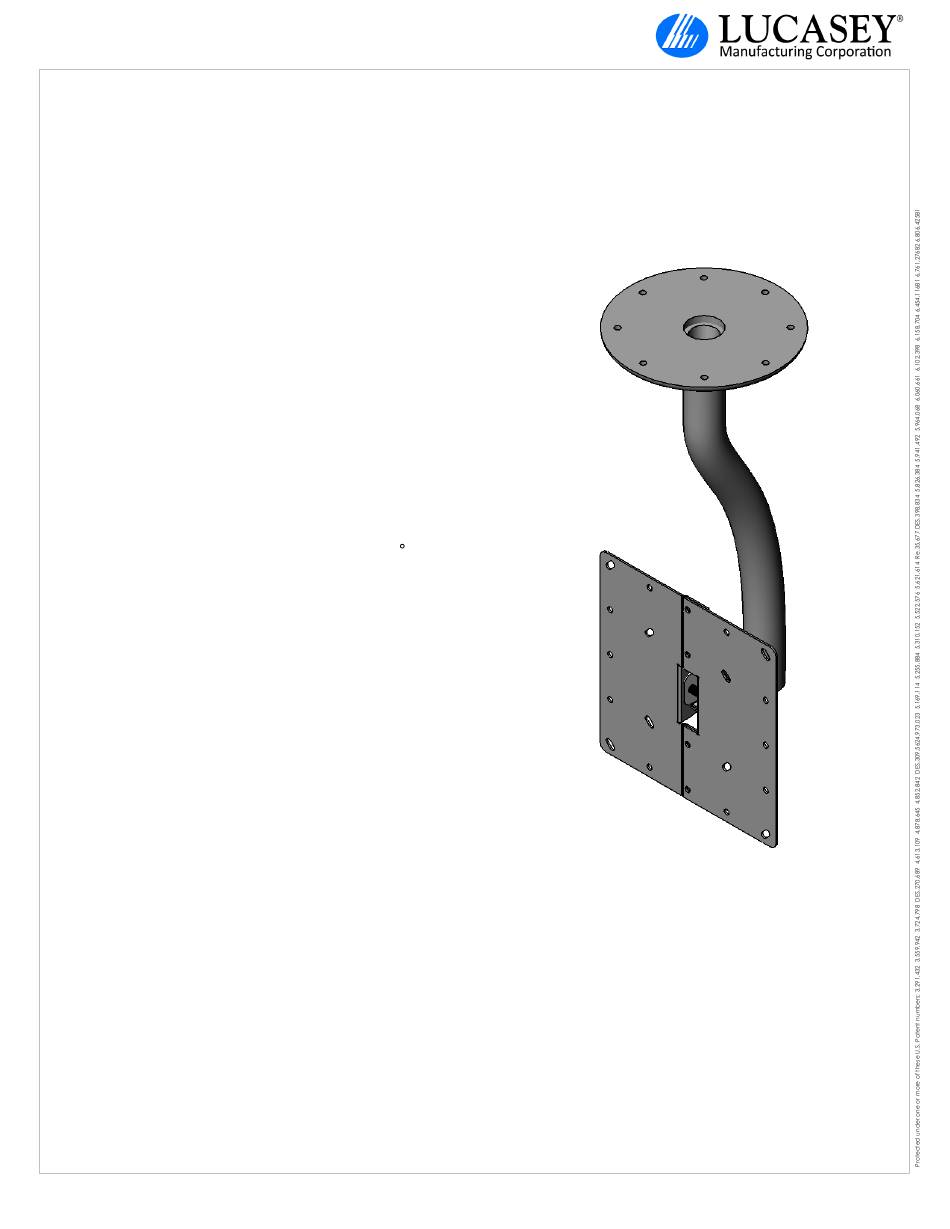

The LC200C9F Flat Screen Ceiling Mount is designed
to suspend a monitor from a round flange mounted
to structure in the ceiling.
(Other types of ceiling flanges are sold separately.)
The existing hole pattern on the front of the LC200C9F
mount allows it to be used with standard VESA®
mounting patterns up to 200mm x 200mm.
The monitors can be mounted in either portrait or
landscape viewing modes and tilted up to 45 for
the optimal viewing angle.
Our mounts are tested at four times the rated load
limit to ensure that they can hold the monitor during
seismic or other extreme loading events.
When dropping the monitor more than 36" from the
ceiling flange, we recommend using a stabilizer kit
to prevent the pipe from being able to move from side
to side. (CMASTA15 stabilizer kit is sold separately.)
Important! Please read all warnings and cautions before installing the mount.
Caution: Improper installaion of this ceiling mount may void the warranty on your monitor.
Caution: Ceiling attachment should be performed by qualified installers only, using construction methods prescribed
by authorized architects or engineers that comply to all applicable codes and standards.
The maximum weight of each monitor to be installed on the LC200C9F is 50lbs (22.7kg)
Inspect all parts to make sure there is no shipping damage. Do not install if any parts are damaged.
Please call 1-800-LUCASEY or 1-510-534-1435 if you have any questions about this installation.
LC200C9F_Ins (8/11) DOC#20070001A
Page 1 of 6
LC200C9F
Ceiling Mount
for up to 50lbs Flat Panel Screens
