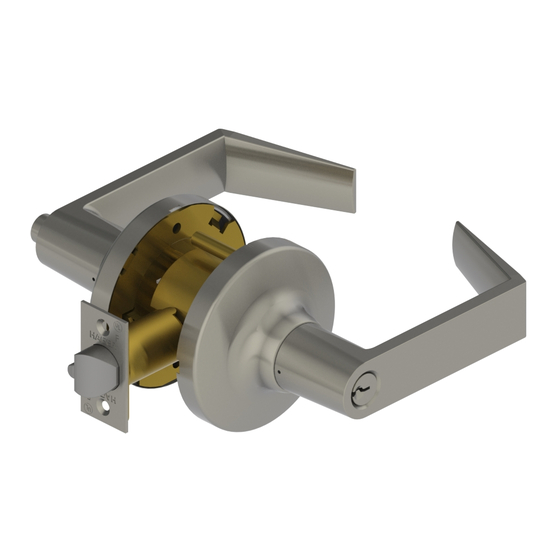

hager 3470 Timing Instructions

3470/3473/3495/3570/3573/3579/3670 LEVERSET TIMING INSTRUCTIONS

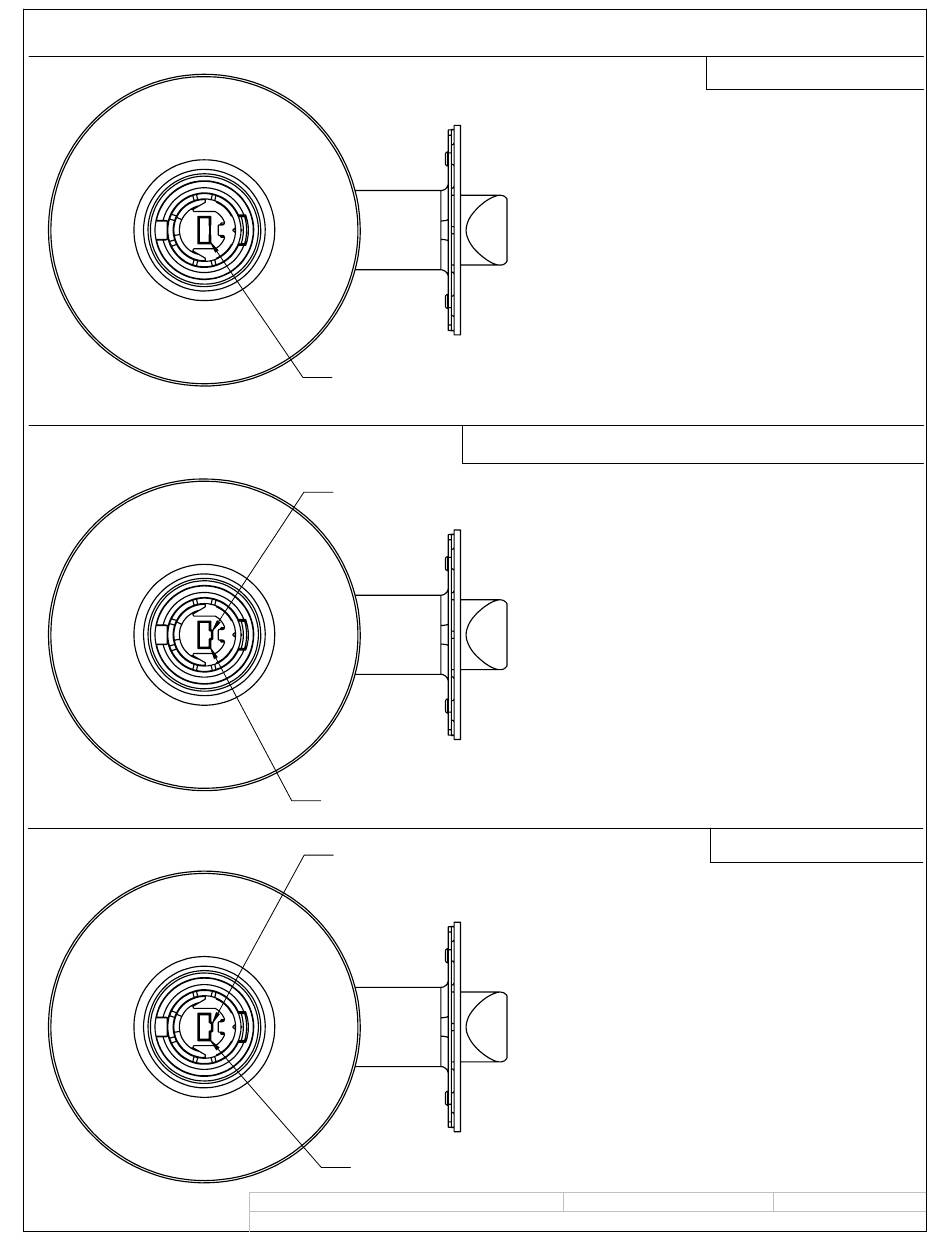

LATCH LOCKING CAM
CAM KEYWAY SHOULD FACE
LOCK EDGE OF DOOR
LATCH LOCKING CAM
CAM KEYWAY SHOULD FACE
LOCK EDGE OF DOOR
LATCH LOCKING CAM
DRAWING NO: I-LS00310
HAGER COMPANIES
139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
1. USING A SCREWDRIVER, ROTATE THE CAM
CLOCKWISE UNTIL THE CAM PROFILE LOOKS
LIKE THE PICTURE ON THE LEFT.
2. INSERT THE KEY INTO THE CYLINDER AND
ROTATE THE TAILPIECE 90 DEGREES
CLOCKWISE.
3. HOLD THE KEY IN THE POSITION FROM STEP
2 AND INSTALL THE LEVER UNTIL IT SNAPS
INTO PLACE.
3470/3570/3473/3573/3579 LEVERSET
1. USING A SCREWDRIVER, ROTATE THE CAM UNTIL
THE KEYWAY FACES THE LOCK EDGE OF THE
DOOR.
2. INSERT KEY INTO THE CYLINDER AND ROTATE
THE KEY 90 DEGREES SO THE TAILPIECE
MATCHES THE CAM PROFILE.
3. HOLD THE KEY IN THE POSITION FROM STEP 2
AND INSTALL THE LEVER UNTIL IT SNAPS INTO
PLACE.
1. USING A SCREWDRIVER, ROTATE THE CAM UNTIL
THE KEYWAY FACES THE LOCK EDGE OF THE
DOOR.
2. INSERT KEY INTO THE CYLINDER AND ROTATE
THE KEY 90 DEGREES SO THE TAILPIECE
MATCHES THE CAM PROFILE.
3. HOLD THE KEY IN THE POSITION FROM STEP 2
AND INSTALL THE LEVER UNTIL IT SNAPS INTO
PLACE.
4. REPEAT STEPS 1-3 FOR THE OPPOSITE SIDE OF
THE LOCK.
REV: 08
3670 LEVERSET
3495 LEVERSET
SHEET 1 OF 2
