PANdrive™ for Stepper

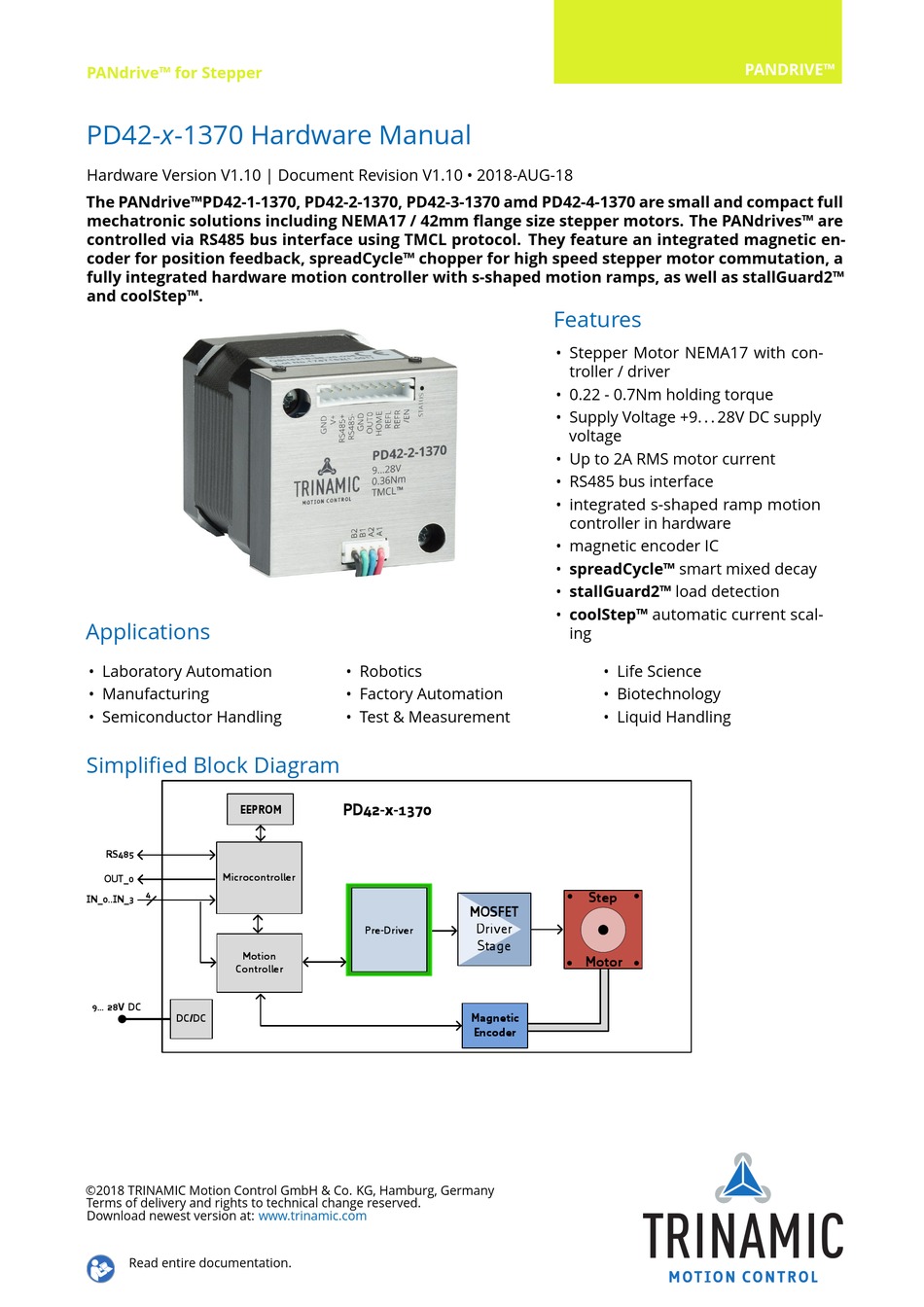

PD42-x-1370 Hardware Manual
Hardware Version V1.10 | Document Revision V1.10 • 2018-AUG-18

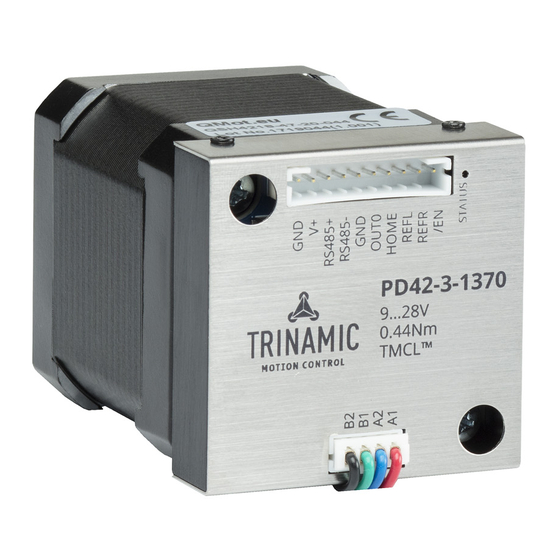

The PANdrive™PD42-1-1370, PD42-2-1370, PD42-3-1370 amd PD42-4-1370 are small and compact full
mechatronic solutions including NEMA17 / 42mm ange size stepper motors. The PANdrives™ are
controlled via RS485 bus interface using TMCL protocol. They feature an integrated magnetic en-
coder for position feedback, spreadCycle™ chopper for high speed stepper motor commutation, a
fully integrated hardware motion controller with s-shaped motion ramps, as well as stallGuard2™
and coolStep™.
Applications
• Laboratory Automation
• Manufacturing
• Semiconductor Handling
Simpli ed Block Diagram
EEPROM
RS485
Microcontroller
OUT_0
4
IN_0..IN_3
Motion
SPI
Controller
9... 28V DC
DC/DC
©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany
Terms of delivery and rights to technical change reserved.
Download newest version at:
www.trinamic.com
Read entire documentation.
• Robotics
• Factory Automation
• Test & Measurement
PD42-x-1370
MOSFET
Energy Efficient
Driver
Driver
Pre-Driver
Stage
TMC262
Magnetic
Encoder
Features
• Stepper Motor NEMA17 with con-
troller / driver
• 0.22 - 0.7Nm holding torque
• Supply Voltage +9. . . 28V DC supply
voltage
• Up to 2A RMS motor current
• RS485 bus interface
• integrated s-shaped ramp motion
controller in hardware
• magnetic encoder IC
• spreadCycle™ smart mixed decay
• stallGuard2™ load detection
• coolStep™ automatic current scal-
ing
• Life Science
• Biotechnology
• Liquid Handling
Step
Motor
PANDRIVE™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANdrive PD42-1-1370 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trinamic PANdrive PD42-1-1370

  • Page 1 Driver Pre-Driver Stage TMC262 Motion Motor Controller 9… 28V DC Magnetic DC/DC Encoder ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at: www.trinamic.com Read entire documentation.
  • Page 2: Table Of Contents

    ..........27 ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved.
  • Page 3: Features

    TMCL-IDE (PC based integrated development environment). Please see PD42-x- 1370 TMCL rmware manual for more details ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 4: Order Codes

    200mm, 10pin JST PH connector at one end, open wires at the other end) Table 2: PD42-x-1370 Cable Loom ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 5: Mechanical And Electrical Interfacing

    Figure 1: PD42-x-1370 with different NEMA17 / 42mm stepper motors (all dimensions in mm) PANdrive Overall length of unit PD42-1-1370 46.5 1 mm PD42-2-1370 51 1 mm ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 6: Stepper Motor

    Rotor inertia g cm Weight 0.22 0.24 0.35 Table 4: NEMA17 / 42mm stepper motor technical data ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 7: Integrated Encoder

    // set closed loop correction velocity DV clipping SAP 129 , 0 , 1 // Turn on closed loop ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 8 SAP 5, 0 , 800000 // set acceleration SAP 17 , 0 , 800000 // set deceleration Stop ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 9: Connectors

    Contacts: JST SPH-002T-P0.5S Wire: 0.22mm2, AWG 24 Table 5: Connector Types and Mating Connectors of the PD42-x-1370 ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 10: Power Supply, Rs485 And I/O Connector

    MOSFETs and might permanently damage them. Therefore, always switch off / disconnect power supply or at least disable driver stage before connecting / disconnecting motor. ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 11: Motor Connector

    MOSFETs and might permanently damage them. Therefore, always switch off / disconnect power supply or at least disable driver stage before connecting / disconnecting motor. ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 12: On-Board Leds

    LED is switched on, permanently. During reset to factory default values the green LED will be ashing fast. Figure 3: PD42-x-1370 LEDs ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 13: Digital Inputs Home, Stop_L, Stop_R And /Enable

    28V (positive supply voltage limit) while switched off. microcontroller TMCM-1370 Figure 5: External encoder input ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 14: Communication

    There are actually two options which can be recommended: Add resistor (bias) network on one side of the bus, only (120R termination resistor still at both ends): ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved.
  • Page 15 RS485- / RS485B pull-down (390R) pull-down (390R) Figure 8: RS485 bus lines with Pro bus™recommended line termination ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 16: Motor Driver Current

    136. . . 143 1.657 1.172 144. . . 151 1.749 1.237 152. . . 159 1.842 1.302 ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 17 In addition to the settings in the table the motor current may be switched off completely (free-wheeling) using axis parameter 204 (see PD42-x-1370 rmware manual). ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved.
  • Page 18: Torque Curves

    Figure 9: PD42-1-1370 torque vs. velocity 24V / 2A, 256 steps, open-loop 9.2 PD42-2-1370 Torque Curve Figure 10: PD42-2-1370 torque vs. velocity 24V / 2A, 256 steps, open-loop ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 19: Pd42-3-1370 Torque Curve

    Figure 11: PD42-3-1370 torque vs. velocity 24V / 2A, 256 steps, open-loop 9.4 PD42-4-1370 Torque Curve Figure 12: PD42-4-1370 torque vs. velocity 24V / 2A, 256 steps, open-loop ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 20: Functional Description

    The PD42-x-1370 with TMCL™ rmware option is supported by the PC based software development environment TMCL-IDE for the Trinamic Motion Control Language (TMCL™). Using prede ned TMCL™ high level commands like move to position a rapid and fast development of motion control applications is guaranteed.
  • Page 21: Operational Ratings And Characteristics

    RS485 Max. speed for RS485 network 1Mbit/s RS485 Table 12: Operational ratings of the RS485 interface ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 22: Abbreviations Used In This Manual

    Root Mean Square value TMCL TRINAMIC Motion Control Language Table 13: Abbreviations used in this Manual ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
  • Page 23: Figures Index

    ..PD42-x-1370 block diagram ..©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 24: Tables Index

    ..Document Revision ... ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at...
  • Page 25: Supplemental Directives

    15.5 Disclaimer: Life Support Systems TRINAMIC Motion Control GmbH & Co. KG does not authorize or warrant any of its products for use in life support systems, without the speci c written consent of TRINAMIC Motion Control GmbH & Co. KG.
  • Page 26: Collateral Documents & Tools

    In particular, this also applies to the stated possible applications or areas of applications of the product. TRINAMIC products are not designed for and must not be used in connection with any applications where the failure of such products would reasonably be expected to result in signi cant personal injury or death (safety-Critical Applications) without TRINAMIC’s speci c written consent.
  • Page 27: Revision History

    Description 1.00 2018-MAY-18 Initial version 1.10 2018-AUG-18 Notes on integrated encoder added Table 15: Document Revision ©2018 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.com...
