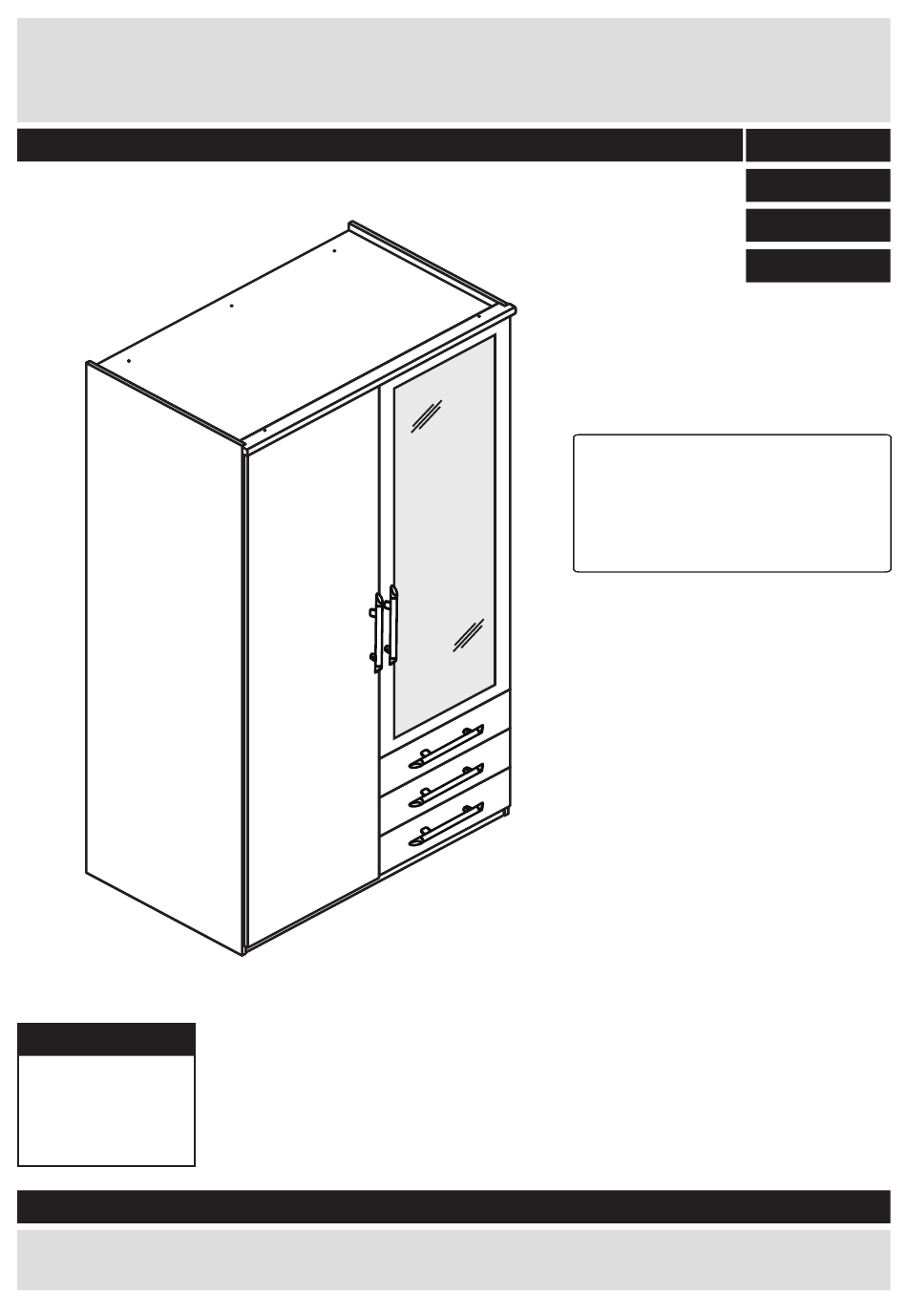

Vancouver II - 2 Door 3 Drawer Wardrobe
Assembly Instructions
Dimensions
Width - 997cm
Depth - 603cm
Height -2057cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 6400800
- Please keep for future reference
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
643/8133
643/7842
643/7914
643/8229
Issue 1 - 20/10/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Vancouver II 643/8133
Summary of Contents for Argos Vancouver II 643/8133
- Page 1 Vancouver II - 2 Door 3 Drawer Wardrobe Assembly Instructions 643/8133 - Please keep for future reference 643/7842 643/7914 643/8229 Tip : To prevent damage, we recommend that you build your unit on the carton(s) it was packed in. Dimensions Width - 997cm Depth - 603cm Height -2057cm...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the pages 2 and 3.
- Page 3 Components - Panels Please check you have all the panels listed below Door x 1 Left side Right side Mirror door small (205.6 x 58cm) (205.6 x 58cm) (151.2 x 48.8cm) (199.2 x 48.8cm) P3304 P2349 P2349 PS3305 Large horizontal Top/Bottom x 2 Upright small Small horizontal...
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 0845 6400800 Please check you have all the ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more FK1324 FK1322 FK1981...
- Page 5 Assembly Instructions Step 1 Drawer assembly x 3 Insert two small locking nuts into drawer wrap Make sure the ‘arrow’ on is pointing towards the hole in the edge of Screw 24mm locking screws into holes shown on back of drawer front Make sure 24mm locking screws are tightened...
- Page 6 Assembly Instructions Step 1 - continued Turn the drawer wrap assembly over and push onto the drawer front . Use a phillips or atblade screwdriver, that is a good t, to turn 24mm locking srew as far as it will go - more than 1/2 turn.
- Page 7 Assembly Instructions Step 2 - Step 2 - continued continued Slide top of runners back. Fix through 3rd hole of runner and pre-drilled holes of right side using 10mm xing screw drawer Fix through 1st and 7th hole of runners using 15mm screw Note: there are no pre-...
- Page 8 Assembly Instructions Step 4 Attaching plinths Allign the sides of plinth front with bottom shown and attach using 40mm screw Un nished back edge Note: there are no predrilled holes for 40mm Top side screw Note: top and bottom panels are identical.
- Page 9 Assembly Instructions Step 7 Step Insert locking screws Screw 24mm locking screw into upright small Un nished back edge Step 8 Attaching panels Two people are needed here. Position upright small onto bottom and small horizontal Insert two Large locking nuts into upright small small horizontal where...
- Page 10 Assembly Instructions Step 10 Attaching panel Two people are needed here. Position left side onto bottom/top and large horizontal Insert large locking nuts top/bottom and large horiziontal Use a screwdriver to turn locking nuts clockwise to lock. Step 11 Fitting back panel Attach foldy back to back of wardrobe with the coloured...
- Page 11 Assembly Instructions Step 12 Step Attaching pelment and L-bracket Position pelment onto as shown, x by using 40mm screws Position L-Bracket onto top as shown, x by using 15mm screw Note: there are no pre-drilled holes for 15mm screw to x on the wall, please see last page for more information.
- Page 12 Assembly Instructions Step 16 Hanging doors With help, slot hinge door onto hinge back Tighten screw shown to lock hinges in position. Repeat a and b for other door. See ‘Hinge adjustment’ in step 20 if the doors need adjusting. Before adjusting the doors, use a spirit level to check if the base of this unit...
- Page 13 Assembly Instructions Step 17 Hinge adjustment To move doors up or down: loosen screws shown and move doors to suit. Once doors are aligned, re-tighten. To move doors in or out: loosen screw shown and move doors to suit. Re-tighten screws. To move doors left or right: loosen screw shown and move doors...
- Page 14 A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
