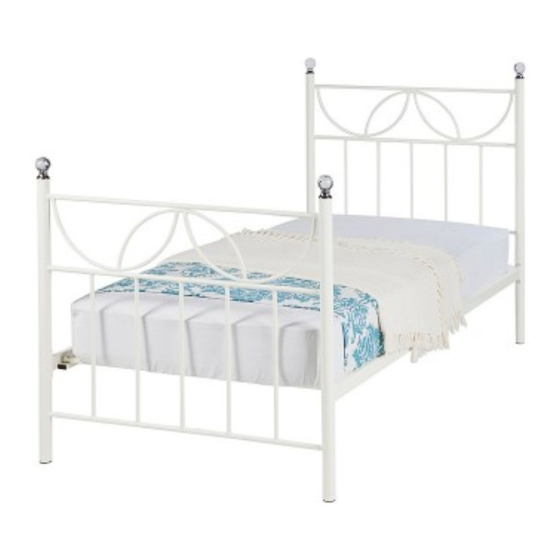

Crystal II 3ft Frame
Assembly Instructions
614/9659
- Please keep for future reference
Dimensions
Width - 99.5cm
Depth - 204cm
Height - 120 cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Issue 1 - 24/10/16
Advertisement
Related Manuals for Argos HOME Crystal II 3ft Frame
Summary of Contents for Argos HOME Crystal II 3ft Frame
- Page 1 Width - 99.5cm Depth - 204cm Height - 120 cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Issue 1 - 24/10/16...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • During assembly do not stand • To reduce • Check you have all the components and tools listed on or put weight on the product, the likelihood of the following pages.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Headboard post x 2 Headboard Frame Footboard Frame (99.5x 90cm) (dia7.5 x 43cm) (99.5 x 75cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 16mm Bolt x 4 30mm Bolt x 8 Plain washer x 8 Spring washer x 8 Plastic washer x 8...
- Page 5 Assembly Instructions Step 1 Assemble headboard Insert the finial into the headboard , tighten the finial by turning clockwise. Attach the headboard post into headboard by bolts...
- Page 6 Assembly Instructions Step 2 Insert the finial into the footboard , tighten the finial by turning clockwise. Step 3 Attach side rail headboard post footboard . Fix them by bolts ,spring washers , plain washers plastic washers as shown in the figure. Note: Do not tighten bolts until fully assembled.
- Page 7 Assembly Instructions Step 4 Insert slats to the side rails. Note: Re-tighten all the bolts. Assembly is complete. Customer Helpline: If you need help or have damaged or missing parts, call the Argos = 0345 6400800...
