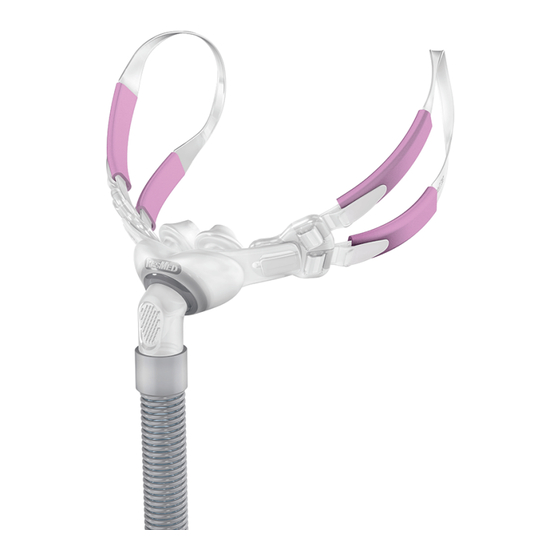

- Page 1 Swift FX Bella ™ + Swift FX for Her HEADGEAR ™ nasal pillows system User Guide English...
- Page 2 Swift FX Bella Swift FX for Her...
- Page 3 Swift FX Bella...
- Page 4 Swift FX Bella Mask components / Maskenkomponenten / Composants du masque / Componenti della maschera / Maskeronderdelen Item / Artikel / Description / Beschreibung / Part number / Désignation / Description / Descrizione / Teilenummer / Parte / Beschrijving Code produit / Onderdeel Numero parte / Onderdeelnummer Strap / Band / Sangle / Cinghia / — Band Soft sleeve / Komforthüllen / —...
- Page 5 Teilenummer / Parte / Beschrijving Code produit / Onderdeel Numero parte / Onderdeelnummer Swift FX Bella complete system / 61561 EUR 1 Swift FX Bella Komplettsystem / 61564 ANZ Masque Swift FX Bella complet / Cuscinetti nasali Swift FX Bella con tutti i componenti / Volledig Swift FX Bella-systeem...
- Page 6 Also available / Außerdem erhältlich: / Également disponible / Altri prodotti / Tevens verkrijgbaar Pillows / Polster / Coussins / 61523 (L) Cuscinetti / Kussentjes Swift FX Bella + Swift FX for Her 61580 headgear (Combination pack) / Swift FX Bella + Swift FX for Her Kopfband (Kombipackung) / Harnais Swift FX Bella + Swift FX for Her (kit combiné) / Copricapi...
- Page 7 Swift FX Bella Fitting / Anlegen / Mise en place / Applicazione / Opzetten...
- Page 8 Swift FX Bella Disassembly / Auseinanderbau / Démontage / Smontaggio / Demontage...
- Page 9 Swift FX Bella Reassembly / Zusammenbau / Remontage / Riassemblaggio / Opnieuw monteren viii...
- Page 10 Swift FX Bella Reassembly of straps (if required) / Wiederanbringen der Bänder (falls erforderlich) / Remontage des sangles (le cas échéant) / Riassemblaggio delle cinghie (se richiesto) / Opnieuw monteren van banden (indien nodig)
- Page 11 Swift FX for Her...
- Page 12 Swift FX for Her Mask components / Maskenkomponenten / Composants du masque / Componenti della maschera / Maskeronderdelen Item / Artikel / Description / Beschreibung / Part number / Désignation / Description / Descrizione / Teilenummer / Parte / Beschrijving Code produit / Onderdeel Numero parte / Onderdeelnummer Headgear right / Kopfband rechts / — Harnais droit / Parte destra copricapo / Rechterkant hoofdband Top buckle / Oberer Clip / Boucle —...
- Page 13 Swift FX for Her Item / Artikel / Description / Beschreibung / Part number / Désignation / Description / Descrizione / Teilenummer / Parte / Beschrijving Code produit / Onderdeel Numero parte / Onderdeelnummer Vent / Luftauslassöffnung / — Orifice de ventilation / Foro per l’esalazione / Ventilatieopening Elbow / Kniestück / Coude / — Gomito / Bocht Swivel ring / Drehadapterring / —...
- Page 14 Swift FX for Her Item / Artikel / Description / Beschreibung / Part number / Désignation / Description / Descrizione / Teilenummer / Parte / Beschrijving Code produit / Onderdeel Numero parte / Onderdeelnummer Pillows / Polster / Coussins / 61520 (XS) Cuscinetti / Kussentjes 61521 (S) 61522 (M) Also available / Außerdem erhältlich: / Également disponible / Altri prodotti / Tevens verkrijgbaar Pillows / Polster / Coussins / 61523 (L) Cuscinetti / Kussentjes...
- Page 15 Swift FX for Her Fitting / Anlegen / Mise en place / Applicazione / Opzetten...
- Page 16 Swift FX for Her Disassembly / Auseinanderbau / Démontage / Smontaggio / Demontage...
- Page 17 Reassembly / Zusammenbau / Remontage / Riassemblaggio / Opnieuw monteren...
-
Page 18: Intended Use
Thank you for choosing the Swift FX Bella + Swift FX for Her Headgear. The Swift FX Bella + Swift FX for Her Headgear is the first of ResMed’s Nasal Pillows Systems that offers a choice of two different types of headgear. -
Page 19: General Warnings
Swift FX Bella Swift FX for Her Notes: • These masks are not compatible for use with ResMed AutoSet CS™ 2 and VPAP™ Adapt SV devices. • SmartStop may not operate effectively when using these masks with some CPAP or bilevel devices that have this feature. - Page 20 Swift FX Bella Swift FX for Her • At a fixed rate of supplemental oxygen flow, the inhaled oxygen concentration varies, depending on the pressure settings, patient breathing pattern, mask, point of application and leak rate. This warning applies to most types of CPAP devices.
-
Page 21: Removing Your Mask
Swift FX Bella Fitting The Swift FX Bella fitting illustrations in this user guide show the sequence for obtaining the best fit and comfort when using your mask. Fitting steps Hold the pillows at your nose ensuring that the ResMed logo is on the top of the pillows facing up. - Page 22 Note: The strap and soft sleeve are not intended to be dissassembled and can be washed together, while attached to the buckle. Reassembly Refer to the Swift FX Bella reassembly illustrations in this user guide. System reassembly steps 1–2. Insert the swivel ring into the opening of the cushion. Ensure that the cushion sits between the ridges of the swivel ring.
- Page 23 Fitting steps Hold the pillows at your nose ensuring that the ResMed logo is on the top of the pillows facing up. Pull the headgear over your head. The headgear should sit midway between the ears and eyes.
- Page 24 Swift FX for Her Disassembly Refer to the Swift FX for Her disassembly illustrations in this user guide. Disassembly steps 1–2. Remove the headgear by slightly twisting each headgear arm and pulling away from the node on the pillows. 3–4. Gently push the swivel ring up and pull out of the cushion.
-
Page 25: Cleaning Your Mask In Your Home
Swift FX Bella Swift FX for Her Cleaning your mask in your home Your mask and headgear should only be handwashed by gently rubbing in warm (approximately 30°C) water using mild soap. All components should be rinsed well with drinking quality water and allowed to air dry out of direct sunlight. -
Page 26: Reprocessing The Mask Between Patients
Reprocessing the mask between patients This mask should be reprocessed when used between patients. Cleaning, disinfection and sterilisation instructions are available from the ResMed website, www.resmed.com/masks/sterilization.If you do not have internet access, please contact your ResMed representative. Troubleshooting Problem / possible cause Solution Pillows won’t seal properly, are uncomfortable or cause red marks... -
Page 27: Technical Specifications
Swift FX Bella Swift FX for Her Problem / possible cause Solution Ears are sore Swift FX Bella headgear is not Readjust the straps to ensure they fitted correctly. are not overtightened or twisted. If problem persists talk to your clinician. - Page 28 Swift FX Bella Swift FX for Her Technical specifications Sound DECLARED DUAL -NUMBER NOISE EMISSION VALUES in accordance with ISO 4871. The A-weighted sound power level of the mask is 25 dBA, with uncertainty 3 dBA. The A-weighted sound pressure level of the mask at a distance of 1m is 17 dBA, with uncertainty 3 dBA.
-
Page 29: Consumer Warranty
Keep away from rain; This way up; Fragile, handle with care; European Authorized Representative; Consumer Warranty ResMed acknowledges all consumer rights granted under the EU Directive 1999/44/EG and the respective national laws within the EU for products sold within the European Union. - Page 30 ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia. See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip Swift is a trademark of ResMed Ltd and is registered in U.S. Patent and Trademark Office. © 2017 ResMed Ltd.
- Page 32 618252/2 2017-11 SWIFT FX Bella USER ANZ - ENG 618252 Global leaders in sleep and respiratory medicine www.resmed.com...
