OM13506
Quick start Guide
Introduction to OM13506
The PCF8553DTT device is one of NXP's LCD driver integrated circuit able to drive up
to 160 segments with low-power consumption. The OM13506 demo board and its GUI
(graphical user interface) allow the user to evaluate the PCF8553DTT performance.
Step 1: GUI installation
The GUI installer can be downloaded from the following link:
http://www.nxp.com/demoboard/OM13506.html
The installer requires just only 3 clicks in order to finalize the process.
The following images illustrate the procedure.

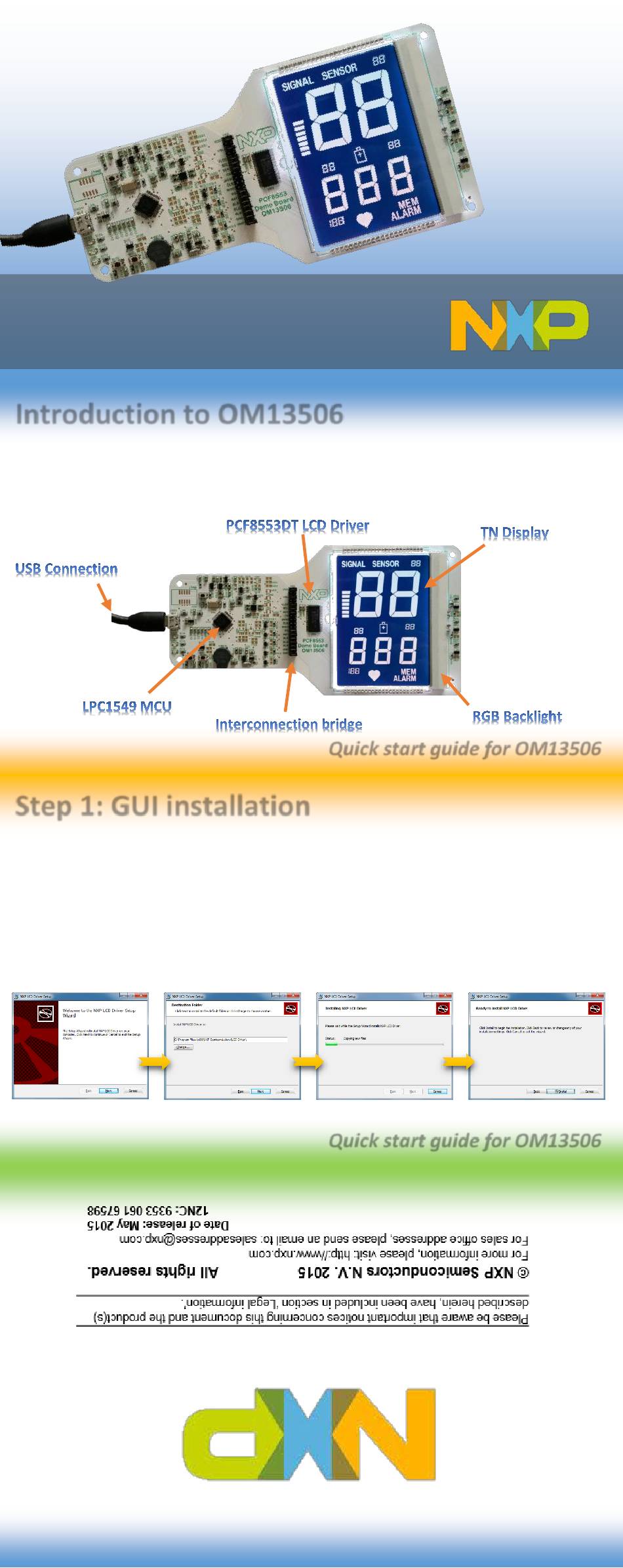

Quick start guide for OM13506
Quick start guide for OM13506
