2. Installing the product

Observe local regulations setting limits for
manual lifting or handling.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Use safety shoes when handling the
pump.
Make sure that the system in which the
pump is incorporated is designed for the
maximum pump pressure.
The pump has been evaluated for use with
water only

2.1 Location

Unilift CC 5, CC 7 and CC 9 pumps are suitable for
both stationary and portable use.
Pump type
Unilift CC 5, 50 Hz
Unilift CC 7, 50 Hz Indoors and
Unilift CC 9, 50 Hz
Unilift CC 5, 60 Hz
Indoors and
Unilift CC 7, 60 Hz
Unilift CC 9, 60 Hz
Unilift CC 5 50 Hz is intended for indoor
use only
Make sure that there are minimum 3 m
free cable above the liquid level. This limits
the maximum installation depth to 7 m for
pumps with 10 m cable and to 2 m for
pumps with 5 m cable.
Length of
Location cable
[m]
Indoors 5
10
outdoors
10
outdoors
Max. 40 °C / Min. 0 °C
Off
On O O
Min. 3 m
Max. 7 m
Min. 5 cm

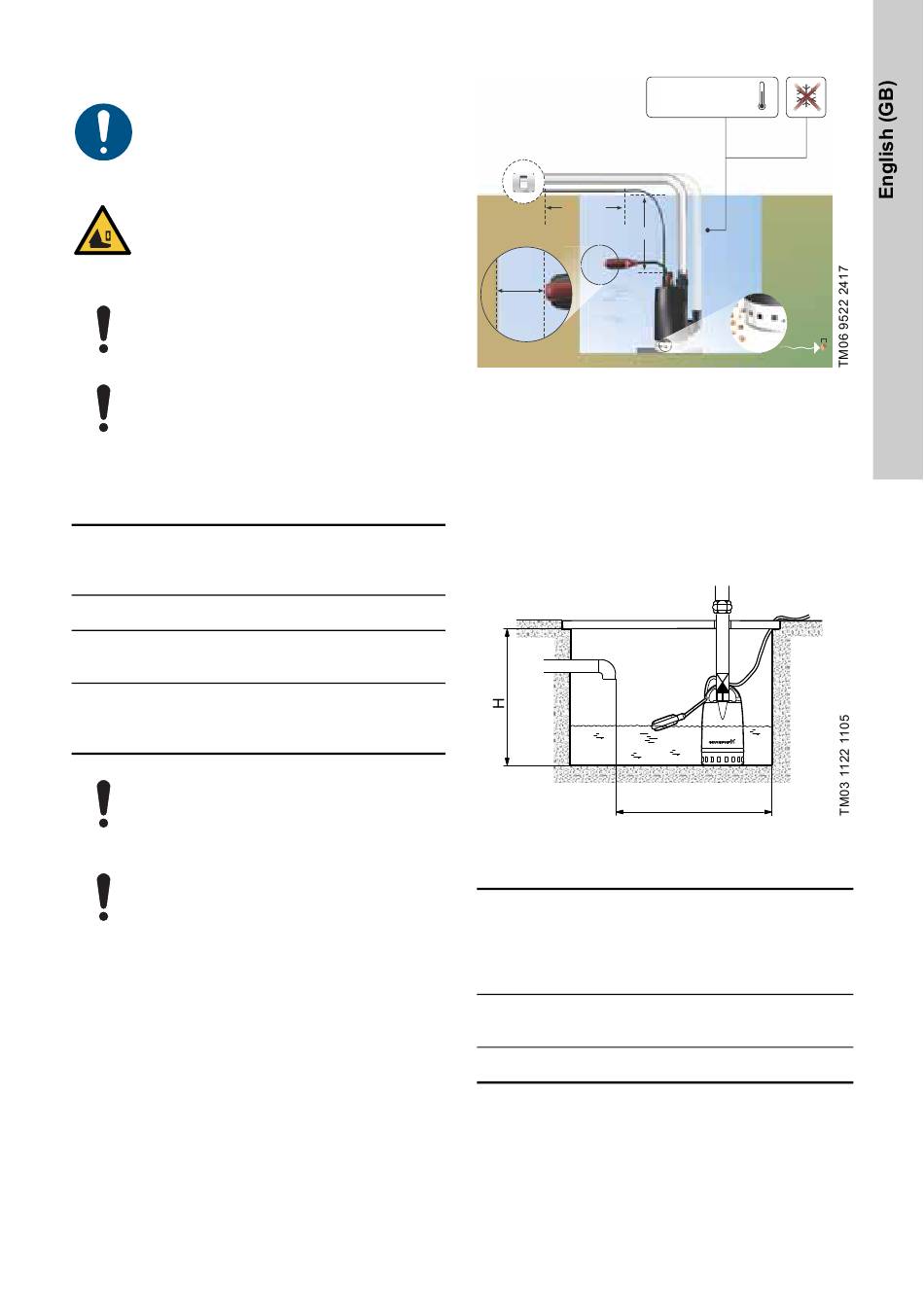

Fig. 1 Location of pump
2.1.1 Minimum space
Pumps installed without float switch require space
that corresponds to the physical dimensions of the
pump.
Minimum space with float switch
Pumps installed with float switch require 5 cm free
space between the float switch and the wall. The free
space ensures free movability of the float switch.
Fig. 2 Minimum pit dimension with float switch
Minimum pit dimension with float switch:
Height (H)
[mm]
Pump type
(top outlet
port)
Unilift CC 5
520
Unilift CC 7
Unilift CC 9 570
Max. Ø10mm
B
Height (H)
[mm]
Width (B)
(side
[mm]
outlet
port)
350 400
400 500
