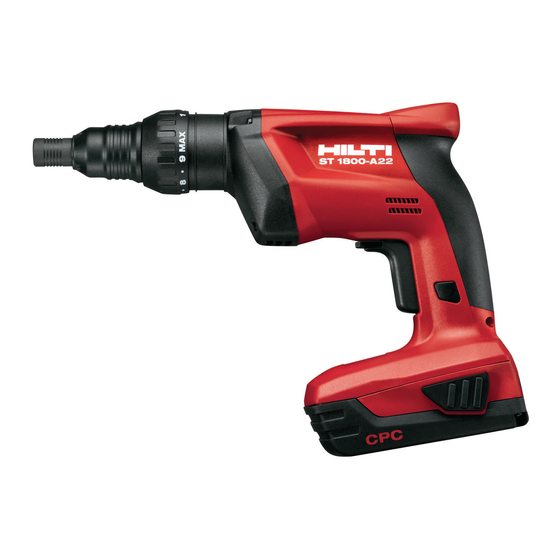

Hilti ST 1800-A22 Manual
Hide thumbs
Also See for ST 1800-A22:
- Original operating instructions (298 pages) ,
- Manual (72 pages) ,
- Operating instructions manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Hilti ST 1800-A22
Summary of Contents for Hilti ST 1800-A22
- Page 1 ST 1800A22 English Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
- Page 2 Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
-
Page 3: Information About The Documentation
Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •... - Page 4 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information Cordless metal ST 1800A22...
- Page 5 ▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 6 ▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F may cause explosion. ▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
- Page 7 English Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
- Page 8 English Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
- Page 9 Description Overview of the product English Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
-
Page 10: Technical Data
Metal construction screwdriver, STDG 19 depth gauge, STDC protective cap, SNSD 8 screwdriving bit, operating instructions. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com Liion battery display... -
Page 11: Operation
Battery Battery operating voltage 21.6 V Ambient temperature −17 ℃ … 60 ℃ Storage temperature −20 ℃ … 40 ℃ Battery charging starting temperature −10 ℃ … 45 ℃ Noise information and vibration values determined in accordance with EN 60745 The sound pressure and vibration values given in these instructions have been measured in accordance with a standardized test and may be used to compare one electric tool with another. - Page 12 ▶ Push the battery into the product from the rear as far as it will go and until it is heard to engage with a double click. Removing the battery ▶ Remove the battery. Fitting / removing the depth gauge (optional) When driving screws with a sealing washer, use a depth gauge suitable for the diameter of the sealing washer (accessory).
- Page 13 ▶ Fit the depth gauge. Using the protective cap When the depth gauge is not fitted, the guard protects the depth gauge holder from dirt and damage. ▶ Use the protective cap. Setting forward or reverse rotation An interlock prevents switching while the motor is running. The control switch is locked when the forward/reverse switch is in the middle position (safety lock).
- Page 14 ▶ Set the forward/reverse switch to the desired direction of rotation. Setting the torque ▶ Set the desired torque. Safe operation WARNING Electric shock A fastener coming into contact with a concealed electric cable may result in electric shock. ▶ Never use the depth gauge or chuck as a gripping area. Always hold the tool by the grip and/or with the hands on plastic parts of the casing (in-line grip).
- Page 15 ▶ Always hold the tool by the grip and/or with the hands on plastic parts of the casing. Switching on The metal construction screwdriver must be pressed lightly against the working surface as it will otherwise not start (for safety reasons). The running speed can be controlled smoothly right up to maximum speed by varying how far the control switch is pressed in.
-
Page 16: Care And Maintenance
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com English Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05... -
Page 17: Troubleshooting
▶ Check the tool and batteries for damage before use after long periods of storage. Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. The metal construction screwdriver is not operational. Trouble or fault... -
Page 18: Rohs (Restriction Of Hazardous Substances)
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. - Page 19 Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
- Page 20 Hilti = registered trademark of Hilti Corp., Schaan 20180727 Printed: 10.08.2018 | Doc-Nr: PUB / 5070713 / 000 / 05...
