Hilti ST 1800-A18 Operating Instructions Manual

Cordless screwdriver for metal
Hide thumbs Also See for ST 1800-A18:
Table of Contents

Advertisement

Quick Links

Download this manual
ST 1800-A18
Operating instructions
Mode d'emploi
Manual de instrucciones
Manual de instruções
en
fr
es
pt

Advertisement

Table of Contents
loading

Related Manuals for Hilti ST 1800-A18

Summary of Contents for Hilti ST 1800-A18

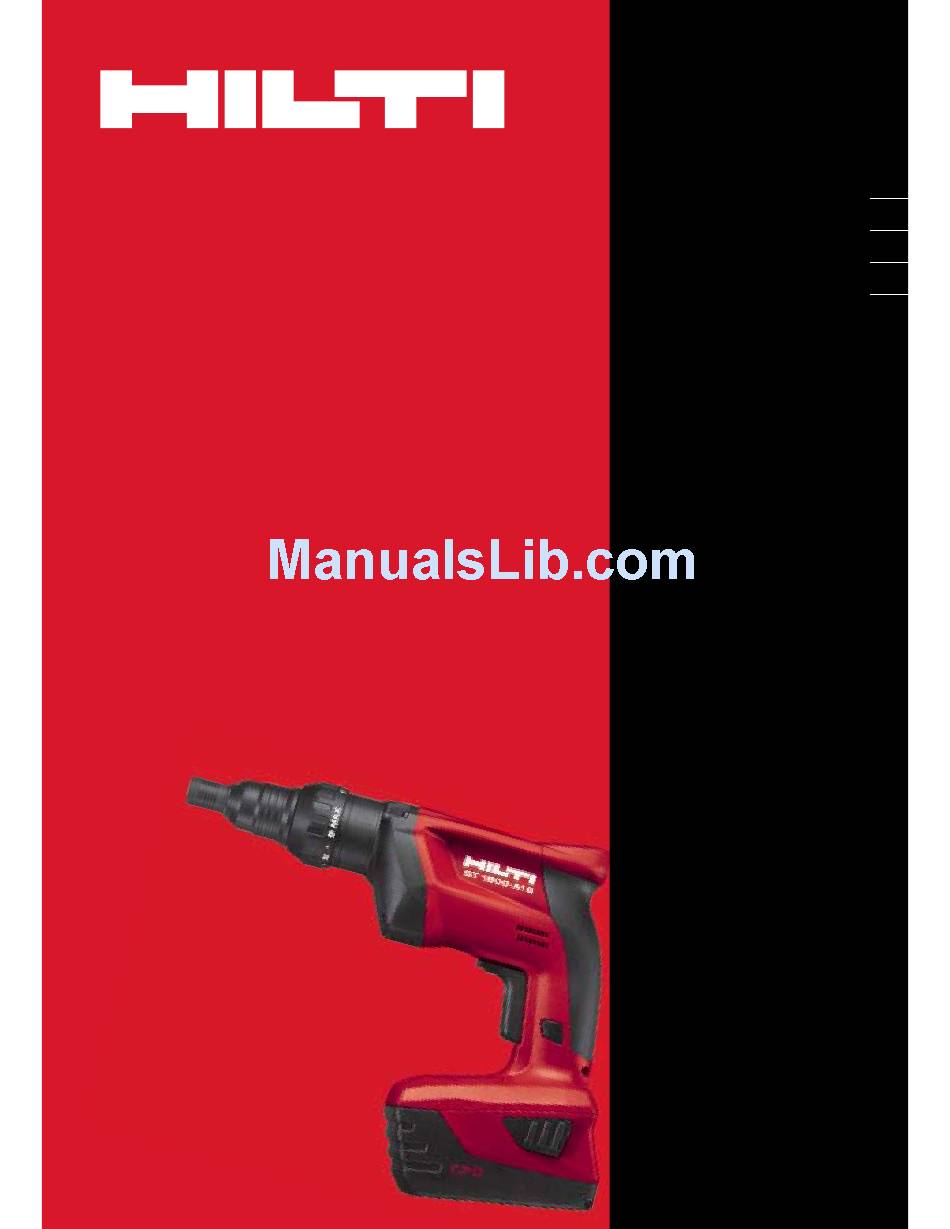

  • Page 1 ST 1800-A18 Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções...
  • Page 2 This Product is Certified Ce produit est certifié Este producto esta certificado Este produto está certificado...
  • Page 3 7 • 8 • 9 MAX...

  • Page 6: Table Of Contents

    ORIGINAL OPERATING INSTRUCTIONS ST 1800 A18 cordless screwdriver for metal 1 These numbers refer to the corresponding illustra- It is essential that the operating instruc- tions. The illustrations can be found on the fold-out tions are read before the power tool is op- cover pages.

  • Page 7: Description

    Observe the information printed in the operating instructions concerning operation, care and maintenance. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Do not use the battery as a power source for other unspecified appliances.
  • Page 8 Modification of the power tool or tampering with its parts is not permissible. The working environment may be as follows: construction site, workshop, renovation, conversion or new construction. 2.2 Chuck ¼" hex. socket 2.3 Switch Control switch for smooth speed control Lockbutton for continuous operation Forward / reverse switch 2.4 Lubrication...

  • Page 9: Accessories

    3. Accessories Designation Short designation Description Depth gauge ST DG 19 For screws with a sealing washer diameter of up to 19 mm (0.75") Depth gauge For screws with a sealing washer ST DG 22 diameter of up to 22 mm (0.87") Guard ST DC Screwdriving accessories...

  • Page 10: Safety Instructions

    5. Safety instructions (RCD) protected supply. Use of an RCD reduces 5.1 General power tool safety warnings the risk of electric shock. WARNING 5.1.3 Personal safety Read all safety warnings and instructions. Fail- ure to follow the warnings and instructions may a) Stay alert, watch what you are doing and use result in electric shock, fire and/or serious injury.
  • Page 11 c) Disconnect the plug from the power source parts. This will ensure that the safety of the power and/or the battery pack from the power tool tool is maintained. before making any adjustments, changing ac- cessories, or storing power tools. Such preven- 5.2 Additional safety precautions tive safety measures reduce the risk of starting 5.2.1 Personal safety...
  • Page 12 lead-based paints, crystalline silica from bricks, 5.2.4 Battery tool use and care concrete and other masonry products and natural a) Do not expose batteries to high temperatures or stone, arsenic and chromium from chemically- fire. This presents a risk of explosion. treated lumber.

  • Page 13: Before Use

    Change to the second battery as soon (forward/reverse switch in the middle position). Use as a drop in performance is noticed. Recharge the only the Hilti batteries approved for use with this battery immediately so that it is ready for reuse. power tool.

  • Page 14: Operation

    7. Operation The speed of the power tool can be controlled smoothly (increased from zero to maximum) by pressing the control switch gradually. To switch the tool off, release the control switch. CAUTION 7.5 Pressure transfer surface Wear protective gloves when changing insert tools as the insert tools get hot during use.
  • Page 15 Check that the screwdriving accessory is held Use a depth gauge suitable for the diameter of the securely. sealing washer (accessory). If necessary, refit the depth gauge on the tool. By adjusting the depth gauge, the screw seal can be correctly press-fitted.

  • Page 16: Care And Maintenance

    8.1 Care of insert tools Charge the battery with the Hilti charger approved for use with Li-ion batteries. Clean off dirt and dust deposits adhering to the insert NOTE...

  • Page 17: Troubleshooting

    The retaining lugs on the battery Clean the retaining lugs and check with an audible double click. are dirty. that the battery engages securely. Contact Hilti Service if the problem persists. The power tool or the battery Electrical fault. Switch the power tool off imme- gets very warm.

  • Page 18: Disposal

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.
  • Page 19 This constitutes Hilti’s entire obligation with regard parts immediately upon discovery of the defect to to warranty and supersedes all prior or contempo- the address of the local Hilti marketing organization raneous comments and oral or written agreements provided. concerning warranties.
  • Page 20 Fax: +423 / 234 29 65 www.hilti.com 439725 / B Hilti = registered trademark of Hilti Corp., Schaan W 3936 0511 00-Pos. 3 1 Printed in China © 2011 Right of technical and programme changes reserved S. E. & O.
