Summary of Contents for Hilti ST 1800
- Page 1 ST 1800 English Printed: 07.09.2016 | Doc-Nr: PUB / 5139844 / 000 / 01...
- Page 2 Printed: 07.09.2016 | Doc-Nr: PUB / 5139844 / 000 / 01...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product.
- Page 4 The technical documentation is filed and stored here: Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistraße 6 | 86916 Kaufering, DE 1.5 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel.
- Page 5 ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 6 ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 7 3 Description 3.1 Overview of the product English Printed: 07.09.2016 | Doc-Nr: PUB / 5139844 / 000 / 01...

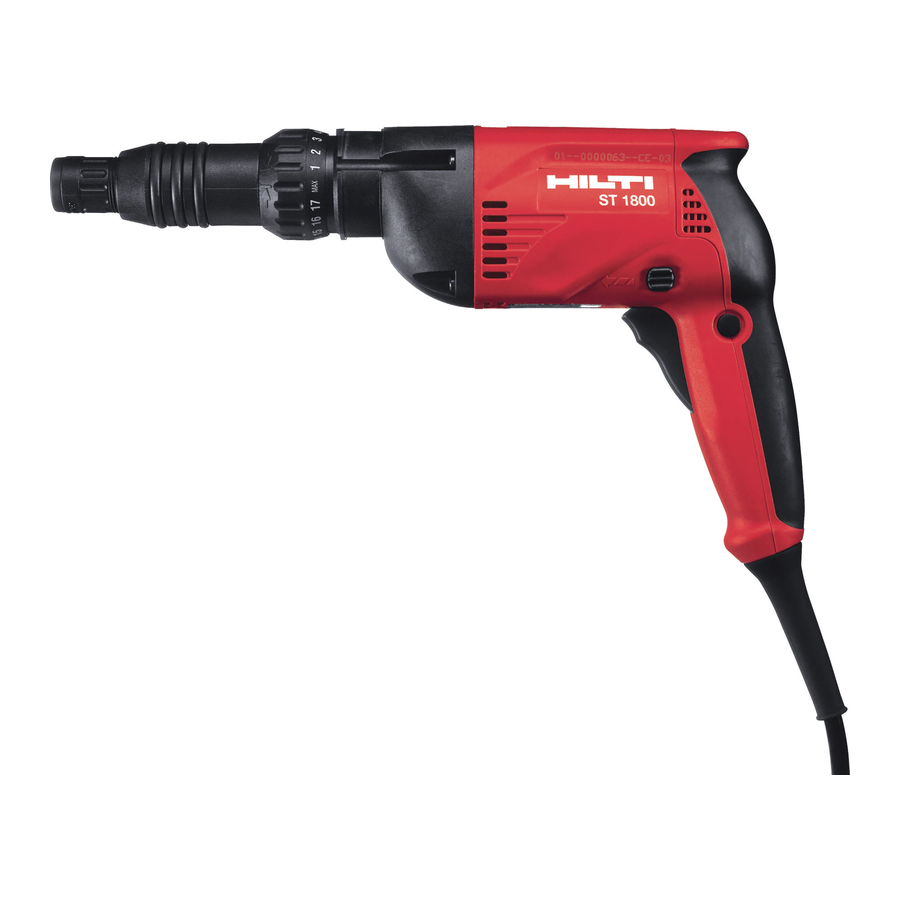

- Page 8 Chuck Control switch lock & Protective sleeve Supply cord Click connection between depth Control switch gauge and power tool Forward / reverse switch Torque adjustment Depth gauge adjustment § 3.2 Intended use The product described is a hand-held electric screwdriver for fastening profile metal sheets, metal sheets and sandwich panels in metal construction.
- Page 9 Please refer to the electric tool’s type identification plate for details of its voltage, frequency, current and input power ratings. ST 1800 Rated power input 600 W Weight 1.9 kg...
- Page 10 5 Operation 5.1 Fitting the scaffold hook 1. Push the scaffold hook onto the tool from the front. 2. Turn scaffold hook into the desired position. 3. Secure the scaffold hook by tightening the knurled thumb screw. 4. Check that the scaffold hook is fitted securely. 5.2 Switching on Note Press the control switch slowly all the way.
- Page 11 5.5 Setting the torque ▶ Turn the adjusting ring to the desired torque setting. 5.6 Setting forward or reverse rotation ▶ Set the forward/reverse switch to the desired position. 5.7 Fitting the depth gauge WARNING Electrical hazards There is a risk of electric shock if a screw is driven into a concealed electric cable and, at the same time, the bit holder or depth gauge is touched.
- Page 12 5.8 Removing the depth gauge 1. Remove the protective sleeve. 2. Pull the depth gauge forward, away from the power tool. 5.9 Changing the bit CAUTION Risk of injury. The accessory tool may be hot or have sharp edges. ▶ Wear protective gloves when using the power tool and when changing accessory tools.
- Page 13 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 14 English Printed: 07.09.2016 | Doc-Nr: PUB / 5139844 / 000 / 01...
- Page 15 Printed: 07.09.2016 | Doc-Nr: PUB / 5139844 / 000 / 01...
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan 20160830 Printed: 07.09.2016 | Doc-Nr: PUB / 5139844 / 000 / 01...
