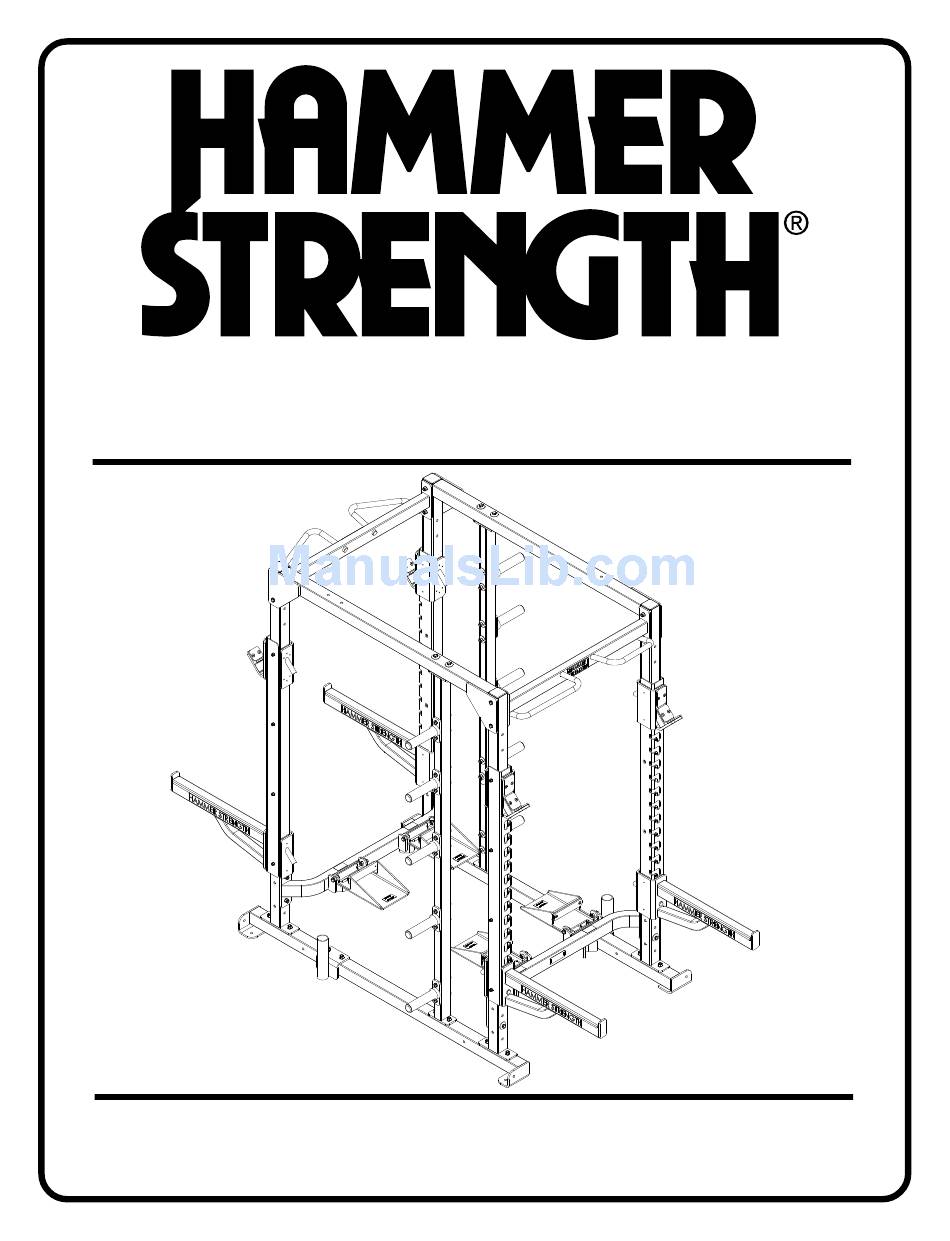

Page 1: Assembly Instructions
OLYMPIC HEAVY DUTY COMBO RACK (OHDCR) ASSEMBLY INSTRUCTIONS Revision: 02/19/07 Part # 7946901 Rev. C-3... -
Page 2: Tools Required For Assembly
DESCRIPTION PART # OHDCR BASE LEA7945001 UPRIGHT LEA7762201 UPRIGHT SUPPORT LEA7625201 CROSS SUPPORT LEA7908201 PULL-UP SUPPORT LEA7663901 WEIGHT HORN UPRIGHT LEA7908401 WEIGHT HORN LEA7587501 SWIVEL SUPPORT LEA7601701 ADJUSTABLE RACK (R) LEA7584401 ADJUSTABLE RADK (L) LEA7584501 BAR CATCH (L) LEA7622401 BAR CATCH (R) - Page 3 24 1/2 X 1-1/2” BOLT 16 1/2 X 4-1/4” BOLT 20 1/2 X 4-1/2” BOLT 21 3/8 X 3-3/4” FLAT HEAD BOLT 1/2” INT TOOTH LOCK WASHER 1/2” PLASTIC DOME WASHER 3/8” INT TOOTH 1/2” LOCK WASHER FLAT WASHER 3/8” 1/2”...
- Page 4 FIGURE 1 1/2 X 4-1/4” STEP 1: • LOOSELY assemble the four UPRIGHTS (2) to the two BASES (1) using eight 1/2 X 4-1/4” BOLTS (16), eight 1/2” PLASITC DOME WASHERS (17), eight 1/2” INT TOOTH LOCK WASHERS (19) and eight 1/2” LOCK NUTS (18) as shown in FIGURE 1.
- Page 5 1/2 X 4-1/4” FIGURE 2 STEP 2: • LOOSELY assemble the two UPRIGHT SUPPORTS (3) to the four UPRIGHTS (2) using eight 1/2 X 4-1/4” BOLTS (16), eight 1/2” PLASITC DOME WASHERS (17), eight 1/2” INT TOOTH LOCK WASHERS (19) and eight 1/2” LOCK NUTS (18) as shown in FIGURE 2.
- Page 6 FIGURE 3 1/2 X 4-1/2” STEP 3: • LOOSELY assemble the two CROSS SUPPORTS (4) and two PULL-UP SUPPORTS (5) using eight 1/2 X 4-1/2” BOLTS (20), sixteen 1/2” INT TOOTH LOCK WASHERS (19) and eight 1/2” LOCK NUTS (18) as shown in FIGURE 3.
- Page 7 FIGURE 4 1/2 X 4-1/4” STEP 4: • LOOSELY assemble the two WEIGHT HORN UPRIGHTS (6) to the BASES (1) and CROSS SUPPORTS (4) using eight 1/2 X 4-1/4” BOLTS (16), eight PLASTIC DOME WASHERS (17), eight 1/2” INT TOOTH LOCK WASHERS (19) and eight 1/2” LOCK NUTS (18) as shown in FIGURE 4.
- Page 8 FIGURE 5 1/2 X 4-1/4” STEP 5: • LOOSELY assemble the two BAR HOLDERS (15) to the BASES (1) using four 1/2 X 4-1/2” BOLTS (16), four 1/2” PLASTIC DOME WASHERS (17), four 1/2” INT TOOTH LOCK WASHERS (19) and four 1/2” LOCK NUTS (18) as shown in FIGURE 5.
- Page 9 • Securely tighten all loose frame connections made to this point.
- Page 10 FIGURE 6 3/8 X 3-3/4” STEP 6: • Assemble the four ADJUSTABLE RACKS (9 &10) as show, using sixteen 3/8 X 3-3/4” FLAT HEAD BOLTS (21) sixteen 3/8” INT TOOTH LOCK WASHERS (22) and sixteen 3/8” LOCK NUTS (23) as shown in FIGURE 6.
- Page 11 FIGURE 7 1/2 X 4-1/4” STEP 7: • Assemble the WEIGHT HORNS (7) to the WEIGHT HORN UPRIGHTS (6) using twenty 1/2 X 4-1/4” BOLTS (16), twenty 1/2” INT TOOTH LOCK WASHERS (19) twenty 1/2” PLASTIC DOME WASHERS (17) and twenty 1/2” LOCK NUTS (18) as shown in FIGURE 7.
- Page 12 FIGURE 8 1/2 X 1-1/2 BOLT” STEP 8: • Assemble the four SWIVEL SPOTTERS (8) to the two UPRIGHT SUPPORTS (3), using eight 1/2 X 1-1/2 ” BOLTS (24), eight 3/8” INT TOOTH LOCK WASHERS (19), eight 1/2” FLAT WASHERS (25) and eight 3/8” LOCK NUTS (18). See FIGURE 8. •...
- Page 13 FIGURE 9 STEP 9: • Insert BAR CATCHES (11 & 12) and the BAR SUPPORTS (13 & 14) into the desired slots of the ADJUSTABLE RACKS (9 & 10) as shown in FIGURE 9.
- Page 14 There is a risk assumed by individuals who use this type of equipment. To minimize risk, please follow these rules: 1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately. Failure to do so may result in serious injury. 2.
