Summary of Contents for Buchi B-811

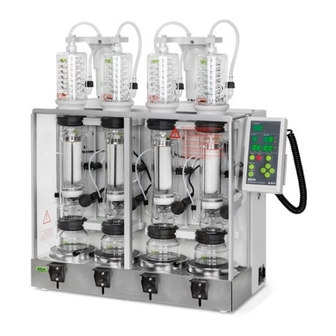

- Page 1 Extraction System B-811 Operation Manual 096675H en...
- Page 2 E-Mail: quality@buchi.com BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experience; espe- cially in respect to structure, illustrations and technical detail. This manual is copyright. Information from it may not be reproduced, distributed, or used for competitive purpos- es, nor made available to third parties.
-
Page 3: Table Of Contents
Extractions with rinsing and with drying ......26 Control panel of the Extraction System B-811 ..... 27... - Page 4 Declarations and requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 11.1 FCC requirements (for USA and Canada) ..... . . 50 B-811 Operation Manual, Version H...
-
Page 5: About This Manual
1 About this manual About this manual This manual describes the Extraction System B-811 and provides all information required for its safe operation and to maintain it in good working order. It is addressed to laboratory personnel in particular. Read this manual carefully before installing and running your system and note the safety precautions in section 2 in particular. -
Page 6: Safety
• Use with samples that react with solvent. • Use in conjunction with solvents containing peroxides. • Use in overpressure situations. • Use with other glassware than the original from Buchi. B-811 Operation Manual, Version H... -
Page 7: Warning Notices Used In This Manual
Useful tips for the easy operation of the instrument. 2 .5 Product safety The Extraction System B-811 is designed and built in accordance with state-of-the-art technology. Nevertheless, risks to users, property, and the environment can arise when the instrument is used carelessly or improperly. -
Page 8: Other Hazards
2 .5 .2 Other hazards WARNING Certain solvents in or in the vicinity of the Extraction System B-811 can form peroxides and/or are highly inflammable. • Always be aware of the explosion risk when working with hazardous substances or with substances of unknown composition. -
Page 9: General Safety Rules
Modifications to the instrument are only permitted after prior consultation with and with the written approval of the manufacturer. Modifications and upgrades shall only be carried out by an authorized Buchi technical engineer. The manufacturer will decline any claim resulting from unauthorized modifi- cations. -
Page 10: Technical Data
3 .1 Scope of delivery Check the scope of delivery according to the order number. NOTE For detailed information on the listed products, see www.buchi.com or contact your local dealer. 3 .1 .1 Standard instrument Table 3-1: Standard instrument Product... -
Page 11: Standard Accessories
8 Holder rings (black ring already 36709 mounted to the extraction chambers with the seals) 2 Sets of seals for extraction chambers 37388 (4 pieces per set, already mounted to the extraction chambers with the holder rings) B-811 Operation Manual, Version H... - Page 12 1 Water connection complete 37780 2 Hose clamps 22352 1 Silicon hose water drain 04134 4 Conducts (already mounted to the 36530 condenser) PTFE band 08607 1 Silicon hose for condenser, 250 mm, 04133 premounted B-811 Operation Manual, Version H...
- Page 13 1 Inert gas supply 37496 Cooling water hose 04113 Water connection complete 37780 2 Hose clamps 22352 1 Silicon hose water drain 04134 4 Conducts 36530 PTFE band 08607 1 Silicon hose for condenser, 250 mm 04133 B-811 Operation Manual, Version H...
-
Page 14: Optional Accessories
B-811 LSV Set of solvent beakers (4 pieces) 37276 38597 Set of glass sample tubes 37281 37563 (4 pieces) Holder basket for thimbles; to be used 37905 with holder, order no. 37904, LSV (1 piece) B-811 Operation Manual, Version H... - Page 15 Pack of paper thimbles 25 x 100 mm 41882 (6 pieces) Pack of paper thimbles 22 x 80 mm 41881 (6 pieces) Star printer 512 serial, complete 48258 Printer cable IDP-460 28468 Adapter for printer cable IDP-460 31411 B-811 Operation Manual, Version H...
-
Page 16: Technical Data Overview
37910 3 .2 Technical data overview Table 3-8: Technical data Extraction System B-811 Extraction System B-811 LSV variant Dimensions (L x H x D) 600 x 980 x 290 mm 600 x 980 x 290 mm with extended condenser holder... -
Page 17: Materials Used
50% at 40 °C linearly decreasing to 50% at 40 °C Table 3-8: Technical data (cont .) Extraction System B-811 Extraction System B-811 LSV variant Cooling water consumption 60 l / h 60 l / h Max. water pressure... -
Page 18: Description Of Function
4 .1 Instrument function There are several important components integrated into the B-811 extraction system which allow you to use the instrument for many kinds of applications in the area of solid-liquid extraction. 1. The solvent and extract only come in contact with glass and PTFE. This allows the instrument to be used for applications in the area of residue analysis (e.g. -
Page 19: Overview Of The Instrument
Fig. 4.1: Overview of the instrument a Condenser b Glass sample tube c Upper heating element d Solvent beaker e Glass valve f Lower heating element g Optical sensor Fig. 4.2: Overview of a single extraction position B-811 Operation Manual, Version H... -
Page 20: The Three Steps In General
During the rinsing process, the condensed solvent washes final traces of soluble matter from the sample and from the interior of the extraction chamber. Fig. 4.4: Rinsing B-811 Operation Manual, Version H... -
Page 21: Drying
The number of cycles and/or time defines the length of the extraction process. If the programmed number of cycles is reached and/or the extraction time is up, all valves are opened and the solvent is released into the beaker. Then the program switches to the next step. B-811 Operation Manual, Version H... - Page 22 The upper heating element is turned off. Then the program switches to the next step. a Upper heating element activated b Lower heating element activated Fig. 4.7: Procedure of Soxhlet Warm B-811 Operation Manual, Version H...
- Page 23 During the entire extraction process the glass valve is open. The optical sensor is deactivated. The sample is rinsed efficiently. When the programmed time is up, the solvent is in the beaker and the program switches to the next step. B-811 Operation Manual, Version H...
-
Page 24: Rinsing - Step 2
When the rinsing time (step 2) is expired the program switches to step 2a. The samples are lifted up automatically. Then the valve closes and the solvent evaporates, rises up to the condenser and condenses. The freshly condensed solvent is collected in the extraction chamber. When the solvent is B-811 Operation Manual, Version H... -
Page 25: Drying - Step 3 (To 9)
= 0 rinsing time = 0 Step 3 - 9 lower heating level = 0 drying time = 0 At the end of the program the solvent containing the extract remains in the beaker. B-811 Operation Manual, Version H... -
Page 26: Extractions With Rinsing And Without Drying
INERT GAS key and remains activated until the step is finished. When the program is expired the solvent is collected in the extraction chamber (automated solvent recovery) and the analyte/extract is in the beaker. B-811 Operation Manual, Version H... -
Page 27: Extractions With Rinsing And With Drying
INERT GAS key and remains activated until the step is finished. When the program is expired the solvent is collected in the extraction chamber (automated solvent recovery) and the analyte/extract is in the beaker. B-811 Operation Manual, Version H... -
Page 28: Control Panel Of The Extraction System B-811
START i STOP j SELECT k INERT GAS l Navigation m SOLVENT drain Fig. 4.12: Control panel of the Extraction System B-811 A detailed description of the function keys is given in chapter 6.1. B-811 Operation Manual, Version H... -
Page 29: Putting Into Operation
NOTE We recommend to operate the instrument under a fume hood if e.g. diethyl ether or chloroform are used. Do not operate the Extraction System B-811 under the same fume hood as the hydrolysis unit. ATTENTION To ensure the instrument safety do not place any object on top of it. -
Page 30: Mounting The Glass Parts
Make sure that there is enough solvent in the extraction chamber so that the solvent level you have set will be reached. NOTE Some samples absorb a lot of solvent. You may have to add more solvent so that the required solvent level is reached in the extraction chamber. B-811 Operation Manual, Version H... -
Page 31: Connecting To Tap Water
Nitrogen connection c Cooling water inlet Fig. 5.2: Rear view of the B-811 The water pressure may have a maximum of 6 bar (operating pressure 2 - 6 bar). The screw cap nut of the water connection has an R 1/2” standard thread. -
Page 32: Connecting To A Recirculating Chiller
(e.g. B-740) should be used if the tap water is warmer than 15 °C. The cooling water tubes pass mainly inside the B-811 to facilitate the instrument handling and to protect the tubes from damages. When using tap water usually there are no extreme temperature differences between cooling water and surrounding. -
Page 33: Connection To The Cooling Water Sensor
Fig. 5.4: Connection to the cooling water sensor To connect the cooling water sensor proceed as follows: • Turn off the B-811 and disconnect it from the power supply. • Disconnect the back board. • Disconnect the internal tube e from the sensor and close it with a cable binder. -
Page 34: Connection To The Condensers
• Connect the silicone tube (approx. 90 cm) from the rear side of the instrument a (in Fig. 5.5) to the tube adapter of the left condenser a (in Fig. 5.6). B-811 Operation Manual, Version H... -
Page 35: Operation
Solvent may be released at any time as long as a solvent beaker is in place and the heating element (position) is activated. An overview of the function key arrangement is given in chapter 4.7. B-811 Operation Manual, Version H... -
Page 36: Preparing For An Extraction
Select level 9 for petroleum ether 40/60 In case of oxygen-sensitive analytes, the gas supply must be activated by pressing the INERT GAS key The inert gas valve is automatically opened up while the step starts B-811 Operation Manual, Version H... -
Page 37: Soxhlet Warm Mode - Programming Example
If no time is entered, then the extraction is finished when all posi- tions have completed the set number of cycles If both parameters are entered (time and number of cycles), then both criteria must be fulfilled before the instrument switches to the next step B-811 Operation Manual, Version H... -
Page 38: Hot Extraction Mode - Programming Example
Select the heating level (1 - 10) using the keys Select level 6 for toluene Display HEATING (The symbol for the lower heating element lights up) blinks Select the heating level (1 - 20) using the keys Select level 13 for toluene B-811 Operation Manual, Version H... -
Page 39: Continuous Mode - Programming Example
Display H: MIN blinks Select the extraction time (0 - 99:99 h) using the keys The only stop criterion used for STEP 1 is the extraction time Display STEP 2 blinks (STEP 2 = Rinsing) B-811 Operation Manual, Version H... -
Page 40: Storing / Deleting A Program
At any time the storage of a program can be exit by pressing any other key without changing anything. • If “CLEAR” is not displayed, the program number is not used yet. • Store the program by pressing the “SELECT” key. B-811 Operation Manual, Version H... -
Page 41: Printing
6 Operation 6 .8 Printing Online documentation To keep an online log of an extraction, the B-811 must be connected to a printer. The extraction data are then printed out accordingly for each event that occurs. SOXHLET warm: Mode PROGRAM:... -
Page 42: Optical Sensor
Fig. 6.4: Sample handling The condensers can be lowered by pushing them down with both hands as shown on the picture. The system can be closed by turning the condensers clockwise. Fig. 6.5: Closing the system for extraction B-811 Operation Manual, Version H... -
Page 43: Choosing The Heating Parameters
During the extraction an addition of solvent is possible. The solvent is added through the condensation tube directly into the sample using a pipette, rinsing bottles, a dispenser or other solvent delivery devices. Fig. 6.6: Solvent addition during extraction B-811 Operation Manual, Version H... -
Page 44: Maintenance
(you may eventually need to let the parts soak for a while). After the parts have been cleaned and are completely dry, you should visually inspect the glass parts for cracks and chipping. B-811 Operation Manual, Version H... -
Page 45: Magnetic Glass Valve
Then clean the plate with a moist cloth and dry it. ATTENTION Never use scratching sponges, cleaning pads or cleaner containing abrasives to clean the heating elements as they might damage the surface. B-811 Operation Manual, Version H... -
Page 46: Holder Ring With Seal
The screwdriver is inserted at an angle of about 80° into the square slit on top of the instrument. The mechanism is released by slightly tipping the screwdriver downwards. > 80° Fig. 7.4: Emergency release mechanism B-811 Operation Manual, Version H... -
Page 47: Customer Service
Addresses of official Buchi customer service offices are given on the Buchi website under: www.buchi.com. If malfunctions occur on your instrument or you have technical questions or applica- tion problems, contact one of these offices. -
Page 48: Troubleshooting
“Corrective measure”. The elimination of more complicated malfunctions or errors is usually performed by a Buchi technical engineer who has access to the official service manuals. In this case, please refer to your local Buchi customer service agent. -
Page 49: Shutdown, Storage, Transport And Disposal
Store the instrument at a dry place. Store and transport the instrument in its original packaging. WARNING The B-811 weighs 32 kg, the B-811 LSV 32.5 kg. For this reason, manual handling of the instrument should always be done by at least two people. -
Page 50: Spare Parts
Spare parts This chapter lists spare parts, accessories, and options including their ordering information. Order the spare parts from Buchi. Always state the product designation and the part number when ordering spare parts. Use only genuine Buchi consumables and genuine spare parts for maintenance and repair to assure good system performance and reliability. -
Page 51: Declarations And Requirements
L’utilisation de cet appareil dans les zones résidentielles peut causer des interférences néfastes, auquel cas l’exploitant sera amené à prendre les dispositions utiles pour palier aux interférences à ses propres frais. B-811 Operation Manual, Version H... - Page 54 T +55 19 3849 1201 F +66 2 862 08 54 F +971 4 313 2861 F +55 19 3849 2907 bacc@buchi.com middleeast@buchi.com latinoamerica@buchi.com www.buchi.com www.buchi.com www.buchi.com We are represented by more than 100 distribution partners worldwide. Find your local representative at: www.buchi.com...
