System Architecture

When you first set up groov, the PC you use must reside on the same network (broadcast domain) as the
groov Box. In a quick and easy setup, the development PC and smartphone or tablet running View all
reside within the same domain as groov. The controller can also be on the same network, or it can be on a
separate control network as shown here. For more information, see form 2161, the
groov.

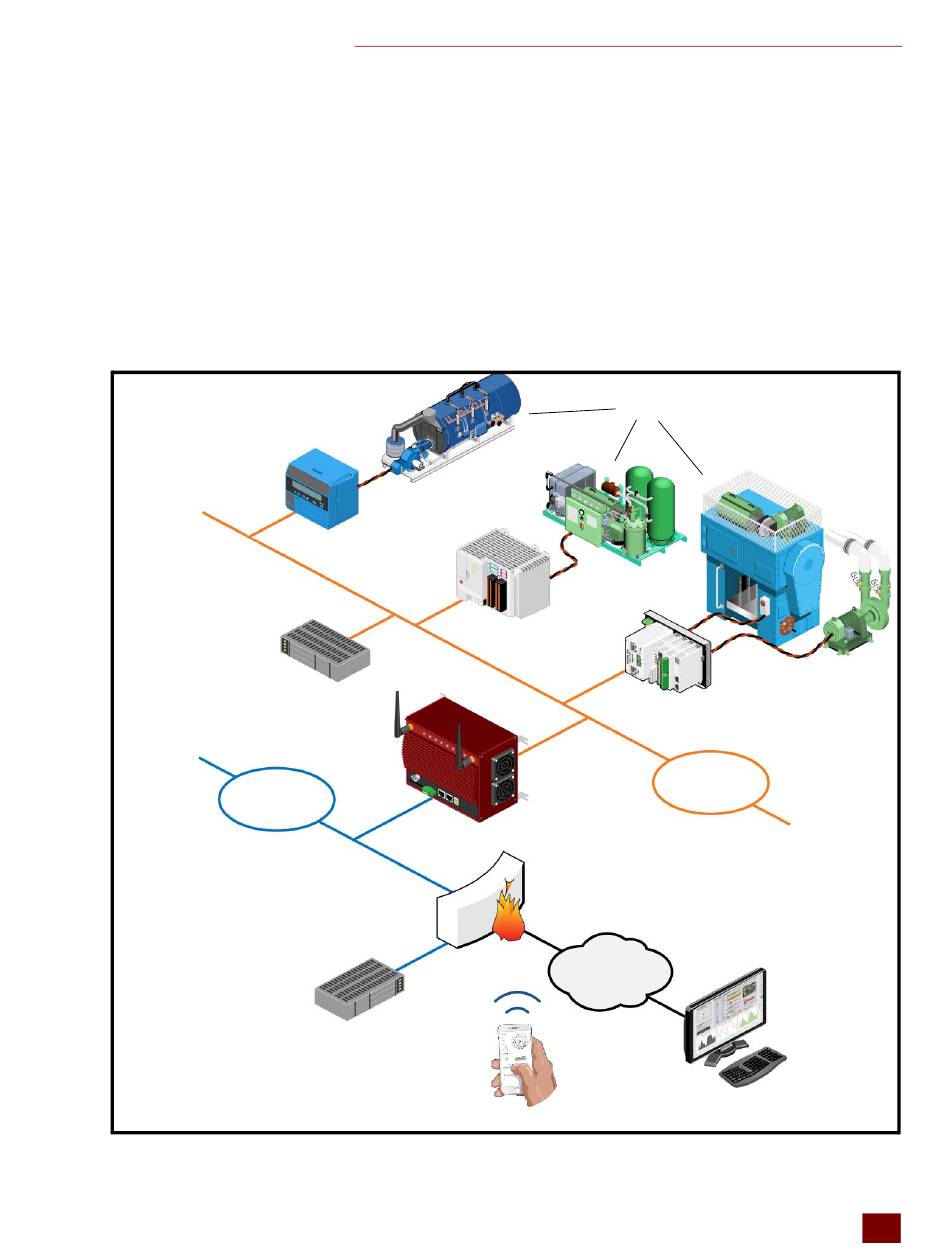

The following illustration shows groov connected to control systems from other manufacturers as
well as a SNAP PAC controller. When accessing groov outside groov's network on the Internet, a VPN
(Virtual Private Network) connection is recommended for security. The HTTPS (HTTP plus TLS/SSL) in
your browser shows that all data exchanged between your browser and groov is encrypted.
OPC UA server
(Only needed if using
another company's
automation system. Not
needed for Opto 22 or
Modbus/TCP devices.)
Enterprise
Network
Modbus/TCP devices and
controllers from multiple
manufacturers
groov Box
VPN server
Smartphone with groov View
CHAPTER 1: WELCOME
Guide to Networking
Assets
SNAP PAC controller
Control
Network
Internet
groov Box User's Guide for GROOV AT1
PC running groov
View in a web
browser
