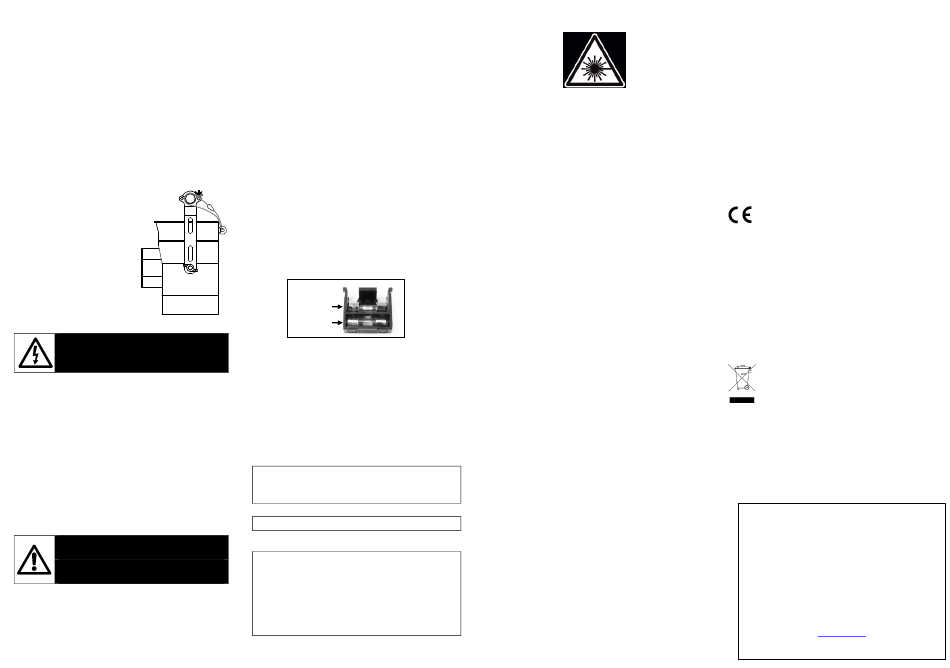

Martin THRILL Multi-FX LED Safety And Installation Manual page 2

such as a super lightweight half-coupler clamp (shown to right)
fastened to the included mounting bracket.
To clamp the fixture to a truss:
1. Check that the rigging structure can support at least 10
times the weight of all fixtures and equipment to be installed
on it.
2. Block access under the work area.
3. To install the mounting bracket, place the washers in
between the hanging bracket and the fixture. Secure with
the hand wheels. Hand tighten only.
4. Bolt a hanging clamp securely to the mounting bracket. The
bolt used must be M12, grade 8.8 steel minimum, and
fastened with a self-locking nut or a wing-nut/self-locking
washer combination.
5. Working from a stable platform, hang the fixture vertically
on the truss and fasten the hanging clamp onto the truss.
6. Secure the fixture with a safety cable as directed.
Securing with a safety cable
Secure the THRILL Multi-FX LED
with a safety cable or other
secondary attachment that is
approved for the weight of the fixture
to prevent it from falling if the
primary attachment fails. Loop the
safety cable through the secondary
attachment eyebolt and around a
secure anchoring point.
Do not loop the safety cable around
the mounting bracket only, as this
will leave the fixture unsecured if it
separates from the bracket.
AC power
For protection from electric shock, the fixture must
be grounded (earthed). The power distribution
circuit must be equipped with a fuse or circuit
breaker and ground-fault (earth-fault) protection.
The fixture has an auto-ranging power supply that accepts AC
mains power at 100-240 V at 50-60 Hz. Do not apply AC mains
power at any other voltage or frequency. To prevent damage, do
not use an external dimming system to supply power.
If a suitable IEC extension cord is obtained, additional fixtures
may connected to the MAINS OUT socket, but do not exceed a
maximum current load of 3 A. If supplying power to additional
Multi-FX LED fixtures, you may connect up to:
• Six (6) additional Multi-FX LED fixtures at 100-120 V, or
• Ten (10) additional Multi-FX LED fixtures at 200-240 V.
Maintenance
The user may carry out the maintenance operations described
below. Do not attempt to repair a defective fixture. Refer all
service to your Martin dealer or contact Martin directly for
technical support at http://www.martin.com/contact-support
Do not open the housing; there are no user
serviceable parts inside the fixture.
Disconnect the fixture from mains power
before performing maintenance.
Cleaning
The Multi-FX LED must be cleaned periodically. Excessive dust,
effects fluid, and particle buildup degrades performance, causes
overheating and will damage the fixture. Damage caused by
inadequate cleaning is not covered by the product warranty.
The cleaning schedule will vary greatly depending on the
operating environment. Inspect the fixture once a month and
clean if necessary. Inspect every 1-2 weeks if the fixture is
frequently used with effects machines, in locations with heavy
cigarette smoke, operated or stored in a dusty location, or
installed near an air duct. This procedure will allow you to assess
cleaning requirements in your particular situation.
Keep the fixture dry and use gentle pressure only when cleaning.
Work in a clean, well-lit area. Do not use any cleanser that
contains solvents or abrasives, as these can cause surface
damage.
To clean the fixture:
1. Disconnect the fixture from power and allow it to cool.
2. Vacuum or gently blow away dust and loose particles from
the outside of the fixture with low-pressure compressed air.
3. Clean the casing and lenses by wiping gently with a soft,
clean microfiber cloth. Remove stuck particles with an
unscented tissue or cotton swab moistened with distilled
water. Do not rub hard.
4. Clean the laser aperture gently with a cotton swap.
Replacing the primary fuse
If the fixture is completely dead, the primary fuse may have
blown. A spare fuse is provided in the fuse holder. To check and
replace the fuse:
1. Unplug the power cord from the MAINS INPUT socket.
2. Pull out the fuse holder.
primary
fuse
spare fuse
3. Remove the primary fuse if the wire element is broken or
melted.
4. Place a spare fuse in the primary fuse holder. Replace fuse
with same size and specified rating only.
5. Place the fuse holder in the fixture and reconnect power.
Stop using the fixture if the fuse blows repeatedly.
Laser Safety Warning Labels
The warnings shown below are displayed on this fixture. If it
becomes difficult or impossible to read, it must be replaced using
the illustration below to reproduce a new label with the sizes as
indicated, in black on a yellow background and placed where
noted.
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
Classification label placed on rear panel, 74 x 31 mm (2.95 x 1.19 in.).
LASER APERTURE
Laser Aperture Label placed on front panel, above laser aperture, 52 x 31
mm (2.05 x 1.21 in.).
Green Wavelength: 531 nm
CW/Pulsed: Pulsed
Max Peak Power: 3.80 mW
Red Wavelength: 658 nm
CW/Pulsed: Pulsed
Max Average Power: 1.50 mW
IEC 60825-1:2014
Radiation Output & Standards label placed on rear panel, 74 x 48 mm
(2.95 x 1.88 in.).
Laser Hazard Symbol label, placed on rear panel, 44 x 38 mm (1.7 x 1.5
in.)
Technical Specifications
Physical
Dimensions (L x W x H) ............. 246 x 234 x 246 mm (9.7 x 9.3 x 9.7 in.)
Dimensions with hanging bracket ............................................................
307 x 234 x 286 mm (12.1 x 9.3 x 11.3 in.)
Weight ............................................................................. 4.5 kg (9.8 lbs.)
Dynamic Effects
Multibeam effects
Color mixing ............................................................................... RGBWA
Color selection ............................................................... 36 color presets
Electronic dimming ...................................................................... 0-100%
Strobe rate .................................................................................. 0-22 Hz
Strobe and pulse effects ......... Variable speed and action, random strobe
Electronic 'shutter' effect .................................. Instant open and blackout
Strobe effects
Color .............................................................................................. White
Strobe rate .......................................................................... Fixed, 11 Hz
Special effects .. On/off, strobe effect, pulse effects, random and blackout
Laser effects
Color ...................................................................................... Red, green
Special effects .. On/off, strobe effect, pulse effects, random and blackout
Control and Programming
Control options ............................................................ DMX, stand-alone
Safety lockout switch, laser ....................... Keyed switch on/off operation
DMX channels .................................................................................. 2/16
Stand-alone trigger options ................................. Sound-trigger, auto-run
User interface .......................................... Control panel with LED display
DMX compliance ................................... ANSI E1.11, USITT DMX512-A
Optics
Multibeam and strobe
Multibeam light source ........................................ 5 x 3 W RGBWA LEDs
Strobe light source ................................................... 8 x 1 W White LEDs
Minimum LED lifetime ............. 30 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions
Laser
Green laser, power / wavelength .................................. 3.8 mW / 531 nm
Red laser, power / wavelength ..................................... 1.5 mW / 659 nm
Aperture diameter .......................................................................... 7 mm
Beam shape ............................................................................. Divergent
Maximum single-beam laser power from aperture ....................... 7.5 mW
Class: .......................................................................... 3R, US Class IIIR
Minimum laser lifetime ......................................................... 3 000 hours*
*Figure obtained under manufacturer´s test conditions
Construction
Housing ........................................................................................... Steel
Color .............................................................................................. Black
Ingress protection ............................................................................ IP 20
Installation
Mounting ............................... Adjustable bracket, surface or truss mount
Mounting points .................... Bracket for single rigging clamp, M12 or ½"
Orientation ......................................... Any (respecting laser precautions)
Location ............................ Indoor, dry locations only, overhead use only
Minimum distance above floor level ....................................... 3 m (9.8 ft.)
Minimum distance from persons ............................................ 3 m (9.8 ft.)
Connections
AC power in/thru ................... IEC male inlet/female connector, C14/C13
DMX data in/thru ..................................................................... 3-pin XLR
Electrical
AC power .................................................. 100-240 V nominal, 50-60 Hz
Fuse ................................................................................... F 3AL, 250 V
Typical total power consumption .................................................... 35 W*
Maximum fixtures on AC power throughput, 100-130 V: 6 THRILL Multi-
FX LED or 3 A
Maximum fixtures on AC power throughput, 220-240 V: 10 THRILL Multi-
FX LED or 3 A
*Power consumption figures are typical, not maximum. Allow for +/-10%
variation.
Typical power and current
110 V, 60 Hz ........................................................................0.5 A, 35 W*
230 V, 50 Hz ........................................................................ 0.3 A, 35 W*
*Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%.
Thermal
Cooling ....................................................................................... Passive
Maximum ambient temperature (T max.) ......................... 40° C (104° F)
a
Minimum ambient temperature (T min) ................................. 0°C (32° F)
a
Total heat dissipation .......................................................... 225 BTU/hr.*
*Calculated, +/- 10%, at full intensity, full white
Approvals
EU Safety EN 60598-1, EN 60598-2-17, EN 60825-1, EN 62031, EN
6247-1, EN 6247-2-13, EN 62493, IEC TR 62471-2
EU EMC ..................EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
Australia/NZ (pending) .................................................................... RCM
Included Items
Power cable, EU, IEC C13 female, molded Schuko, 1.5 m (4.9 ft.)
Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.5 m (4.9 ft.)
Mounting bracket and hardware
Set of keys for laser lockout switch
Accessories
Super lightweight half-coupler, black ................................. P/N 91602018
Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black ......... P/N 91604006
Ordering Information
THRILL Multi-FX LED ....................................................... P/N 90280117
Specifications subject to change without notice. For latest product
specifications, see www.martin.com
Disposing of this product
THRILL by Martin® products are supplied in
compliance with Directive 2012/19/EC of the European
Parliament and of the Council of the European Union
on WEEE (Waste Electrical and Electronic Equipment),
where applicable. Help preserve the environment!
Ensure that this product is recycled at the end of its life. Your
supplier can give details of local arrangements for the disposal of
Martin products.
Information subject to change without notice. HARMAN
Professional Inc. disclaims liability for any injury, damage,
direct or indirect loss, consequential or economic loss or any
other loss occasioned by the use of, inability to use or reliance
on the information contained in this document.
©2017 HARMAN Professional Inc. All rights reserved. Martin® is a
registered trademark of HARMAN Professional Inc. registered in the
United States and/or other countries. Features, specifications, and
appearance are subject to change without notice.
HARMAN Professional Inc.
8500 Balboa Boulevard • Northridge, CA, USA • 91329
www.martin.com
Document revision: A
