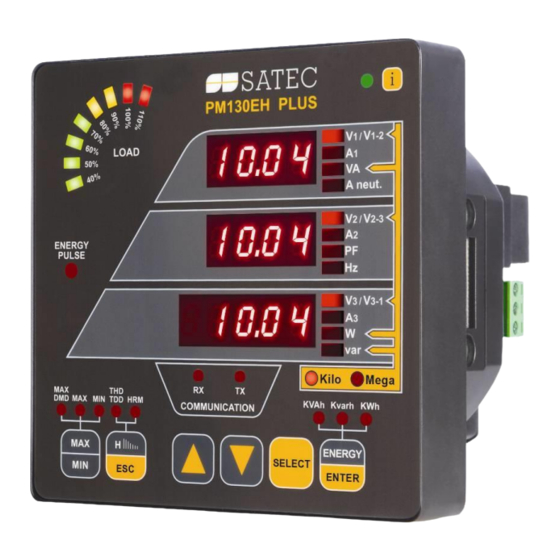

Satec PM130 PLUS Quick Start Manual

Multi-functional 3-phase power meter
Hide thumbs Also See for PM130 PLUS:
1
2
3
4

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
PM130 PLUS Quick Start Manual
This Quick Start Manual is a short guide on how to mount, connect, configure and operate the
PM130 PLUS. It is not intended to replace reading the full User Manual – and particularly the
safety precautions. The manual is available on the Product Documentation CD.
Mounting, electrical connection and settings of the PM130 shall be made in
accordance with all applicable laws and/or regulations and be performed by
authorized personnel only.
MOUNTING
Position the PM130 meter in 92×92mm square or 4" round cutout (Figure 1). If two PM130 are
positioned side by side, keep at least 150mm (5.9") between their centers to allow installation
of add-on modules (140mm/5.5" if only small form modules will be used).
Attach the PM130 unit using washers and nuts. Make sure that the unit is securely attached
into the wall or cabinet fixture.
Figure 1
BG0441 REV.A9 ENGLISH
PM130 PLUS QuickStart
www.satec-global.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PM130 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Satec PM130 PLUS

Summary of Contents for Satec PM130 PLUS

  • Page 1 This Quick Start Manual is a short guide on how to mount, connect, configure and operate the PM130 PLUS. It is not intended to replace reading the full User Manual – and particularly the safety precautions. The manual is available on the Product Documentation CD.
  • Page 2 10. Make sure the diagnostic led is off Figure 2 Figure 2C Figure Note The “optional CT wire termination” allows connection of the two wires from the CTs. They have no internal connection and their use is optional. PM130 PLUS QuickStart www.satec-global.com...
  • Page 3 OPERATION The PM130 PLUS is operated using the front panel which consists of a 3-line 7-segment display, up to 33 LEDs (depending on model) and six keys as shown below: Load bar graph (full load according to CT Diagnostic LED. Off = OK...
  • Page 4 ENTER to enter the reset menu. Select the value to be reset, press SELECT to select, then press ENTER for 5 seconds until the  notification is changed to . PM130 PLUS QuickStart www.satec-global.com Copyright © 2013 SATEC Ltd.
