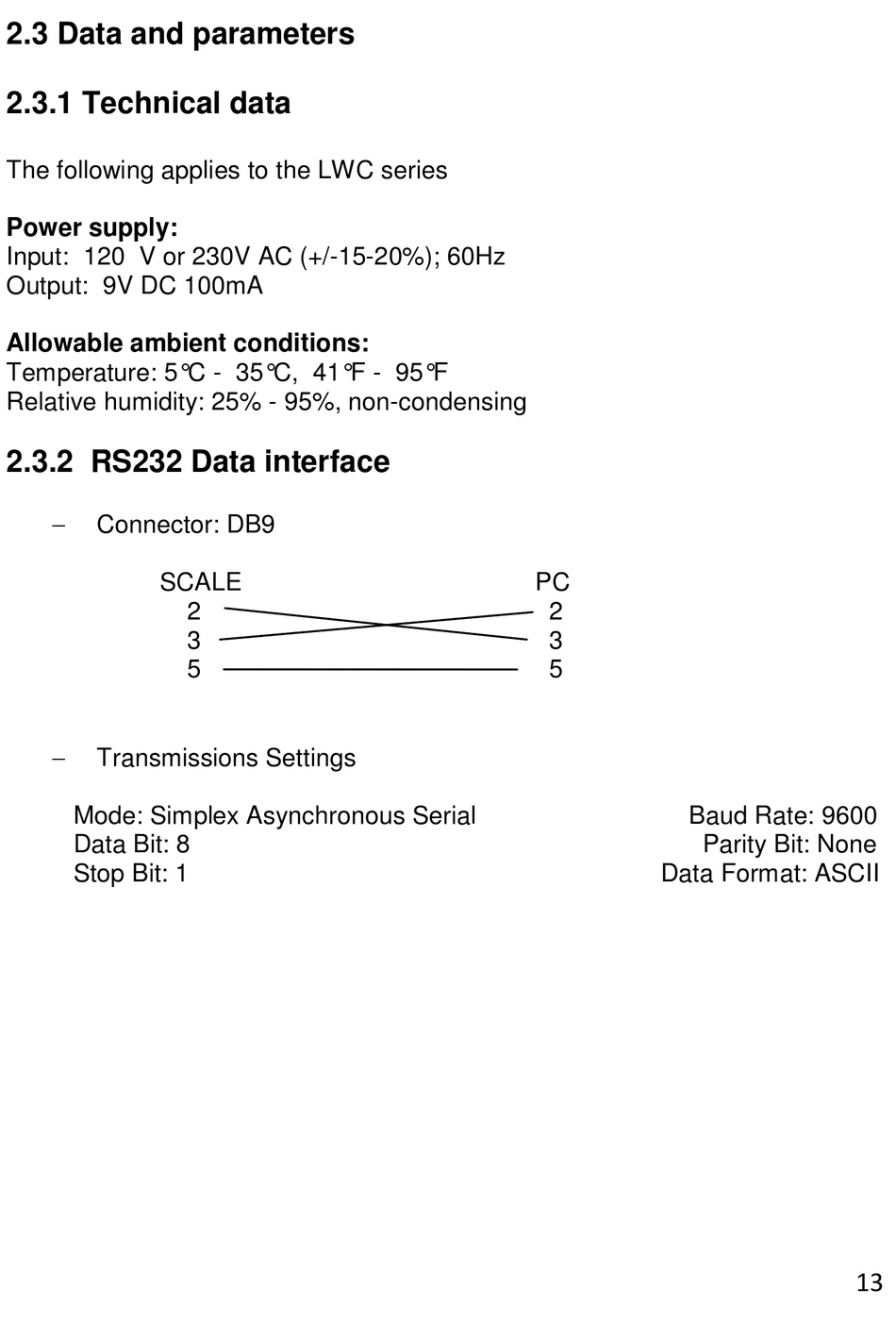

2.3 Data and parameters

2.3.1 Technical data

The following applies to the LWC series
Power supply:
Input: 120 V or 230V AC (+/-15-20%); 60Hz
Output: 9V DC 100mA
Allowable ambient conditions:
Temperature: 5°C - 35°C, 41°F - 95°F
Relative humidity: 25% - 95%, non-condensing

2.3.2 RS232 Data interface


Connector: DB9
SCALE

Transmissions Settings
Mode: Simplex Asynchronous Serial
Data Bit: 8
Stop Bit: 1
2
3
5
PC
2
3
5
Baud Rate: 9600
Parity Bit: None
Data Format: ASCII
