USER MANUAL: LPC435x-Xplorer++

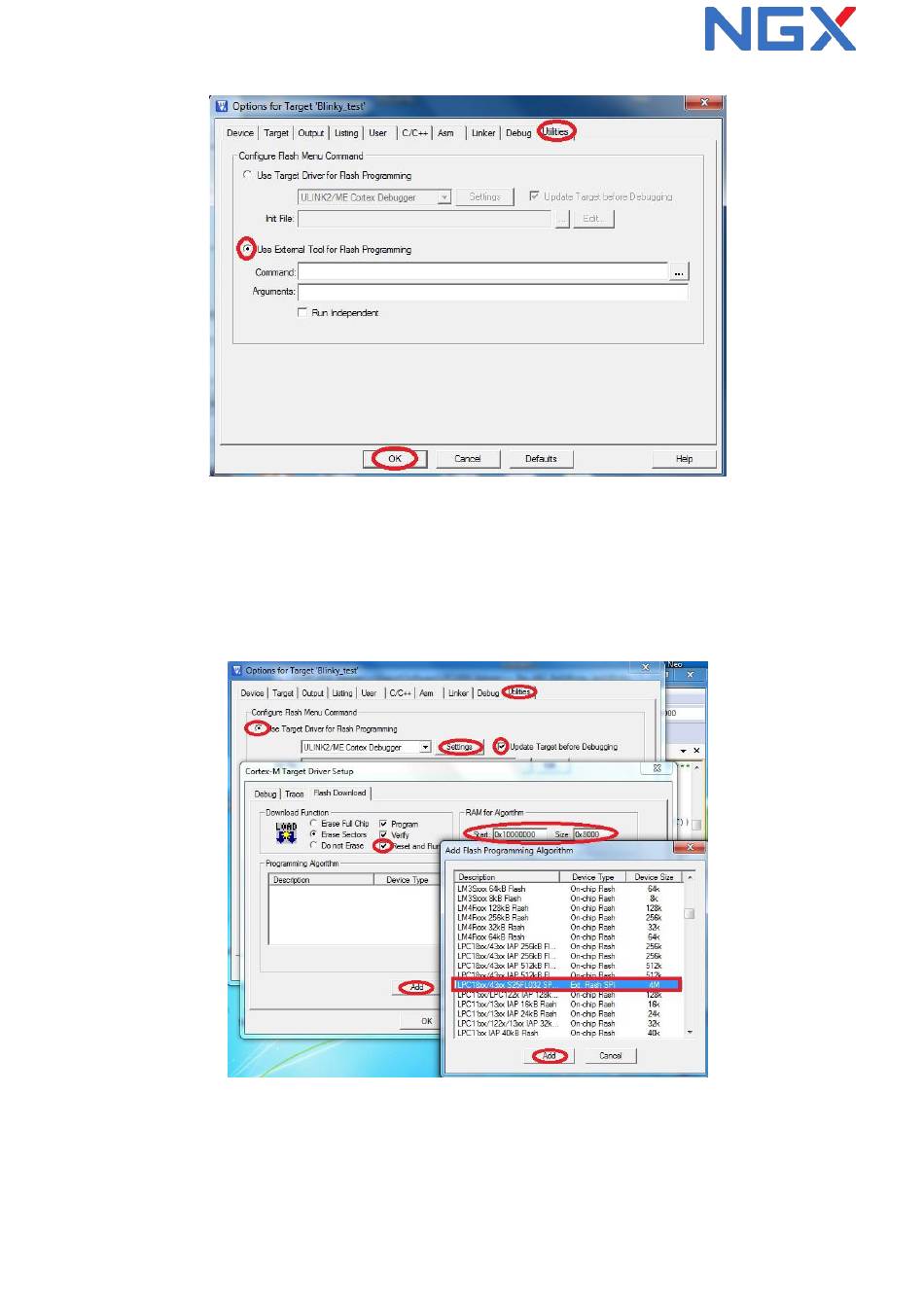

For 'External SPIFI Flash', select 'Use Target Driver for Flash Programming' as 'ULINK2/ME Cortex
Debugger' and select 'Update Target before Debugging' check box then click 'Setting Option', remove
the existing programing algorithm and click Add select 'LPC18xx/43xx S25FL032 SPIFI Flash algorithm'
as shown in the following image.
Step 23: In 'Debug Option', click on Edit... the 'Internal SRAM.ini file' will open in editor and OK.
Page | 30
Fig.47
Fig.48
