USER MANUAL: LPC435x-Xplorer++

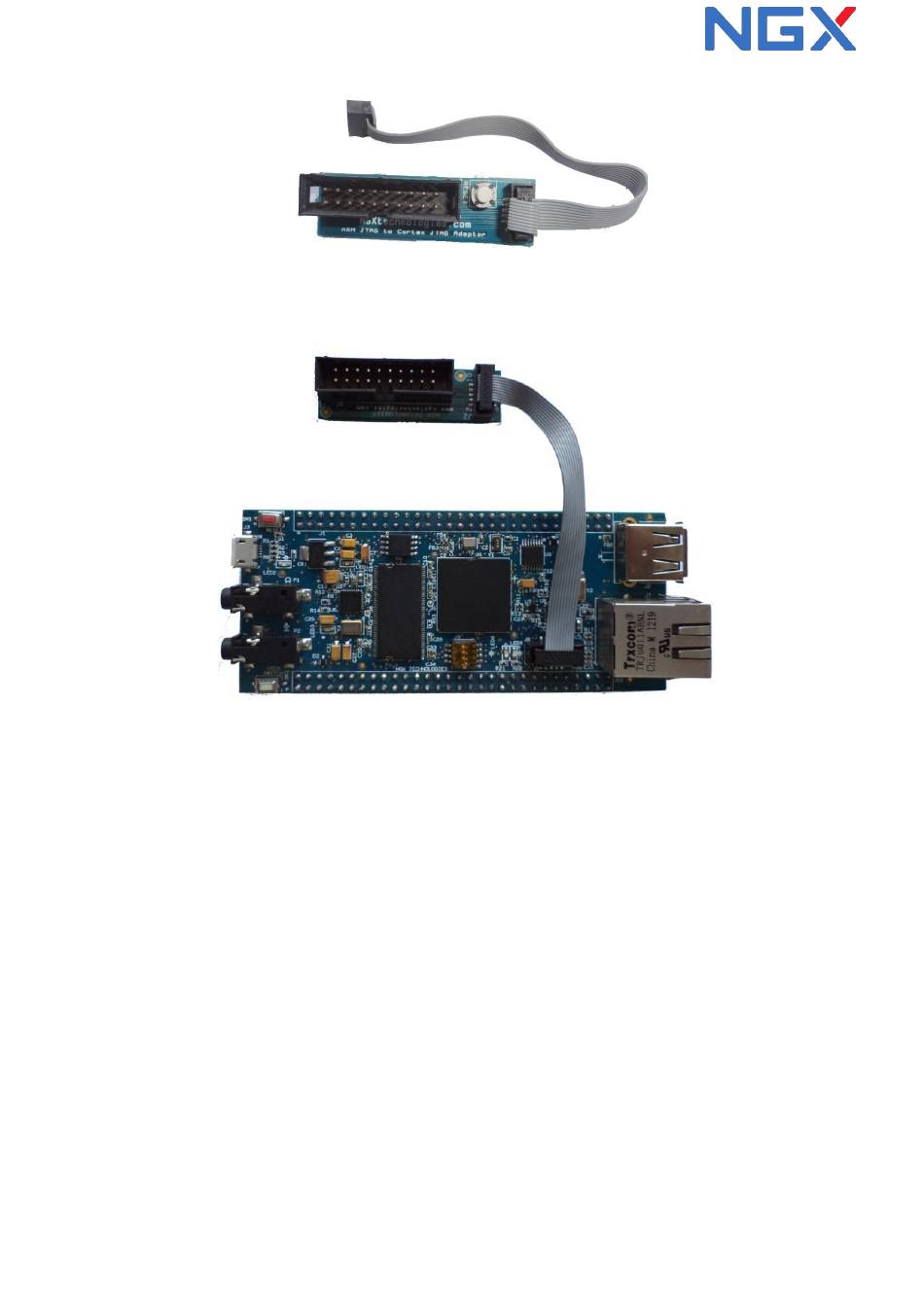

Step 2: Connect other end of 10-pin ribbon cable to '10-pin box header' of the LPC435x-Xplorer++ board
as shown in the following image.
Step 3: Now connect the 'ULINK2 20-pin' cable to '20-pin to 10-pin adapter' as shown in the following
image.
Page | 15
Fig.19
Fig.20
