USER MANUAL: LPC435x-Xplorer++

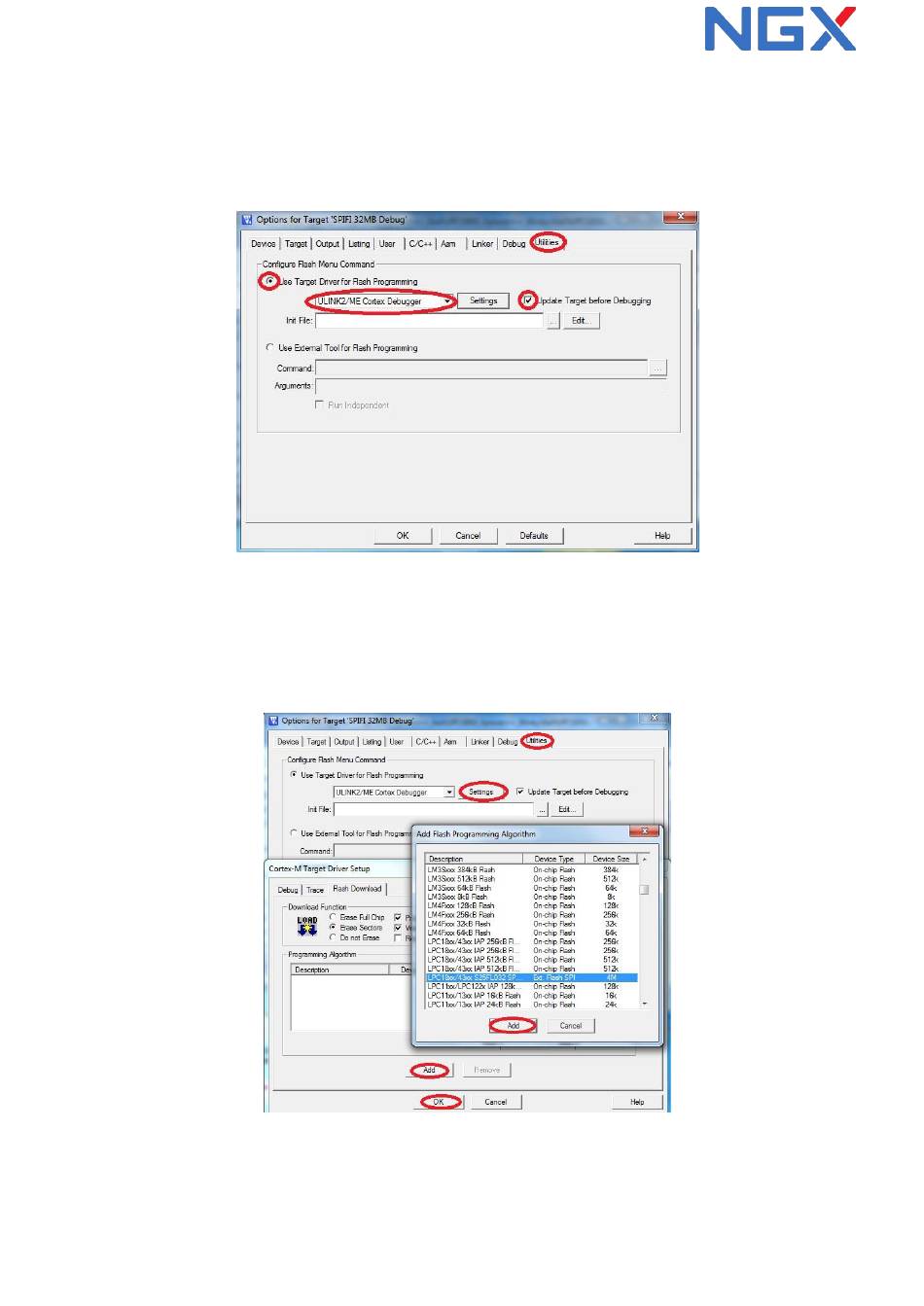

Step 2: The window opens as shown in the following image, click on Utilities and select 'ULINK2/ME
Cortex Debugger'.
Step 2: Select 'Update Target before Debugging' check box, click on 'Settings Options' and in 'CortexM
Target Driver setup' click add and select 'LPC18xx/43xx S25FL032 SPIFI programming algorithm' and
click add.
Click OK to complete the 'ULINK2/ME Debugger configuration'.
Page | 11
Fig.11
Fig.12
Fig.13
