USER MANUAL: LPC435x-Xplorer++
Option B: With ULINK2 debugger
The LPC435x-Xplorer++ board has on board '10-pin SWD/JTAG box header'; ensure that the
ULINK2/ME must have '10-pin SWD/JTAG' support for development. The ULINK2 debugger, '20-pin
to 10-pin adapter' and 10-pin ribbon cable are not a part of the LPC435x-Xplorer++ package, the user
needs to buy separately.

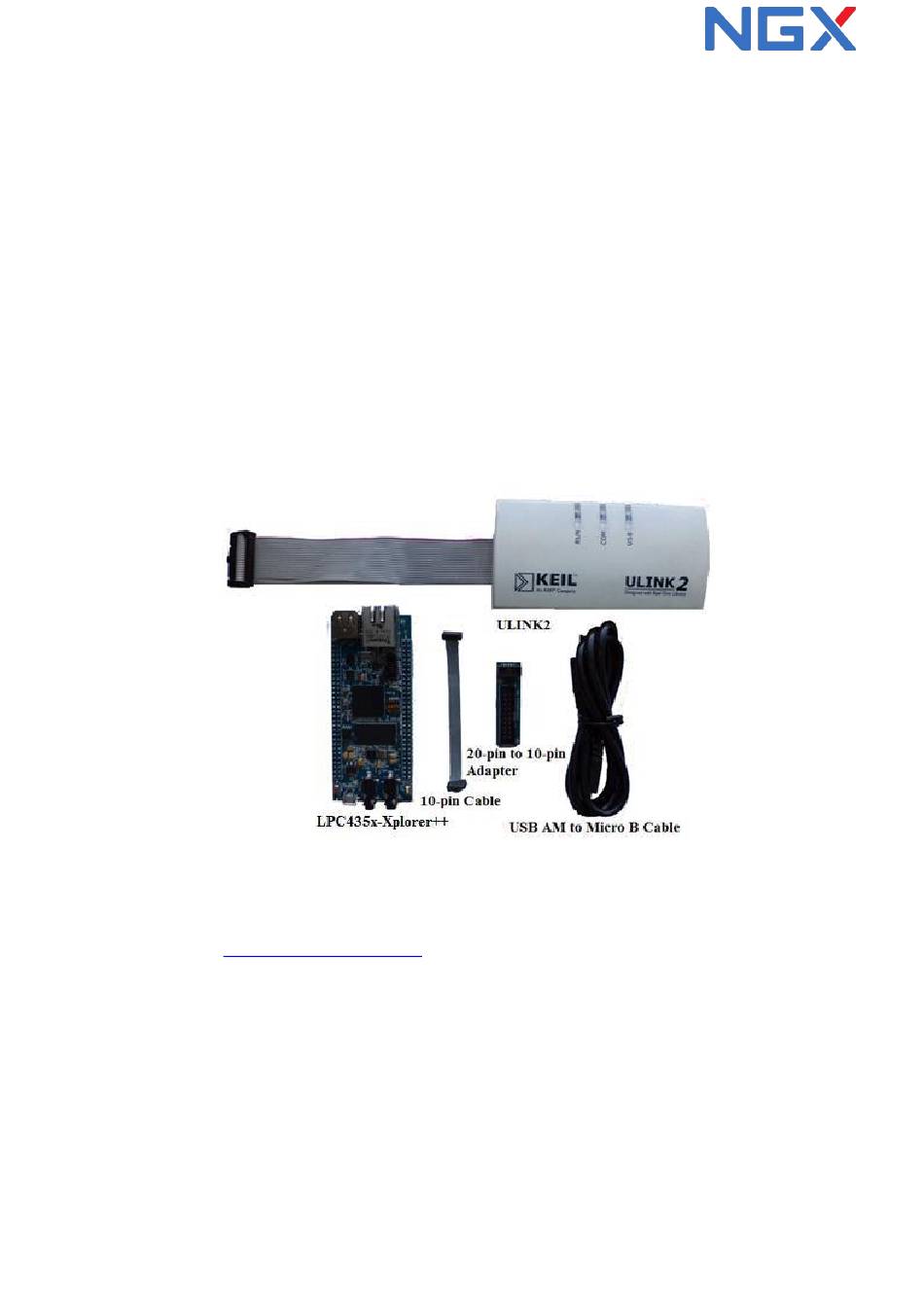

To run the KEIL examples you will need the following and the image shows the each components:
•
ULINK2
•
ARM JTAG to Cortex JTAG Adapter (20-pin to 10-pin Adaptor)
•
10-pin ribbon cable
•
LPC435x-Xplorer++ Board
•
One USB AM to Micro B cable
•
One USB type B cable
Steps to setup the ULINK2 and LPC435x-Xplorer++ Board:
(Note: Please refer keil knowledgebase article for connecting ULINK2/ME 10-pin ribbon cable to NGX
Xplorer++)
Step 1: Connect the one end of 10-pin ribbon cable to '20-pin to 10-pin adapter' as shown in the following
image.
Page | 14
Fig.18
