USER MANUAL: LPC435x-Xplorer++
2.5 Setup for ULINK2/ME and LPC435x-Xplorer++ Board
Option A: With ULINK-ME debugger

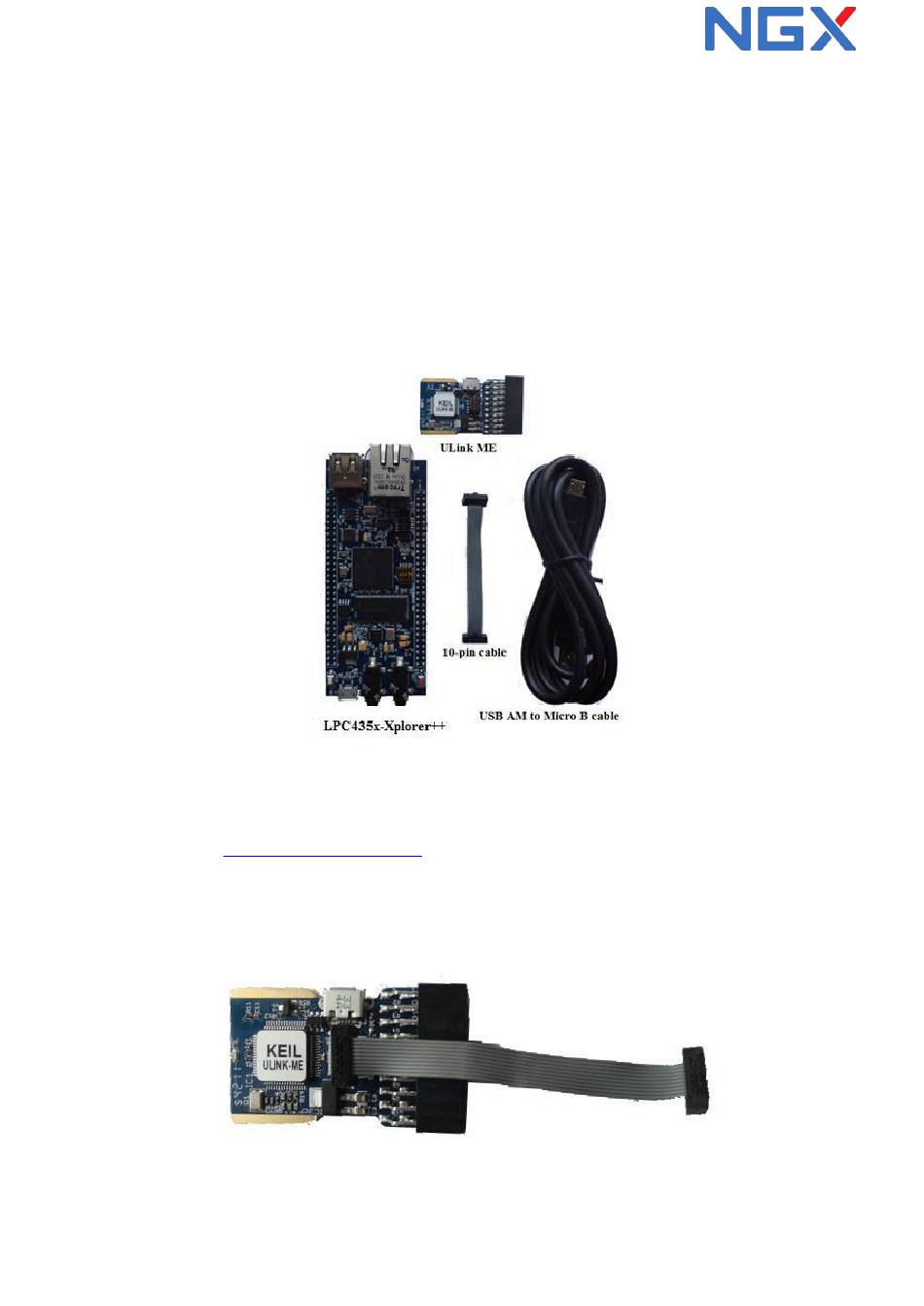

To run the KEIL examples you will need the following and the image shows the each components:
•
ULINK-ME
•
10-pin ribbon cable
•
LPC435x-Xplorer++ Board
•
Two USB AM to Micro B cable
Steps to setup the ULINK-ME and LPC435x-Xplorer++ Board:
(Note: Please refer keil knowledgebase article for connecting ULINK2/ME 10-pin ribbon cable to NGX
Xplorer++)
Step 1: Connect one end of 10-pin ribbon cable to 'ULINK-ME 10-pin box header' as shown in the
following image.
Page | 12
Fig.14
