TPS connector
PCIII USB EX
connectors
i212-411EX
stock connectors
fuel rail
connector
7

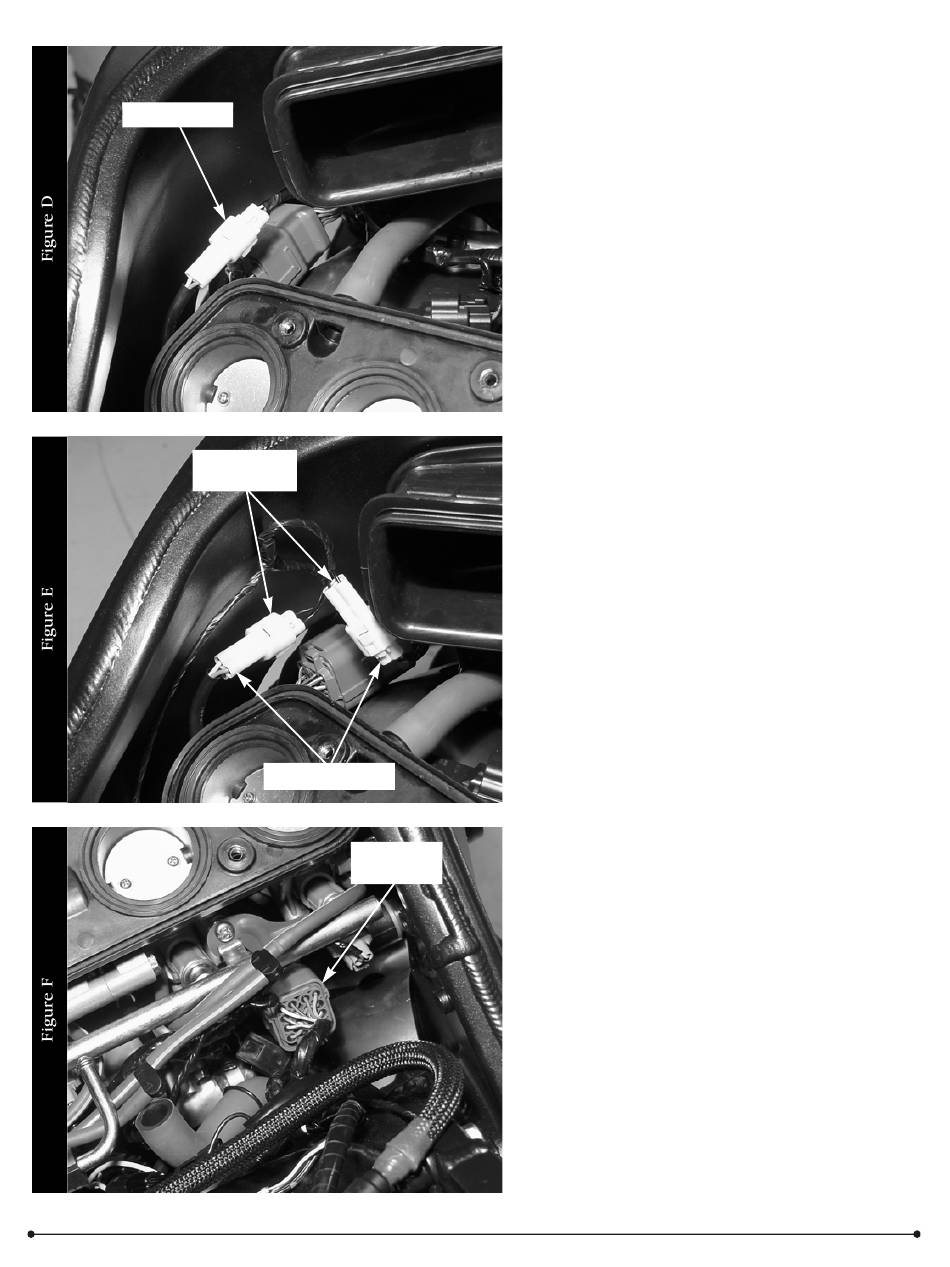

Locate the Throttle Position Sensor (TPS)
connector above the left hand side of the
engine. This is a white 3-pin connector as
shown in Figure D.
Disconnect the TPS connector.
8
Attach the white connectors from the
PCIII USB EX to the TPS stock connectors as
shown in Figure E.
9
Locate the fuel rail connector behind the
injector bodies as shown in Figure F. This
connector is brown in color.
Disconnect the fuel rail connector.
2004-2005 Kawasaki ZX10R - PCIII USB EX - 3
