Summary of Contents for Uchida Yoko AeroCut nano+

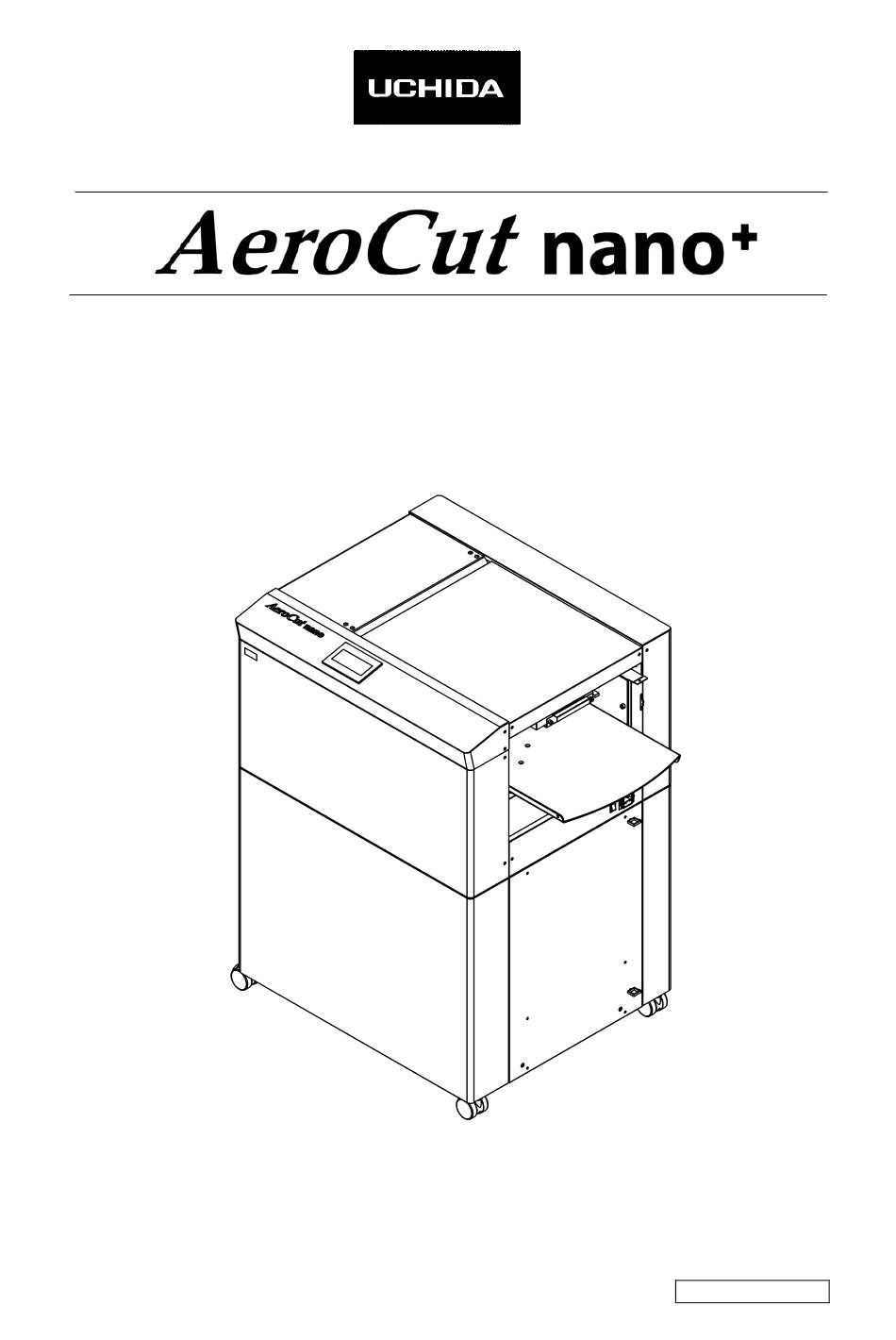

- Page 1 OPERATION MANUAL UCHIDA YOKO CO., LTD., TOKYO, JAPAN 77-782 US V2.01...
- Page 2 AeroCut nano+ OPERATION MANUAL ・Use machine only after reading the "Safety Instructions" given below carefully. ・These safety instructions are given to ensure that the machine will be used safely and properly and to prevent operators from sustaining harm and injuries. Definition of Symbols and Notes In this manual the following names and signs stand for possible dangers.
- Page 3 AeroCut nano+ OPERATION MANUAL 3. Don't touch the blade point of the cutter. There is a danger of receiving an injury. 4. Turn off the power supply beforehand when setting the feed table. There is a danger of receiving an injury. 5.
-
Page 4: Table Of Contents
AeroCut nano+ OPERATION MANUAL Contents Introduction........................5 Names of parts ....................... 5 Accessories ......................5 Touch panel ......................6 Paper weight / quality ..................... 7 Operating instructions....................8 Lock a caster brake ....................8 Turning the power on....................8 Input ........................9 Gauge (InstaSet bar) setting ................ -
Page 5: Introduction
AeroCut nano+ OPERATION MANUAL 1 Introduction 1.1 Names of parts Guillotine Safety cover Slitter head Side guide Card stacker Skew adjustment dial Feed table Inlet Power switch Cable clip Touch panel Caster Waste box Paper guide 1.2 Accessories Template Gauge (InstaSet bar) Paper guide (Small) Business card... -
Page 6: Touch Panel
AeroCut nano+ OPERATION MANUAL 1.3 Touch panel Home screen Clear Quantity Manual control Page. 13 Page. 9 Page.28 PRESET Page.16 Cutmark MANUSET Page. 9 Page.16 FLEXMODE Page.18 STOP START Page.13 Page.13 Page.13 Page.22 MANUSET screen SAVE Page.20 FLEXMODE screen SAVE Page.20 Manual control screen Inching... -
Page 7: Paper Weight / Quality
AeroCut nano+ OPERATION MANUAL 1.4 Paper weight / quality Use suitable paper stocks which weight is 32 lbs (Bond) – 130 lbs (Cover stock)[120-350g/㎡]. These paper stocks are not suitable in use. ・Papers that has heavily electric static charged. It may cause miss-feed, double feed or paper jam. -
Page 8: Operating Instructions
AeroCut nano+ OPERATION MANUAL 2 Operating instructions 2.1 Lock a caster brake 2.2 Turning the power on Power switch Electric power cord AC 100-240V 50/60Hz 100W Unlock Lock Lock Cable clip Caster Power on Home screen Opening screen... -
Page 9: Input
AeroCut nano+ OPERATION MANUAL 2.3 Input ① Enter the cut pattern. Page. 15 Home screen ② Enter the number of sheets for operation. All the sheets on the feed table will feed in case 0 is entered in Qty. Home screen ③... -
Page 10: Gauge (Instaset Bar) Setting
AeroCut nano+ OPERATION MANUAL 2.4 Gauge (InstaSet bar) setting ・Select the right InstaSet bar according to desired cut pattern. Gauge (InstaSet bar) ① Loosen the slitter head lock knobs. ② Slide the slitter head with holding the knob. Adjust the positions of the slitters so that their pins fit to the U-notches on the InstaSet bar. -
Page 11: Paper Setting
AeroCut nano+ OPERATION MANUAL 2.5 Paper setting ① Press the button on the home screen Page. 6) if the feed table is in upper position. The feed table moves down to the lower dead point. ② Flip through the sheets well before you put them on the feed table. -
Page 12: Stacker And Waste Box Settings
AeroCut nano+ OPERATION MANUAL 2.6 Stacker and Waste box settings Business card partition Stacker end Card stacker Waste box Long stacker Put the long stacker in the storage underneath the waste box while not in use. ・Change the settings of the stacker according to the cut pattern. Business card Sheet Post card... -
Page 13: Start
AeroCut nano+ OPERATION MANUAL 2.7 Start Home screen ・ After processing the entered number of sheets in , the machine stops automatically. ・Do not open the Safety cover ( Page. 5) while the machine is running. Machine will stop immediately. 2.8 Stop Home screen (While Running) ・... -
Page 14: Power Off
AeroCut nano+ OPERATION MANUAL 2.10 Power off Home screen ・Make sure that the machine is stopped. ・Return to the Home screen. ・Turn off the Power switch. -
Page 15: Cut Pattern Input
AeroCut nano+ OPERATION MANUAL 3 Cut pattern input 3.1 Outline ① ― PRESET is a series of cut patterns that are already stored in the machine. Template) ② ― In MANUSET mode, user programs can be created and stored into the machine. ③... -
Page 16: Preset
AeroCut nano+ OPERATION MANUAL 3.2 PRESET Home screen ① Press PRESET. ② Press the size of the original sheets. ③ Press the cut size. ④ The machine recalls the preset pattern and automatically returns to the home screen. 3.3 MANUSET Home screen ①... - Page 17 AeroCut nano+ OPERATION MANUAL ③ Press the number to change the value. The values that can be changed and the limits are as shown in the figure below. Front margin size [inch] It doesn't make the first cut if 0 is entered. Paper size [inch] Cut size [inch] Back margin [inch]...
-
Page 18: Flex Mode
AeroCut nano+ OPERATION MANUAL 3.4 FLEX MODE ① Press FLEX MODE. Home screen ② FLEX mode is an operation mode where you can input up to 20 actions per page. This allows the machine to finish jobs which MANU SET cannot finish, such as multiple sizes of cards from a page and pass through pages without any actions. - Page 19 AeroCut nano+ OPERATION MANUAL ・ The figure below is an example which will explain how to input values. ③ ⑤ ⑦ ⑨ Paper size ② ① ④ ⑥ ⑧ ⑩ Back margin Cut-mark Position Feed direction Input content ④ Press the OK .Confirm Cut pattern as inputted and returns to the home screen. If an error message is displayed.
-
Page 20: User Program Save
AeroCut nano+ OPERATION MANUAL 3.5 User program save ・ 40 of MANUSET user data can be stored. ・ 40 of FLEX MODE user data can be stored. ・ SAVE/READ procedures are same in each mode. ① Can store the contents of the MANUSET (FLEX MODE) Press the SAVE. MANUSET screen FLEX MODE screen ②... - Page 21 AeroCut nano+ OPERATION MANUAL ④ This message will be shown if SAVE was pressed. Then press OVERWRITE and save data. User program detail screen ⑤ Saved user data can be deleted with a press of CLEAR. User program detail screen...
-
Page 22: User Program Read
AeroCut nano+ OPERATION MANUAL 3.6 User program read ① Can store the contents of the User data. Press the JOB. Home screen ② Select either PRESET data or FLEXMODE data. ③ Press the button of the name you wish to retrieve. User program selection screen ④... -
Page 23: Adjustment
AeroCut nano+ OPERATION MANUAL 4 Adjustment 4.1 Adjustments on the paper feed section ・Adjustments are required when the machine is likely to feed double or skew. Home screen Manual control screen SPEED screen ① ④ ⑥ ② ⑤ ③ ① VACUUM Default １... - Page 24 AeroCut nano+ OPERATION MANUAL ③ SIDE BLOW Default １ ２ ３ ４ ５ ６ ７ ８ ９ １０ Reduce skew Reduce double feed Easy to feed Thin paper might be bent and fed. In this case, turn down the side blower. Empty feed may occur when paper is heavy.
- Page 25 AeroCut nano+ OPERATION MANUAL ⑥ Sensitivity of Double feed sensor Default D FEED D FEED D FEED D FEED HIGH High sensitive Low sensitive ・If the machine detects double feed even with a single sheet, lower the sensitivity of the Detection area detection sensor.
-
Page 26: Speed Change
AeroCut nano+ OPERATION MANUAL 4.2 Speed change SPEED screen Fast Slow ・In case of finishing thick paper, slow down the speed. ・If finished sizes are inaccurate or inconsistent, there is a possibility that the running speed is too fast. Slow down the speed. ・Note. -
Page 27: Feed Size Adjustment
AeroCut nano+ OPERATION MANUAL 4.4 Feed size adjustment Slit position Feed size ・Adjust through MANUSET screen. Page. 16 Feed direction 4.5 Slit position adjustment Slitter head ・Adjust the positions of the slitter heads Gauge by moving the gauge (InstaSet bar). (InstaSet bar) ・The gaps between the slitter heads are not adjustable. -
Page 28: Manual Control
AeroCut nano+ OPERATION MANUAL 5 Manual control 5.1 Manual control screen MANUAL CONTROL screen Home screen Inching ・ Feed roller will rotate. ・ Guillotine will move once. ・ Feed table will move. 5.2 Paper jam MANUAL CONTROL screen ① Enter MANUAL CONTROL screen, press <... -
Page 29: Error Messages
AeroCut nano+ OPERATION MANUAL 6 Error messages Safety cover ( Page.5) might be open. Make sure to close the Safety cover closed. Timeout error 1 Paper was not fed within a set time period. Check the paper feeder. Timeout error 2 Paper did not pass through within a set time period. - Page 30 AeroCut nano+ OPERATION MANUAL Paper remains inside the machine. Remove the paper. Overload error 1 Cutting did not complete within a set time period. Remove the paper remaining inside the machine. Overload error 2 An overloading error occurred at the feed table.
- Page 31 AeroCut nano+ OPERATION MANUAL Final cutting measurement error Correct the final cutting measurement to exceed the value specified below. Leading edge margin and cut mark margin warning Correct the measurement so that the leading margin becomes larger than the cut mark margin. Cutting measurement error Correct the cutting measurement to fit in the value range below.
- Page 32 AeroCut nano+ OPERATION MANUAL FLEX MODE input error 2 Make sure for the first cut line must be 0.785” or shorter from the edge of the paper. If you want to cut off 0.785” or more, please cut off 0.785” or less at first and then cut off again and again.
-
Page 33: Troubleshooting
AeroCut nano+ OPERATION MANUAL 7 Troubleshooting 1. Papers are not fed well. ・Turn up Upper suction ( Page. 23~25) ・Turn up Side blow ( Page. 23~25) ・Shorten the PAPER FEED WORK TIME. i.e. less than 1.0 ( Page. 23~25) ・Check if the paper guides on the feed table hold sheets too tight. ・Make sure that the paper edges are not curled or waved. - Page 34 AeroCut nano+ OPERATION MANUAL 5. Cut skewing ① Make sure that the stock is put on the feed table correctly. ( Page.11) ② Check whether the skewings are consistent or inconsistent. If skewings are consistent : + Make the skewing adjust via the skew adjustment dial. ( Page.25) + Set the paper guides without play.
-
Page 35: Product Specifications
AeroCut nano+ OPERATION MANUAL 8 Product specifications Specifications Slitter 4 sets (6 slitter blades) Guillotine 1 set Maximum paper size 13” x 19” Minimum paper size 8.25” x 8.25” Minimum work size 3.5” x 2” 32 lbs (Bond) – 130 lbs (Cover stock) Paper weight (120-350g/㎡) ±0.125”... - Page 36 If this “Operation Manual” is stained or lost, make contact with the distributor or our salesman or customer service section to ask for a new operation manual after making sure of its contents. When ordering consumables or parts, be sure to specify the machine model. UCHIDA YOKO CO., LTD., TOKYO, JAPAN...
